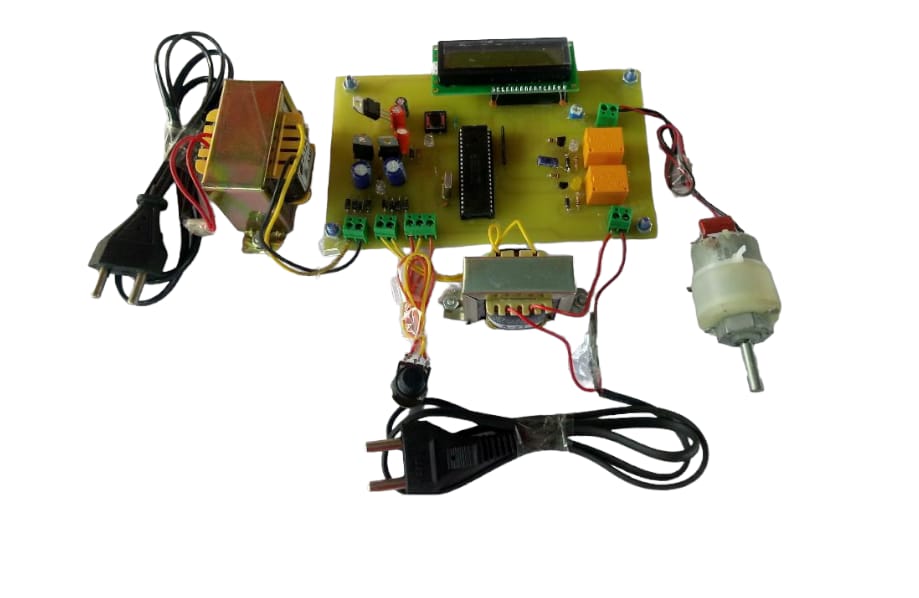

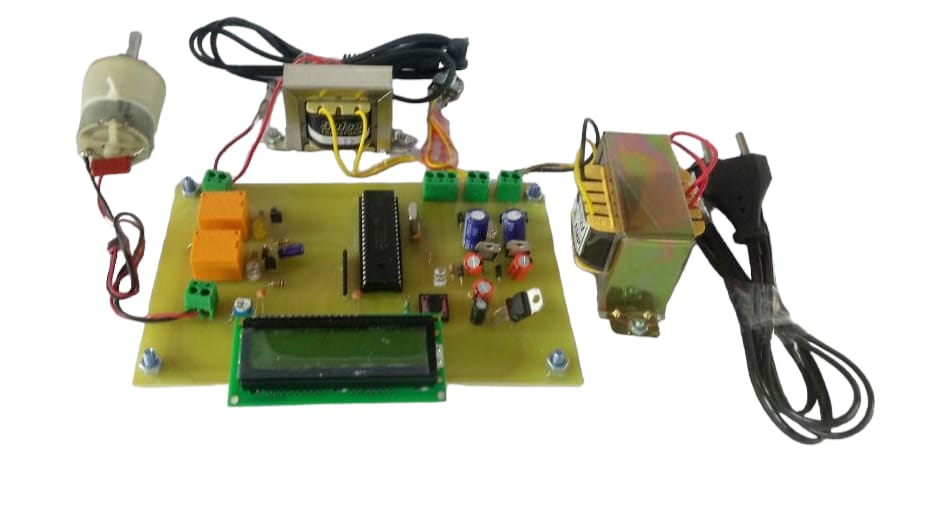

AUTOMATIC LOAD SHARING BY PARALLEL TRANSFORMER USING PIC MICRO-CONTROLLER

Code 471 AUTOMATIC LOAD SHARING BY PARALLEL TRANSFORMER USING PIC MICRO-CONTROLLER

4.42 out of 5
(31 customer reviews)

7,500.00 6,500.00

Ready-made Project

If You Are Short On Time
7,500.00 6,500.00
Add to cart - OR - See more options
Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 8,500.00 7,500.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 7,500.00 6,500.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 6,500.00 5,500.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio call support. 3,000.00 2,000.00

Description

The transformer is basically a static device that transfers the electrical power from one circuit to another circuit with the desired change in voltage and current at a constant frequency. It is only one device that operates at the highest efficiency at full load conditions. But abnormal condition occurs at overloading condition which may result in severe problem in future.

To avoid such conditions we are using another standby transformer which supplies the load when overloading occurs on the main transformer unit, which switches on automatically by PIC. This will result in efficient loading of both transformers. Also when the load is normal both transformers can be switched on to supply the load alternately. This will avoid the thermal overloading of the transformer. Also, this arrangement will provide proper maintenance f1acility for both transformers.

The transformer is a very costly and bulky equipment of power system. It operates for 24 hours of a day and feeds the load. Sometimes the situation may occur when the load on the transformer is suddenly increased above its rated capacity. When this situation occurs, the transformer will be overloaded and overheated and damage the insulation of the transformer resulting in interruption of supply. The best solution to avoid overloading is to operate the number of transformers in parallel. It is the same as the parallel operation of transformers where the number of transformers shares the system load. In the suggested approach the second transformer will share the load when the load on the first transformer will rises above its rated capacity. The main aim of the work is to provide an uninterrupted power supply to energy consumers. By implementation of this scheme the problem of interruption of supply due to transformer overloading or overheating can be avoided.

Note

Automatic load sharing by parallel transformer using pic micro-controlleris the project of last year’s engineering project, BE final year engineering project. This project is used for BE last year electrical department electronics students is used. This project is load sharing based project. This project is use for pic microcontroller based project.

Automatic load sharing by parallel transformer using pic micro-controller.it is a very comparative engineering project and electrical project. It is a very good BE core electrical electronics final year and diploma final year electrical based project.it is project for pic microcontroller based project idea for the electrical projects is an load sharing based project.

The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electrical students electronics student final year for the golden opportunity.

Automatic load sharing by parallel transformer using pic micro-controlleris an easy project and idea for the electrical electronics degree and diploma base students & 100% output is done.

HIGHLIGHTS

  • Priority-based load sharing provided an uninterrupted power supply to certain loads.
  • Load is shared by the transformers equally since the transformers were of same rating
  • Load sharing provides sufficient protection to distribution transformers under overloaded conditions.
  • The system automatically connects and disconnects the switch to share the transformer loads.
  • The PIC controller has managed the load according to rules.

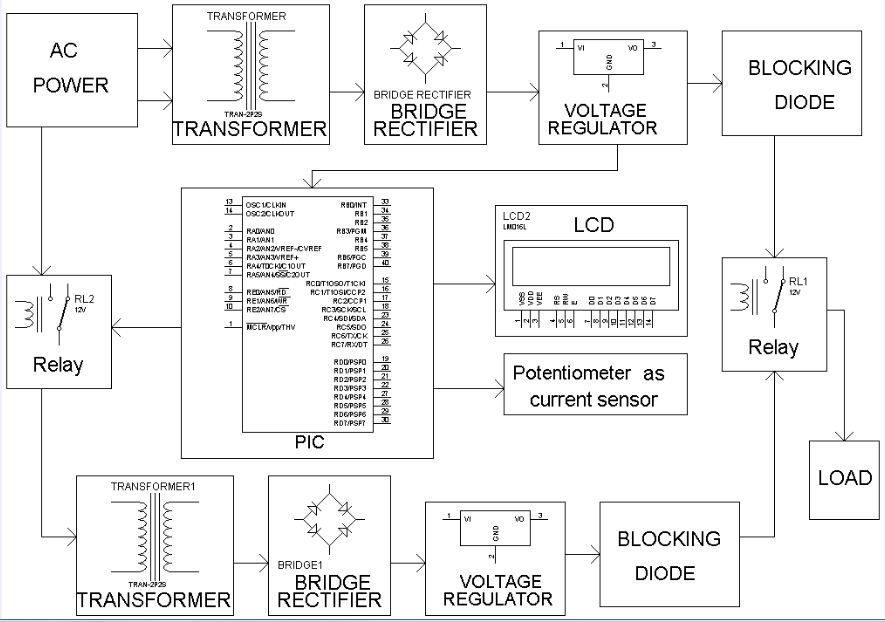

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • PIC microcontroller
  • Relay
  • Potentiometer
  • LCD
  • Diode
  • Transformer
  • Bridge rectifier
  • Voltage regulator
  • LCD display

SOFTWARE REQUIREMENTS

  • MP-LAB
  • Proteus
  • Eagle

RESOURCES

Additional information

Weight0.672 kg
Dimensions24 x 20 x 7 cm
