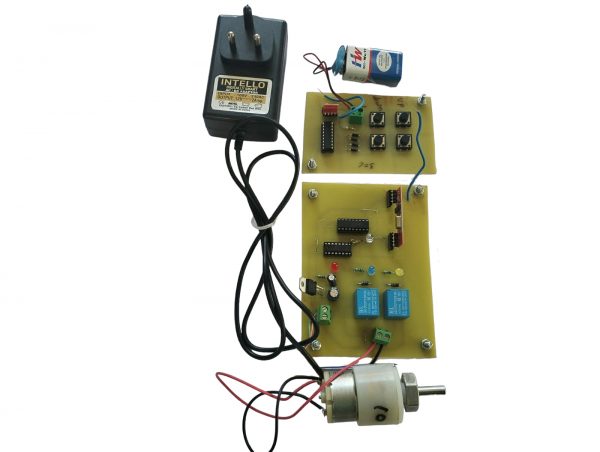

Dc Motor Rotation In The Clock Wise And Anti Clock Wise Direction Using Rf Remote

Code 539 Dc Motor Rotation In The Clock Wise And Anti Clock Wise Direction Using Rf Remote

4.60 out of 5
(5 customer reviews)

3,400.00 2,400.00

Ready-made Project

If You Are Short On Time
3,400.00 2,400.00
Add to cart - OR - See more options

DC Motors are commonly used in electronics and electrical projects. It may be a line-following robot, a remote-controlled car, electronic shutters and doors, digital locks, drones, and choppers, etc; the DC motors are used in a variety of applications. This project is a simple demonstration of remote controlling a DC motor by switching it on or off and changing the direction of its rotation clockwise or anticlockwise

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 4,500.00 3,500.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 3,400.00 2,400.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 2,400.00 1,400.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio call support. 3,000.00 2,000.00
For Simulation
Proteus Simulation file, Program Coad, Hex File, Explanatory Video, Google Meet Or Zoom Meet Support. 4,000.00 3,000.00

Description

DC Motors are commonly used in electronics and electrical projects. It may be a line-following robot, a remote-controlled car, electronic shutters and doors, digital locks, drones, and choppers, etc; the DC motors are used in a variety of applications. This project is a simple demonstration of remote controlling a DC motor by switching it on or off and changing the direction of its rotation clockwise or anticlockwise .The RF transmitter is also interfaced to the controller through an RF encoder to encode the data received by the controller through the front end. Hence the encoded data will be transmitted by the transmitter over the wireless medium and will be received by the RF receiver which will be interfaced through an RF decoder. The RF decoder is used to decode the received data into a 4 bit digital data which will be fed to the controller. Hence, if the relay1 gets ON then then dc motor in clockwise  direction. And if relay2   gets ON then the dc motor in anticlockwise direction.

HIGHLIGHTS

OBJECTIVE

  • DC Motors are commonly used in electronics and electrical projects.
  • DC Motors are used in a variety of applications.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

HARDWARE REQUIREMENTS

  • Transformer
  • Bridge rectifier
  • Regulator
  • Remote control
  • RF Receiver
  • Decoder
  • Relay driver IC
  • Relay
  • DC Motor

SOFTWARE REQUIREMENTS

SOFTWARE REQUIREMENTS

  • Proteus

RESOURCES
