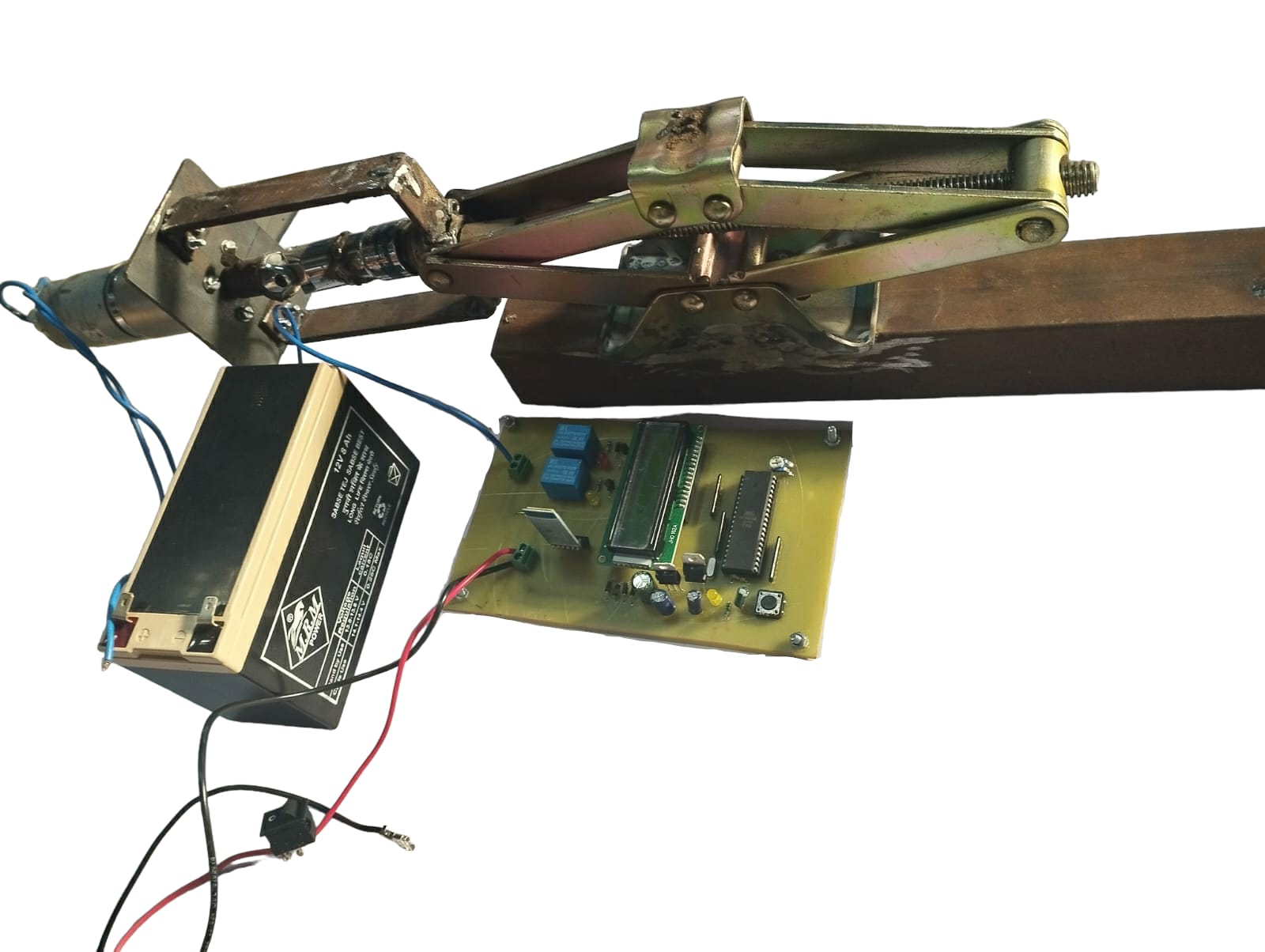

The project is designed to control the direction of car jack by using an android phone with the help of Bluetooth device. The direction of the DC motor is depending on the signal which is coming from mobile. Hence, if we press UP, this is present on your mobile then the relay1 & relay4 gets ON, so the motor rotates in forward direction. And if when we press DOWN from mobile the relay2 & realy3 gets ON then the motor rotates in backward direction.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 19,800.00 18,800.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 18,800.00 17,800.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 17,800.00 16,800.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio call support. 3,000.00 2,000.00
For Simulation
Proteus Simulation file, Program Coad, Hex File, Explanatory Video, Google Meet Or Zoom Meet Support. 4,000.00 3,000.00

Description

ABSTRACT

The project is designed to control the direction of car jack by using an android phone with the help of Bluetooth device. The direction of the DC motor is depending on the signal which is coming from mobile. Hence, if we press UP, this is present on your mobile then the relay1 & relay4 gets ON, so the motor rotates in forward direction. And if when we press DOWN from mobile the relay2 & realy3 gets ON then the motor rotates in backward direction.

When we start the device it will ask via LCD display that, “PLEASE CONNECT PHONE & PRESS THE KEY”. So when we pressing the key from mobile then the mobile is connected to the device. Whenever we press UP then the motor rotates in forward direction by using relay1 & relay4 logic & jack moves on UPWARD direction. When we press STOP button then the motor gets stop & remains in steady state. Vice versa, whenever we press DOWN then the motor rotates in backward direction with the help relay2 & relay3 logic & jack moves on DOWNWARD direction. This project uses the above principle to control the direction of the jack by using android phone. The relays are interfaced to the Bluetooth module for receiving signals from mobile and delivering desired output for direction control of the DC motor. Each and every status of the device displayed on LCD.

This project is use for the real time of the work.

HIGHLIGHTS

OBJECTIVE

  • The project is designed to control the direction of car jack by using an android phone with the help of Bluetooth device.
  • The direction of the DC motor is depending on the signal which is coming from mobile.
  • When we start the device it will ask via LCD display that, “PLEASE CONNECT PHONE & PRESS THE KEY”.
  • Whenever we press UP then the motor rotates in forward direction by using relay1 & relay4 logic & jack moves on UPWARD direction.
  • Whenever we press DOWN then the motor rotates in backward direction with the help relay2 & relay3 logic & jack moves on DOWNWARD direction.



BLOCK DIAGRAM

HARDWARE REQUIREMENTS

HARDWARE REQUIREMENTS

  • Transformer
  • Bridge rectifier
  • Regulator
  • Microcontroller
  • Bluetooth
  • LCD display
  • Transistor BC 547
  • 12 volt relay
  • Motor
  • Car jack

SOFTWARE REQUIREMENTS

Software requirements

  • Eagle
  • Proteus
  • Keil uVersion4

RESOURCES

Additional information

Kits

For Simulation, Ready-made Project + DIY Project Kit | If You Are An Enthusiast, Ready-made Project | If You Are Short On Time, DIY Project Kit | For Institutions, For Documentation, For PCB
