Magnetic & Non-magnetic Segregation Machine

Code 1006 Magnetic & Non-magnetic Segregation Machine

4.00 out of 5
(1 customer review)

12,000.00 10,000.00

In manufacturing & assembly industry daily we encounter multiple problems of mixed products.

Qty:

Description

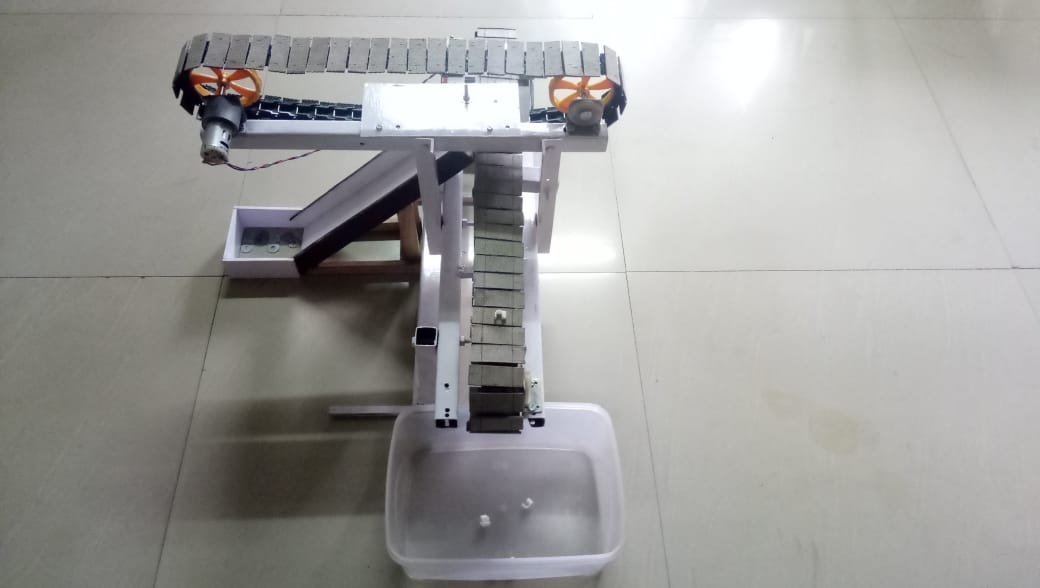

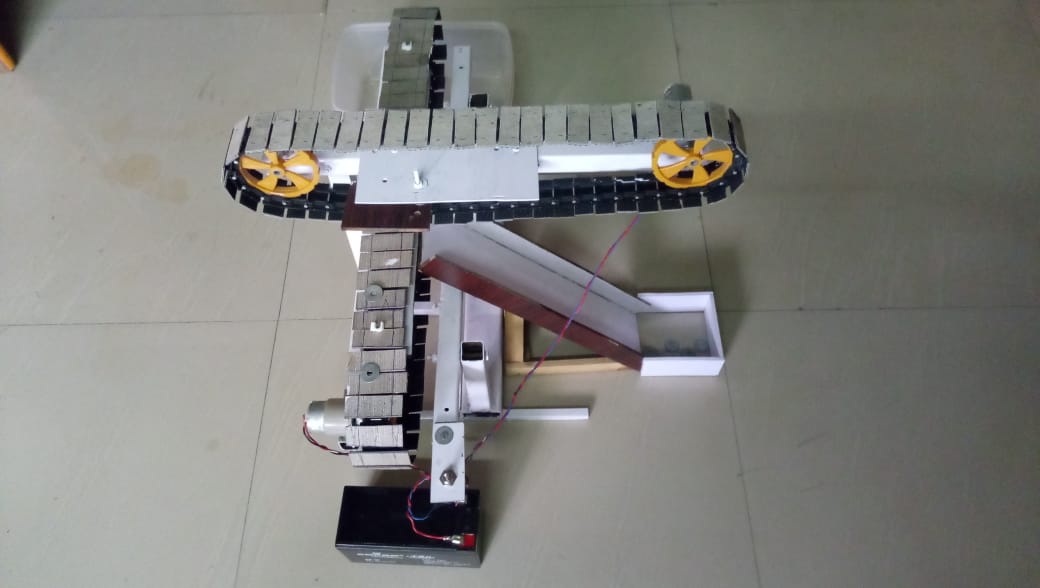

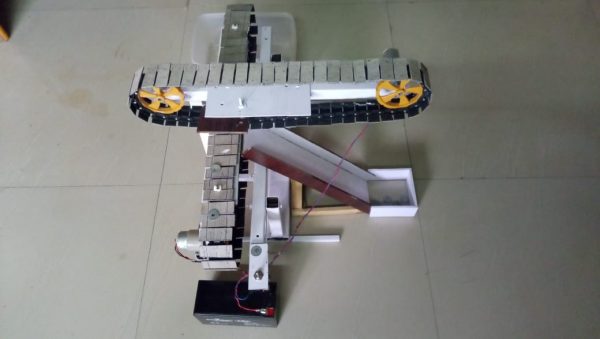

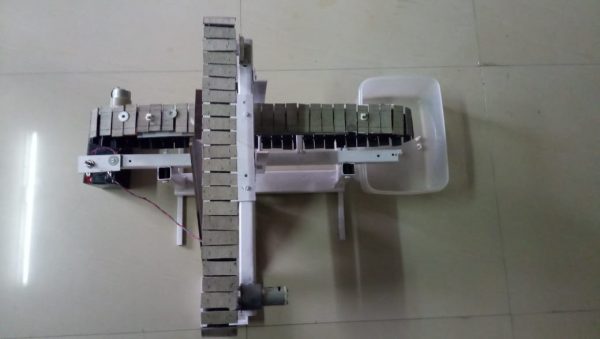

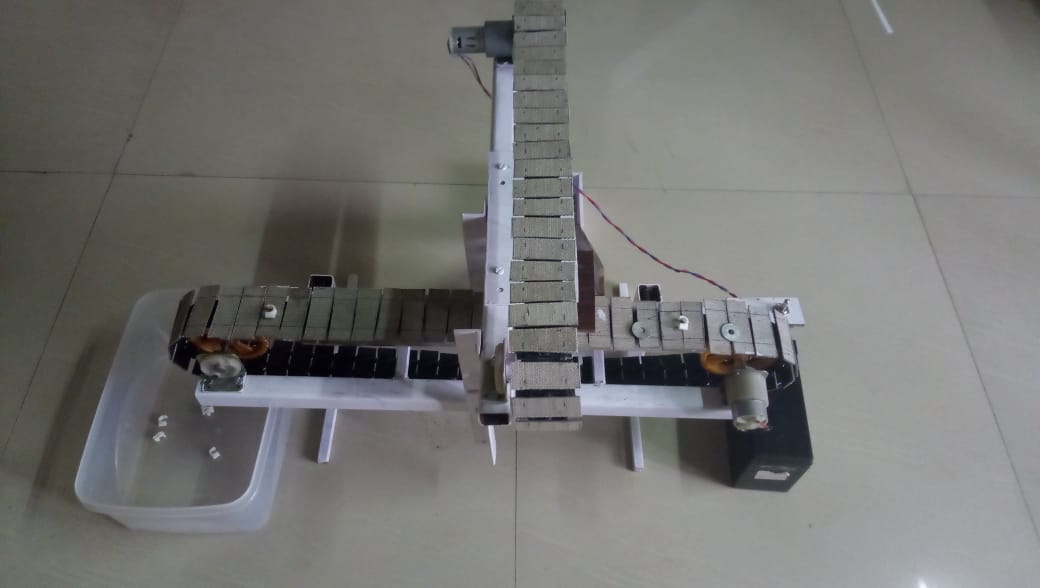

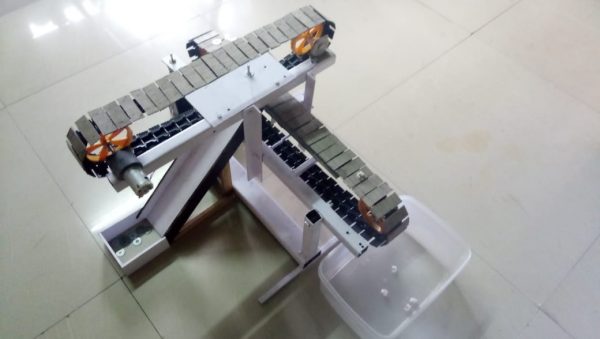

In manufacturing & assembly industry daily we encounter multiple problems of mixed products. While doing assembling or packing we need to segregate part as per some characteristic. In this project we are going to segregate magnetic & nonmagnetic parts. Here we have structured frame consisting of two conveyor belts placed at right angle to each other.
Conveyor No.-1 Main conveyor carrying mixed parts

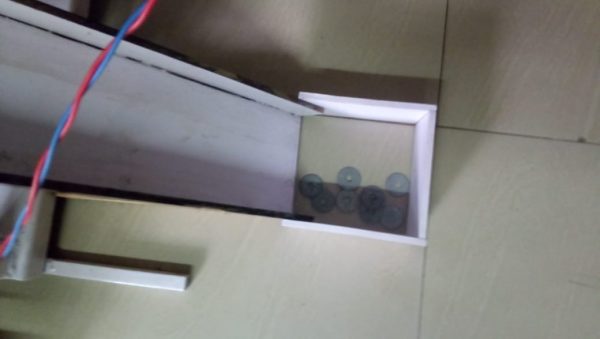

Conveyor No.-2 Magnetic conveyors. On this conveyor permanent magnet is fixed in such a way that it will convey parts with magnetic property & left on slide & tray provided.

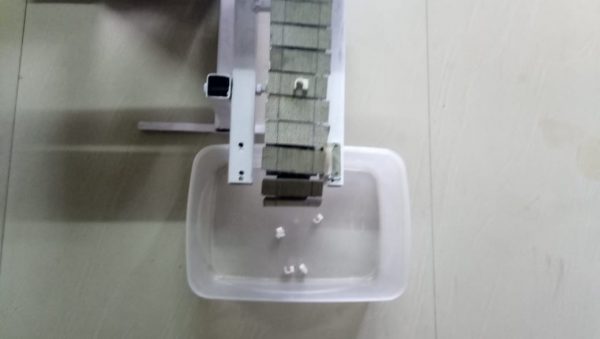

Working Principle: – On conveyor No.1 parts need to segregated are put. As the conveyor is started parts will start to move in forward directions. As soon as these parts come into the magnetic field, Ferro material will come into contact with magnet and will get attracted towards conveyor 2 and separated from main conveyor. Non-magnetic material will move in forward direction an will get collected in tray provided

HIGHLIGHTS

  • Man Power Reduction
  • Losses occuring due to Wastage of Iron Chips can be reduced
  • Less time consume
  • More benefits in minimum investment

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Conveyer Belt
  • collection Tray
  • DC Motor
  • Battery

SOFTWARE REQUIREMENTS

  • Software List 1
  • Software List 2

RESOURCES

Additional information

Weight20 kg
Dimensions50 x 50 x 40 cm
