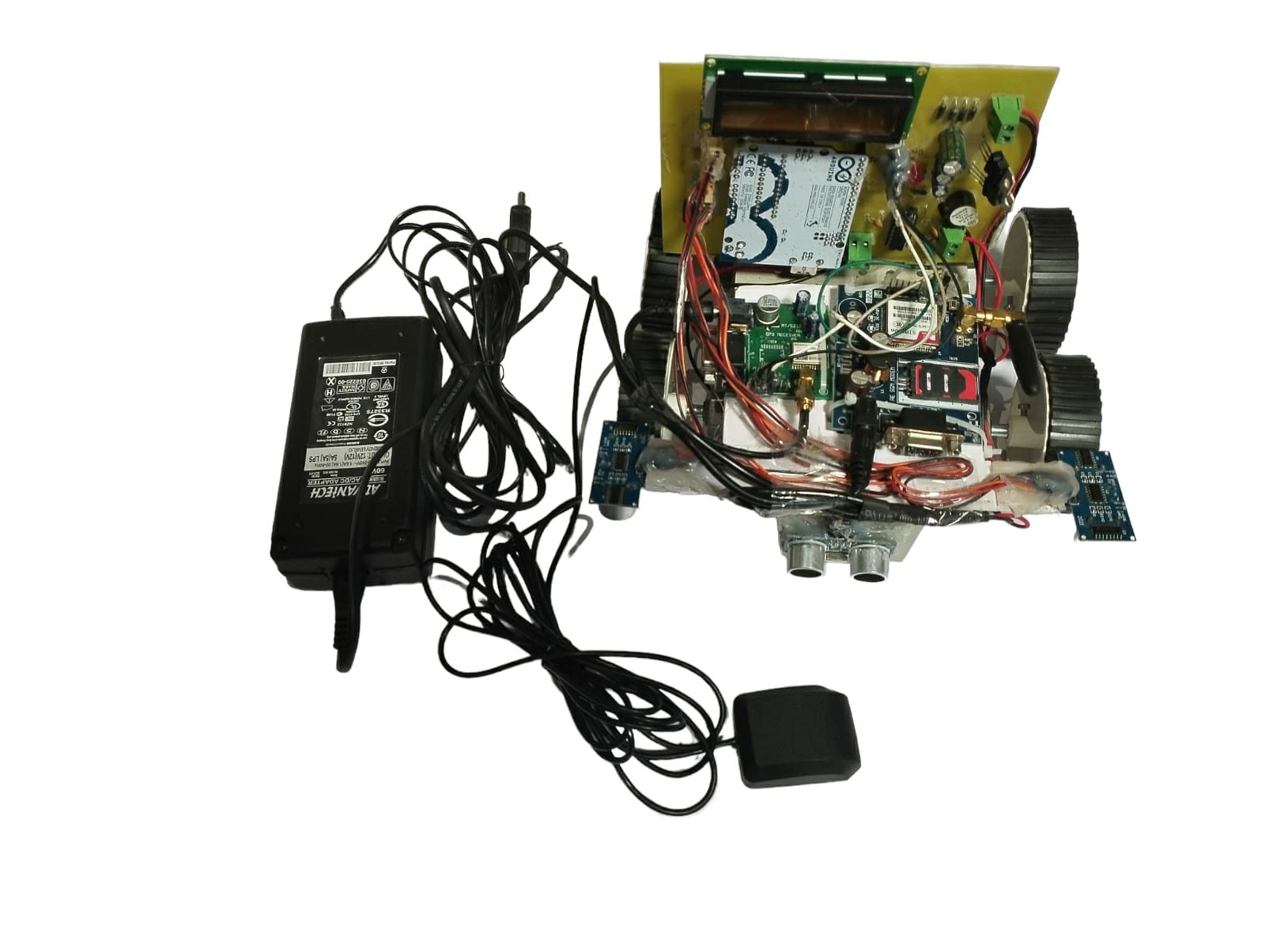

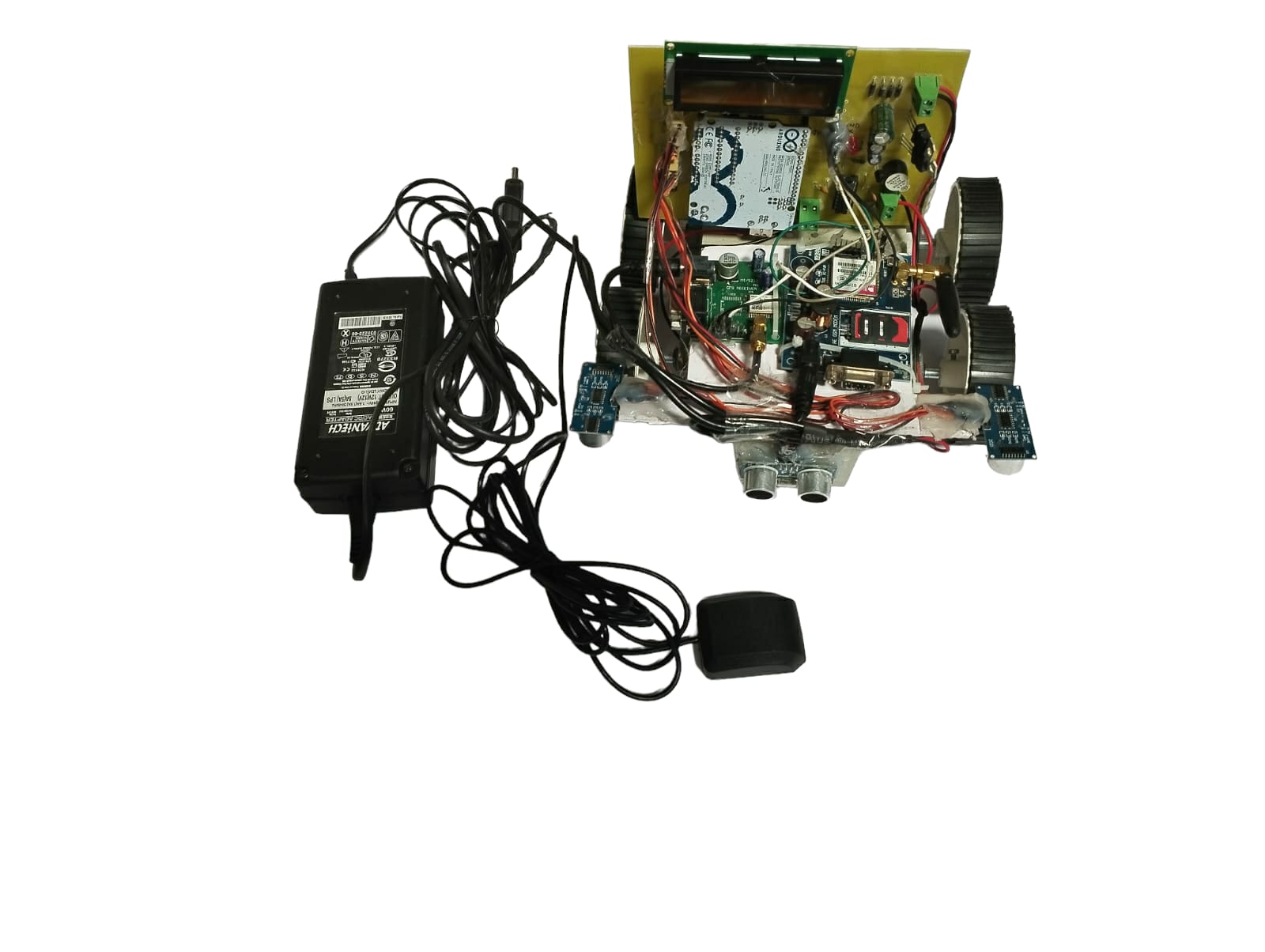

Railway Track Crack Detection

Code 586 Railway Track Crack Detection

4.20 out of 5
(5 customer reviews)

12,200.00 11,200.00

Ready-made Project

If You Are Short On Time
12,200.00 11,200.00
Add to cart - OR - See more options

India has the world’s fourth largest railway networks, which carry out most of the commercial transport in India. The train transportation increased due to high speed, economical, environment friendly, safety and modern characteristics of railway system. Major problem with this transportation is the bad weather condition, which cause flaws and cracks leads to the damage of railway tracks.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 13,400.00 12,200.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 12,200.00 11,200.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 11,200.00 10,200.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio call support. 3,000.00 2,000.00
For Simulation
Proteus Simulation file, Program Coad, Hex File, Explanatory Video, Google Meet Or Zoom Meet Support. 4,000.00 3,000.00

Description

ABSTRACT

India has the world’s fourth largest railway networks, which carry out most of the commercial transport in India. The train transportation increased due to high speed, economical, environment friendly, safety and modern characteristics of railway system. Major problem with this transportation is the bad weather condition, which cause flaws and cracks leads to the damage of railway tracks.

This is difficult to determine manually hence the solution is provided here. For reducing the derailments, the crack detection systems were designed using Ultrasonic Ranging Techniques. This projects introduces the detection of cracks in rail road’s using ultrasonic sensor. This system mainly focus to check the continuity of the railway track, if discontinuous reports the exact location of discontinuity to the nearest railway station, using GPS and GSM system.

From this method we can also predict the foreign objects like rock, animals, trees or landslides that block the railway route and information is sent to the concerned authority, stating that some foreign object is detected between those two sensor points, this can be further examined using drones or real time satellite imaging.

Ultimately this method is useful to determine, whether the railway route is suitable to travel at that instant of time or not.

HIGHLIGHTS

OBJECTIVE

  • Advanced project
  • SMS Alert
  • GSM and GPS based project
  • Rail track crack detection
  • Rail obstacle detection

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

HARDWARE REQUIREMENTS



  • Transformer
  • Bridge rectifier
  • Voltage Regulator
  • LCD display
  • Ultrasonic sensor
  • GSMP
  • GPS
  • Buzzer
  • Motor driver IC l293d
  • Dc motor

SOFTWARE REQUIREMENTS

SOFTWARE REQUIREMENTS



  • Arduino IDE
  • Eagle

Proteus

RESOURCES

Additional information

Kits

For Simulation, Ready-made Project + DIY Project Kit | If You Are An Enthusiast, Ready-made Project | If You Are Short On Time, DIY Project Kit | For Institutions, For Documentation, For PCB
