SCROLLING LED DISPLAY OR NOTICE BOARD USING ANDROID PHONE

Code 178 SCROLLING LED DISPLAY OR NOTICE BOARD USING ANDROID PHONE

7,800.00 6,200.00

This project is designed to develop a micro-controlled based scrolling message display for notice board. It can also be used to display latest information anywhere such as colleges, shops, railway stations and other places. The information is transmitted using an android phone.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

9,600.00 6,400.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

7,800.00 6,200.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

6,300.00 5,800.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

2,500.00 2,000.00
For PCB

PCB
PCB,Circuit Diagram

1,500.00 1,000.00

Description

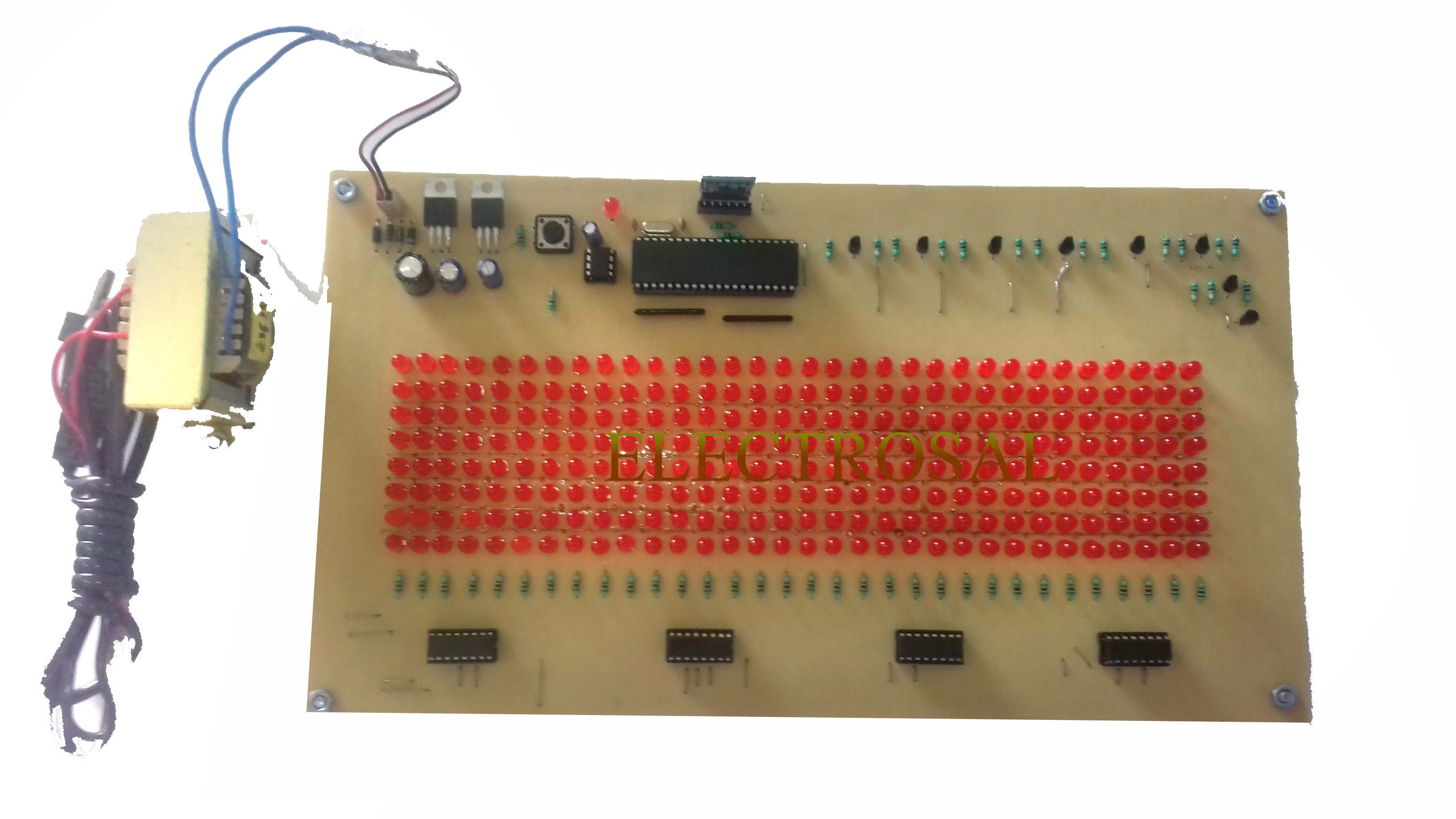

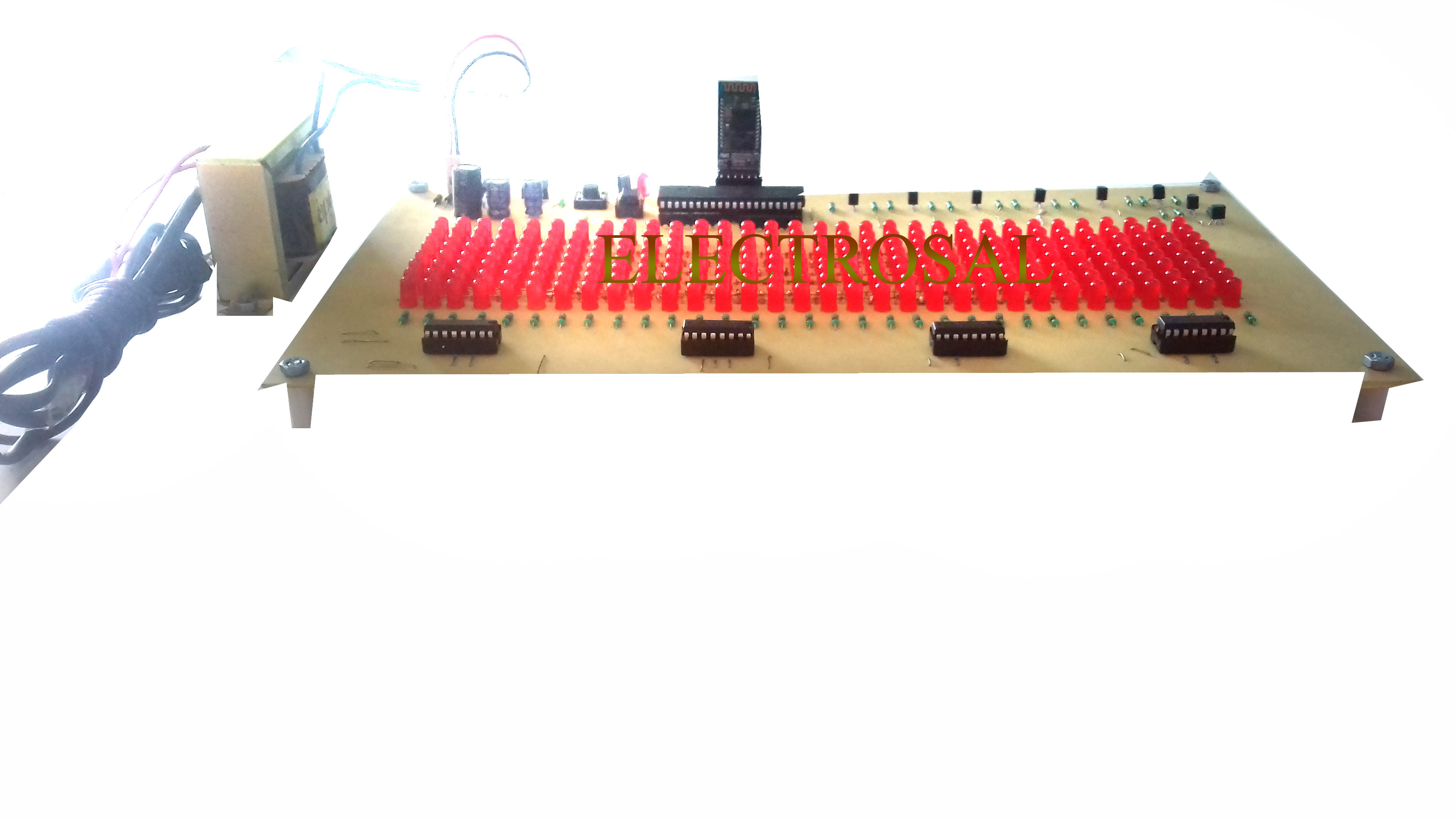

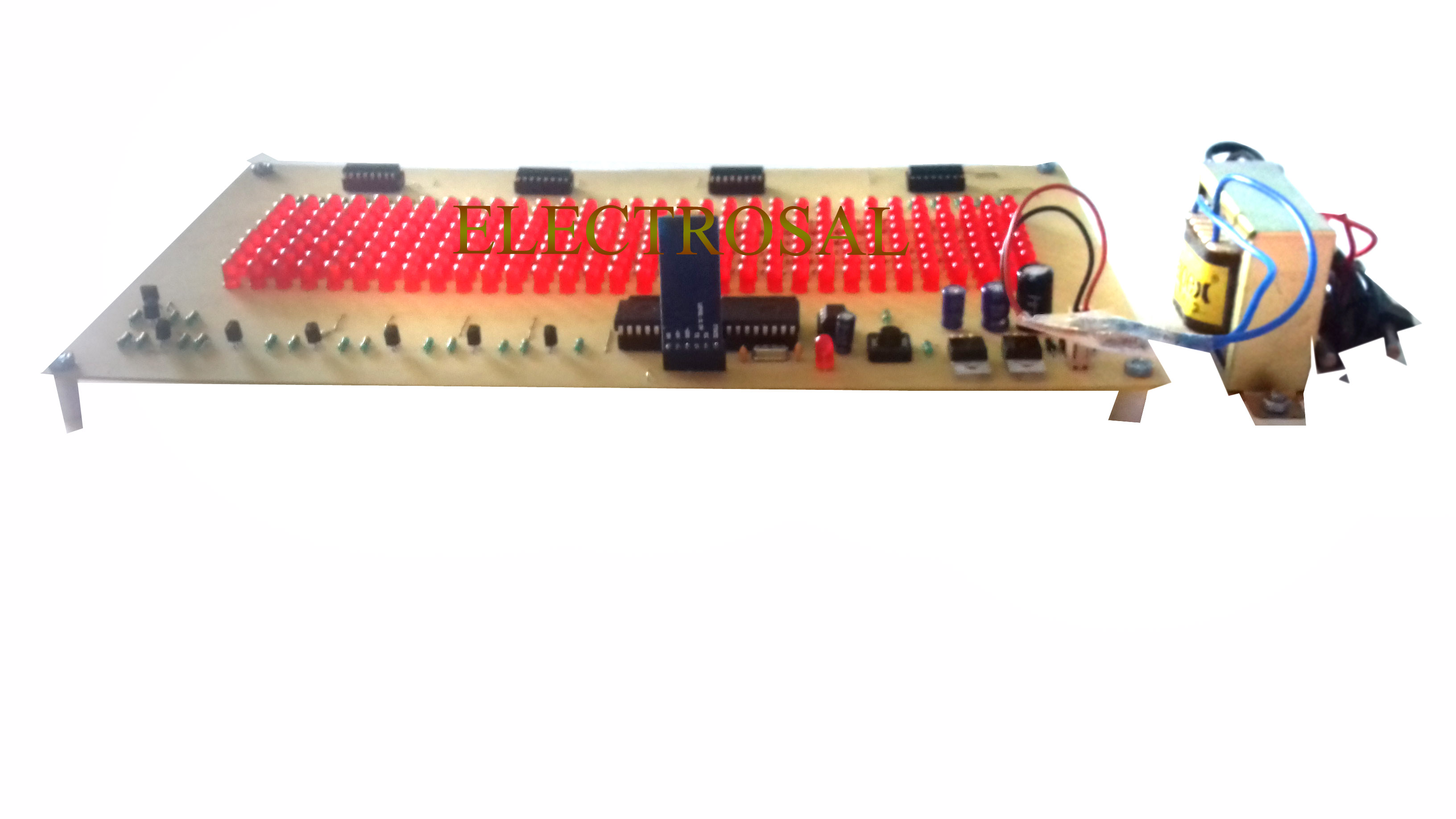

This project is designed to develop a micro-controlled based scrolling message led matrix display for notice board. It can also be used to display latest information anywhere such as colleges, shops, railway stations and other places. The information is transmitted using an android phone. Traditionally notice board is all about sticking information, but sticking various notices day-to-day is a difficult process. A person is required separately to take care of this notice board. This system displays notices through an android phone on notice boards

This system can be implemented in many important places where latest information can be displayed. For example if implemented in colleges all information for students can be displayed. It is very convenient for students and college management to display any information. This system can also be implemented in railway stations and airports to display information regarding the train and flight timings. This system reduces the wastage of papers. The information is received by Bluetooth, which is interfaced to 8051 family microcontroller wirelessly connected to android phone. An external memory connected to the microcontroller stores the information. An LCD is connected to the microcontroller to display the message in a continuous scrolling manner.

HIGHLIGHTS

  • Project is designed to develop a micro-controlled based scrolling message led matrix display for notice board
  • The information is transmitted using an android phone
  • This system can be implemented in many important places where latest information can be displayed
  • This system reduces the wastage of papers

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Micro- controller
  • Shift Register ic
  • EEPROM IC
  • LED’s
  • Transformer

SOFTWARE REQUIREMENTS

  • Keil
  • Eagle

RESOURCES
