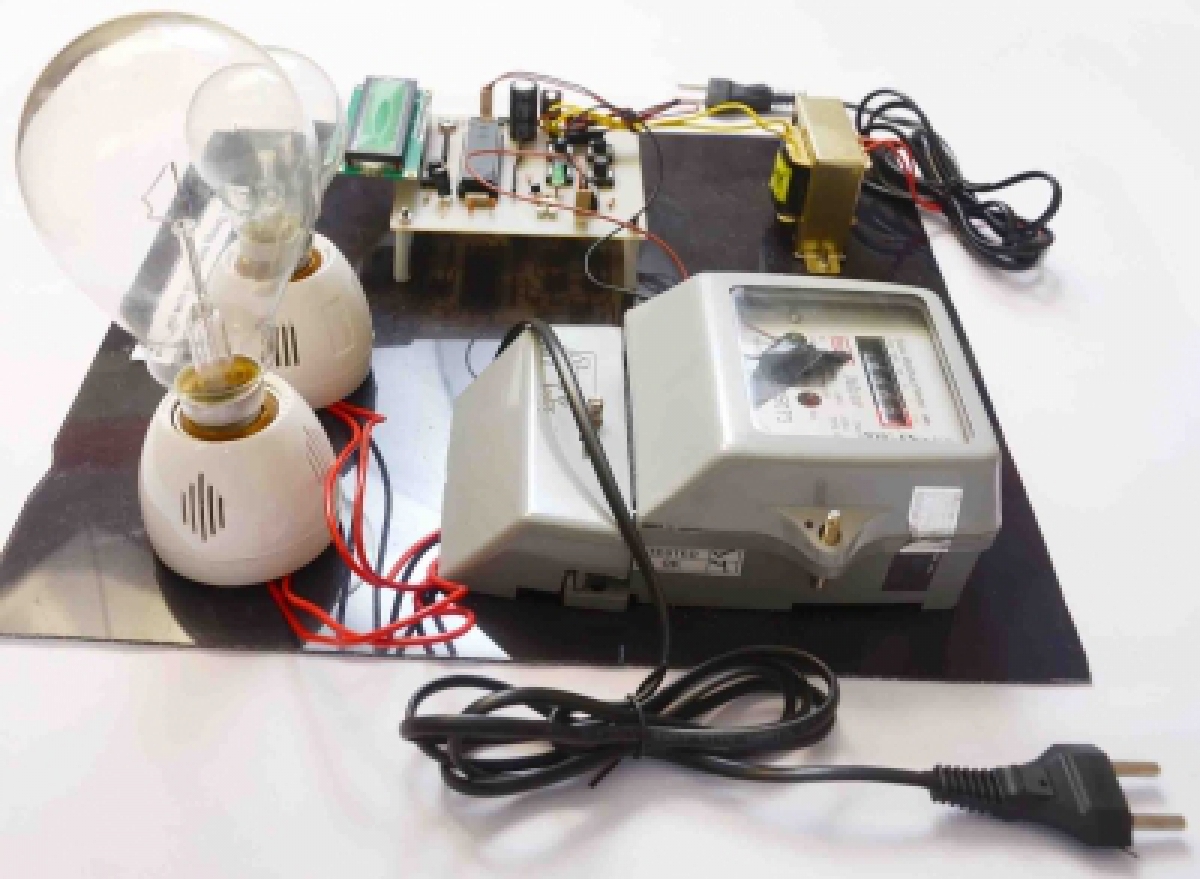

PROGRAMMABLE ENERGY METER FOR ELECTRICAL LOAD SURVEY

Code 18 PROGRAMMABLE ENERGY METER FOR ELECTRICAL LOAD SURVEY

8,400.00 7,100.00

The main objective of this project is to calculate the electrical energy required by a load through push-button switches by entering the unit cost relation as per the energy tariff. With this system, one can avoid hours of waiting for a load survey assistant.

Kits DescriptionPrice
Do It Yourself Kit
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

9,800.00 7,500.00
Ready-made Kit
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

8,400.00 7,100.00
Project Kit
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

6,800.00 6,000.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

1,800.00 1,100.00
For PCB

PCB
PCB, Circuit Diagram

2,000.00 1,000.00

Description

The main objective of this project is to calculate the electrical energy required by a load through push-button switches by entering the unit cost relation as per the energy tarrif. With this system, one can avoid hours of waiting for a load survey assistant. The energy audit involves survey and analysis of energy consumption of electrical loads in either domestic sector or industrial environment. Nowadays the unit cost of electricity is very high, and therefore,it necessitatesone to know whether the energy of a particular load, or instrument is efficient or not.The proposed system is used to examine the energy of electrical loads. The proposed system usesan 8051 family of microcontroller and a rectified power supply. Here, four push-button switches are interfaced to the microcontroller for providing the energy tariff information. A 16*2 LCD display is connected to the microcontroller for displaying the information. This system is connected to the energy meter with aload through comparator IC. The microcontroller reads the pulses from the energy meter for finding the energy consumption of the electrical loads. When a user gives the unit price and prescribed time of the load through a push-button switch to the microcontroller,then it calculates according to the program and displays the relevant energy consumed and cost information on theLCD display. The project in future can be implemented by using a GSM modem by interfacing it to the device for remote monitoring of the data over GSM network via SMS. Even load control can also be achieved through SMS.

HIGHLIGHTS

  • Calculate the electrical energy
  • Avoid hours of waiting for load survey
  • Energy of perticular load or instrument
  • It used microcontroller
  • Controller is connected to energy meter with load through comparator

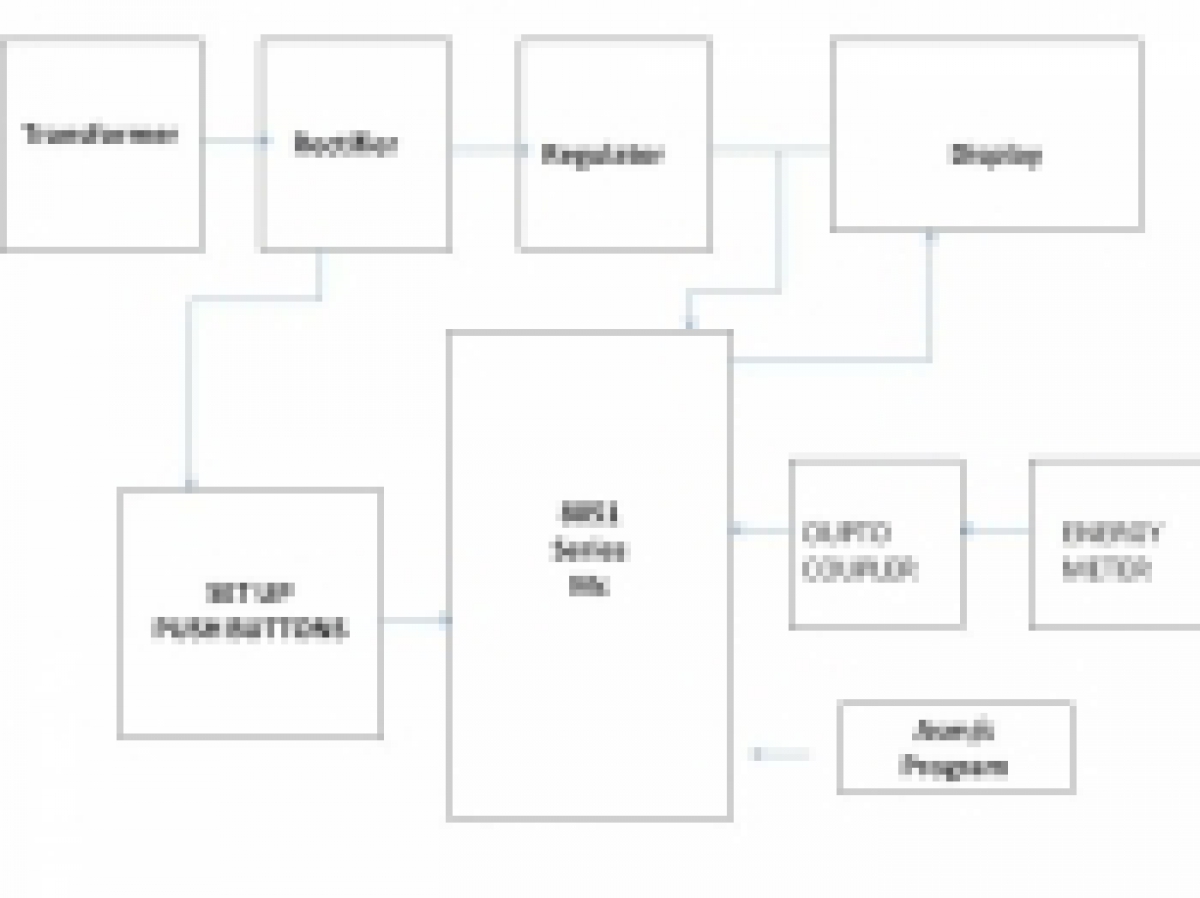

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Energy meter
  • Microcontroller
  • Load
  • comparator
  • Transformer
  • LCD Display

SOFTWARE REQUIREMENTS

  • Keil
  • Eagle
