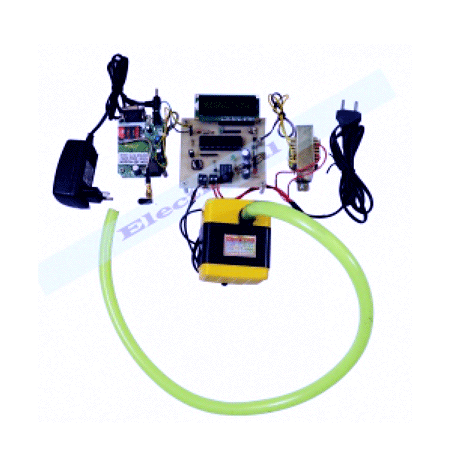

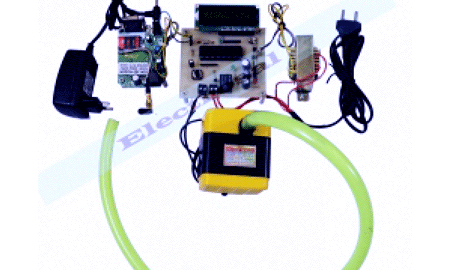

GSM BASED IRRIGATION

Code 25 GSM BASED IRRIGATION

8,400.00 6,200.00

The project is designed to develop an automatic irrigation system that switches a pump motor on or off upon sending the SMS from the user. In the field of agriculture, use of proper method of irrigation is important. The advantage of using this method is to reduce human intervention and still ensure proper irrigation.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

9,100.00 6,700.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

8,400.00 6,200.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

7,200.00 5,900.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

2,100.00 1,300.00
For PCB

PCB
PCB, Circuit Diagram

1,500.00 1,000.00

Description

The project is designed to develop an automatic irrigation system that switches a pump motor on or off upon sending the SMS from the user. In the field of agriculture, use of proper method of irrigation is important. The advantage of using this method is to reduce human intervention and still ensure proper irrigation.
The project uses a GSM Module board which is designed to receive the input signal as SMS from the user sends. This is achieved by using a GSM kit. Which is interface between microcontroller and GSM kit arrangement and the relay switch. Once the GSM receives the signal (sms) it generates an output that drives a relay for operating the water pump ON/OFF. The receive and operated perform shows on the 16*2 LCD display
We can be enhanced by integrating GSM technology and controller, such that whenever the water pump switches on/off, an SMS is delivered to the concerned person regarding the status of the pump.

HIGHLIGHTS

  • Designed to automatic irrigation system
  • Using this method is to reduce human intervention
  • GSM is interfaced to microcontroller for receive the signal
  • Operation is display on LCD display

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Microcontroller
  • GSM module
  • LCD display
  • Relay
  • water pump
  • Transformer

SOFTWARE REQUIREMENTS

  • Keil
  • Eagle

RESOURCES
