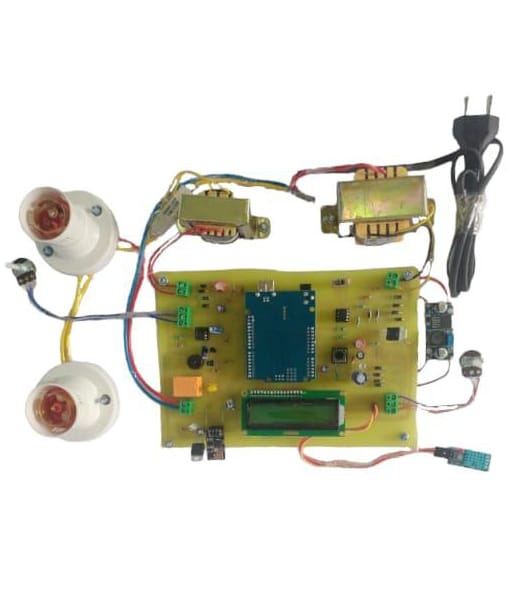

The purpose of this project is to acquire the remote electrical parameters like voltage, current and frequency and send these real time values over network along with temperature at power station. This project is also designed to protect the electrical circuitry by operating a relay.

Kits DescriptionPrice
Do It Yourself Kit
If You Are An Enthusiast

The ready-made project, One more PCB, Solderable components, Circuit Diagram, PPT, Program, Report, Explanatory Video, voice and video call support, One year warranty

7,500.00 7,100.00
Ready-made Kit
If You Are Short On Time

Ready-made Project, Circuit Diagram, Program, PPT, Report, Explanatory Video, voice and video call support, One year warranty

6,800.00 6,500.00
Project Kit
For Institutions

PCB, Components, Circuit Diagram, PPT, Program, Report, Explanatory Video

6,200.00 5,900.00
For Documentation

Circuit Diagram, Program, Report, Powerpoint presentation, Explanatory Video

2,800.00 2,000.00
For Simulation

Circuit Diagram, Program

3,200.00 2,500.00

Description

The purpose of this project is to acquire the remote electrical parameters like voltage, current and frequency and send these real time values over network along with temperature at power station. This project is also designed to protect the electrical circuitry by operating a relay.

This relay gets activated whenever the electrical parameters exceed the predefined values.

This system can automatically update the real time electrical parameters continuously this system can be designed to send alerts whenever the relay trips or whenever the voltage or current exceeds the predefined limits. This project makes use of a microcontroller, as this is a prototype of the proposed project, for demonstration purpose we have used Arduino Uno here. The controller can efficiently communicate with the different sensors being used.

When we give supply to our prototype all the sensors start sensing the current, voltage, frequency and temperature and update all the real time values to the server as well as shows on the display. It compares all the real time values with the pre-defined values, if any of the values exceeds pre-defined values it sends a fault alert to the relay and buzzer as well as update it on the display. If the fault exists for the pre-set time then relay isolates the loads from the rest of the system. In the meantime, comparison goes on as before, if the fault gets cleared relays reconnect the loads with the rest of the system.

HIGHLIGHTS

  • Arduino based project
  • Remote monitoring is possible
  • IOT is used to monitor the parameter

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • LCD
  • DHT
  • ESP 8266
  • Relay
  • Buzzer

SOFTWARE REQUIREMENTS

  • Arduino IDE
  • Eagle
  • Proteus
