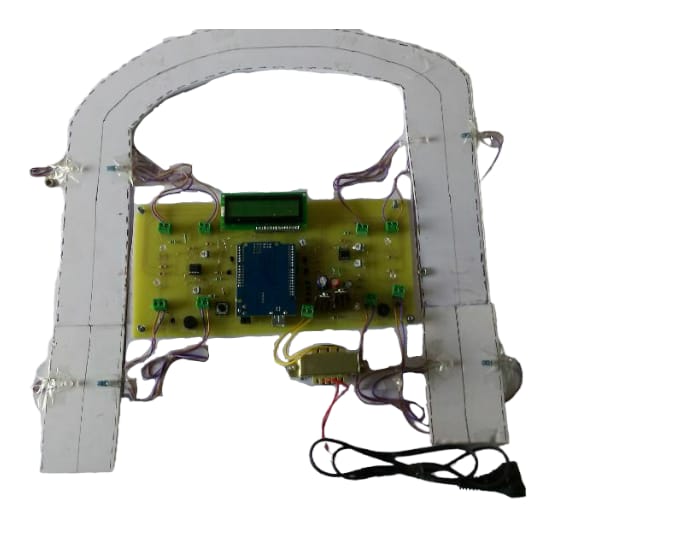

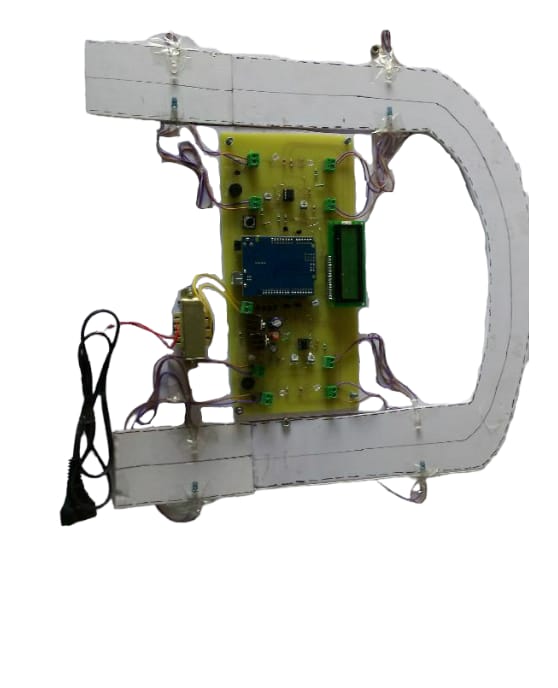

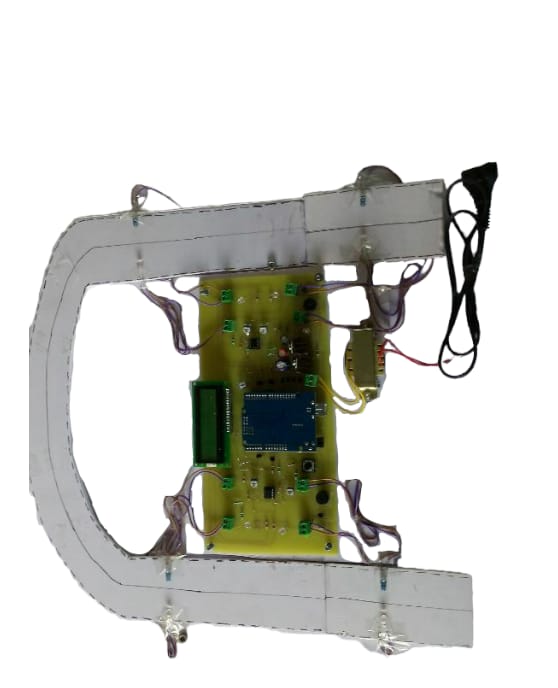

U TURN ACCIDENT AVOIDANCE USING ARDUINO

Code 491 U TURN ACCIDENT AVOIDANCE USING ARDUINO

5,500.00 5,000.00

The constantly growing transport sector has resulted in an increase in accidents every day. The accident mainly occurs due to our carelessness and breaking of traffic rules.

Kits DescriptionPrice
Do It Yourself Kit
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

6,500.00 5,600.00
Ready-made Kit
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

5,500.00 5,000.00
Project Kit
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

5,200.00 4,600.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

1,500.00 1,000.00
For PCB

PCB
PCB,Circuit Diagram

1,200.00 1,000.00

Description

The constantly growing transport sector has resulted in an increase in accidents every day. The accident mainly occurs due to our carelessness and breaking of traffic rules. Indirect left-turn treatments have been increasingly used as design alternatives to address problems that are associated with left-turn egress maneuvers from side streets or driveways at two-way stop-controlled intersections. In this project, the proposed system aims to avoid collisions between vehicles mainly occurring in U-turn bends, hair-pin bends, short corners, blind curves, etc., by alerting the vehicle drivers about the accidents that might occur. If case of any vehicle breakdown or repair of the vehicle, the interrupt signal will be sent to the control room thereby the problems can be solved. The accidents due to the negligence of the driver are prevented by warning him through the buzzer and light indication. The vehicle is detected by IR and sends the signal to the controller and shows the LED indication about the vehicle has occurred. This system makes use of infrared sensors and other embedded systems.

HIGHLIGHTS

  • Used to avoid road curve accidents.
  • The project is based Arduino.
  • IR module is used to detect the vehicle
  • Alerting driver by glowing LED light and Buzzer indication

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • IR transmitter and receiver
  • Buzzer
  • LED
  • LCD
  • Comparator LM 385

SOFTWARE REQUIREMENTS

  • Arduino IDE
  • Eagle
  • Proteus
