SEMIAUTOMATIC FERTILIZER SPREADING MACHINE

Code 1001 SEMIAUTOMATIC FERTILIZER SPREADING MACHINE

15,000.00 13,200.00

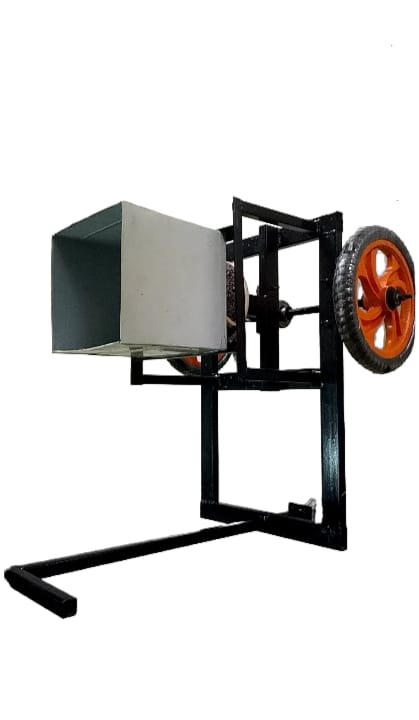

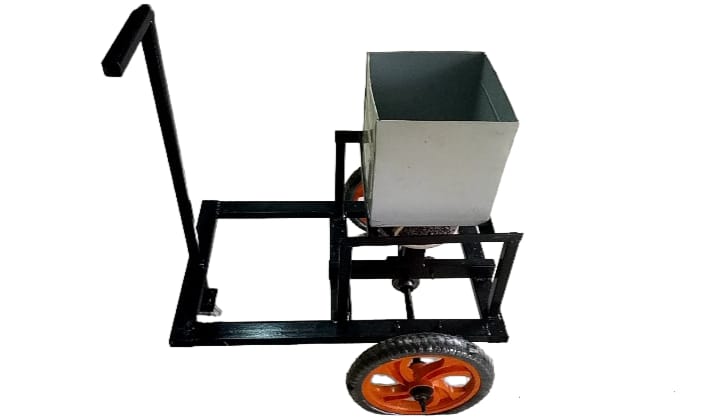

This project consists of three wheeled basic frame on which fertilizer is stored in container.In the project wheels mounted on shaft supported on pedestal bearing. On the same shaft at the center bevel gear of 16 teeth is mounted this gear meshes with bevel gear of 10 teeth to convert axis of rotation. This bevel gear rotates vertical shaft and eventually Spreader disc mounted on it.
Fertilizer to be spreaded is put in the container and through valve provided fertilizer is poured on the rotating disc. Which spreads fertilizer uniformly on the ground.

Qty:

Description

This project consists of three wheeled basic frame on which fertilizer is stored in container.In the project wheels mounted on shaft supported on pedestal bearing. On the same shaft at the center bevel gear of 16 teeth is mounted this gear meshes with bevel gear of 10 teeth to convert axis of rotation. This bevel gear rotates vertical shaft and eventually Spreader disc mounted on it.
Fertilizer to be spreaded is put in the container and through valve provided fertilizer is poured on the rotating disc. Which spreads fertilizer uniformly on the ground.

HIGHLIGHTS

  • Fertilizer Spreading machine
  • Spreads Uniformly

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Hammer
  • welding machine
  • Drilling machine
  • cutoff machine
  • MS

SOFTWARE REQUIREMENTS

RESOURCES
