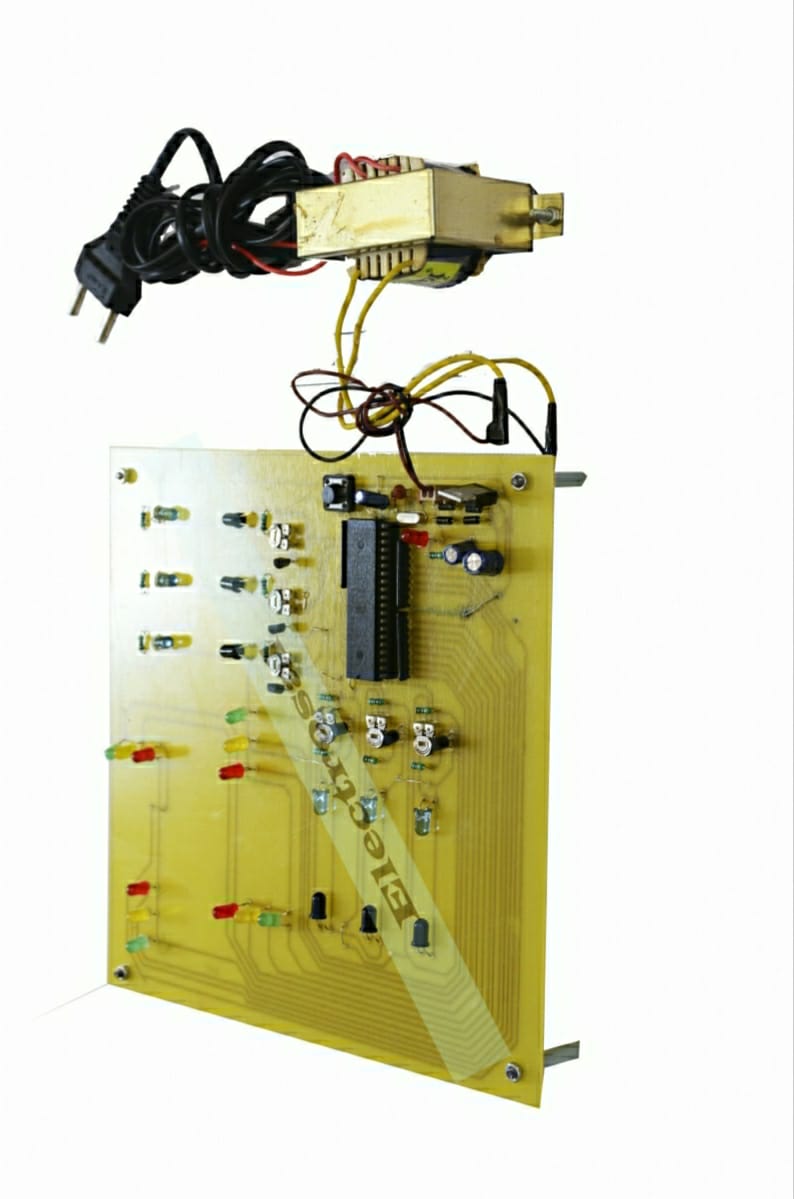

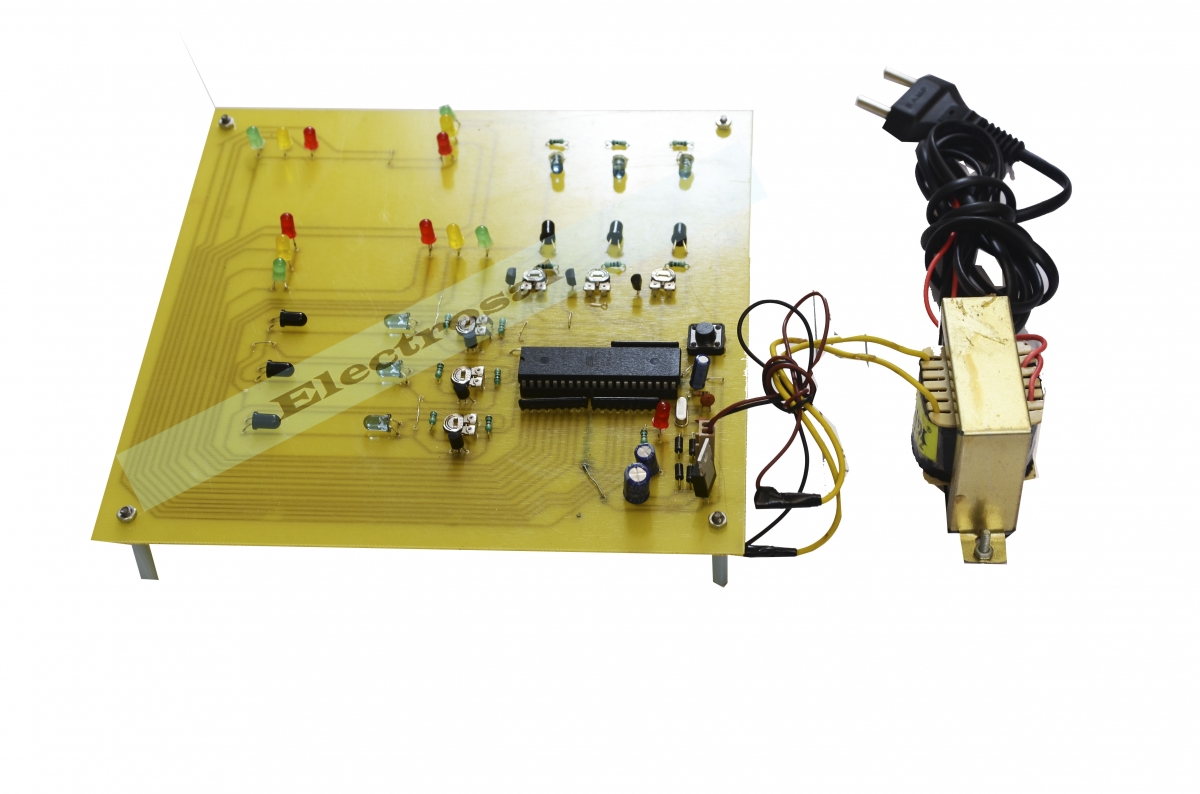

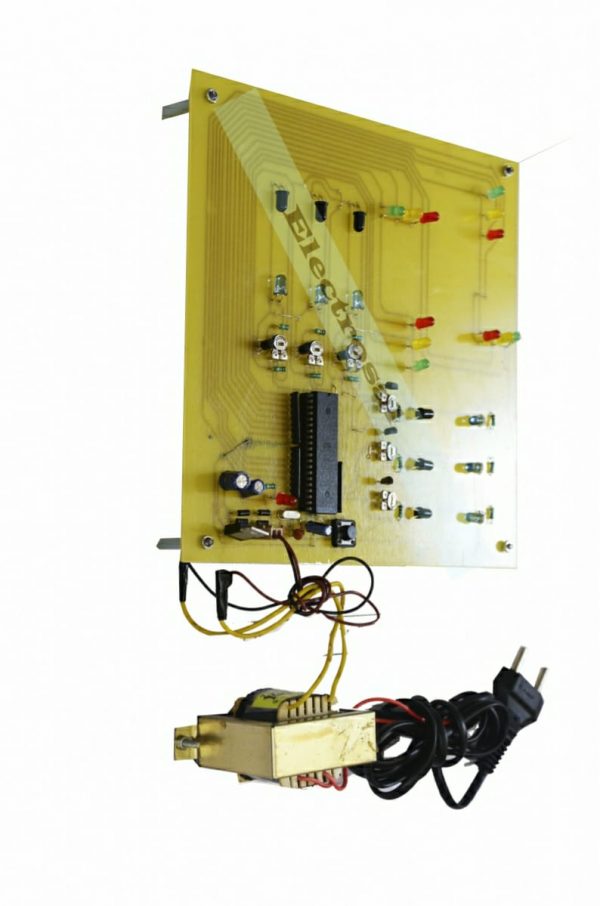

TRAFFIC DENSITY SENSED SIGNAL LIGHT SYSTEM

Code 57 TRAFFIC DENSITY SENSED SIGNAL LIGHT SYSTEM

7,200.00 5,100.00

The main goal of this project is to control the traffic density at the junction by IR sensor that detects the traffic density at the junction and changes the signal timings automatically by IR interruption method.

Kits DescriptionPrice
Do It Yourself Kit
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

8,500.00 5,600.00
Ready-made Kit
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

7,200.00 5,100.00
Project Kit
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

6,800.00 4,800.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

1,900.00 1,100.00
For PCB

PCB
PCB,Circuit Diagram

2,000.00 1,200.00

Description

The main goal of this project is to control the traffic density at the junction by IR sensor that detects the traffic density at the junction and changes the signal timings automatically by IR interruption method.

Conventional traffic light system is based on fixed-time concept allotted to each side of the junction, which cannot be varied as per varying-traffic density. Junction timings allotted are fixed. Sometimes higher-traffic density at one side of the junction demands longer green time as compared to the standard allotted time. The proposed system using a microcontroller of the 8051 family duly interfaced with sensors changes the junction timing automatically to accommodate movement of vehicles smoothly avoiding unnecessary waiting time at the junction. The sensors used in this project are IR and photodiodes which are in line of sight configuration across the road to detect the density at the traffic signal while interrupted. The density of the vehicles is measured in three zones: low, medium, high based on which timings are allotted accordingly.

Furthermore, in future the project can be enhanced by synchronizing all the traffic junctions in the city by establishing a network among them. The network can be wired or wireless. This synchronization will greatly help in reducing traffic congestion.

HIGHLIGHTS

  • Control the traffic density at junction
  • IR sensors are detect the density
  • Junction time changes automaticaly depend on density
  • Density is measured on three zones

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • 8051 micro controller
  • IR Sensor
  • LED’s
  • Transformer

SOFTWARE REQUIREMENTS

  • keil
  • Eagle
