WIRELESS ELECTRONIC NOTICE BOARD BY GSM

Code 20 WIRELESS ELECTRONIC NOTICE BOARD BY GSM

7,000.00 6,000.00

Notice Board is primary thing in any institution / organization or public utility places like bus stations, railway stations and parks. But sticking various notices day-to-day is a difficult process. A separate person is required to take care of this notices display. This project deals about an advanced hi-tech wireless notice board.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

8,400.00 6,400.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

7,000.00 6,000.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

6,200.00 5,800.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

2,200.00 1,200.00
For PCB

PCB
PCB, Circuit Diagram

2,000.00 1,000.00

Description

Notice Board is primary thing in any institution / organization or public utility places like bus stations, railway stations and parks. But sticking various notices day-to-day is a difficult process. A separate person is required to take care of this notices display. This project deals about an advanced hi-tech wireless notice board. The main objective of the project is to develop a wireless notice board that displays notices when a message is sent from the users mobile. While the user sends the message from the mobile, it is received and retrieved by the GSM modem at the display unit. The desired number is auto saved on the microcontroller over a missed call. It is then sent to the microcontroller that further displays the notice sent from the user on to the electronic notice board which is equipped with a 16X2 LCD display. It uses a microcontroller from 8051 family. The power supply consists of a step down transformer 230/12V, which steps down the voltage to 12V AC. This is converted to DC using a Bridge rectifier. The ripples are removed using a capacitive filter and it is then regulated to +5V using a voltage regulator 7805 which is required for the operation of the microcontroller and other components.

HIGHLIGHTS

  • Notice board is primary thing in every where
  • Display notice when message is sent from the user mobile
  • 8051 familly microcontroller is used
  • In project we used 16*2 LCD Display is used to notice the data

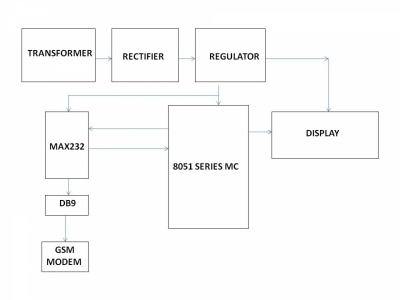

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • GSM
  • Microcontroller
  • LCD Display
  • Transformer

SOFTWARE REQUIREMENTS

  • Keil
  • Eagle
