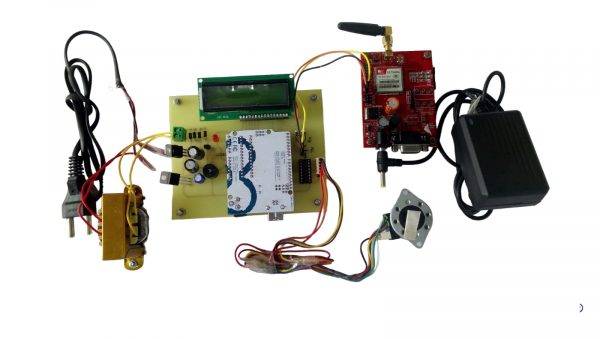

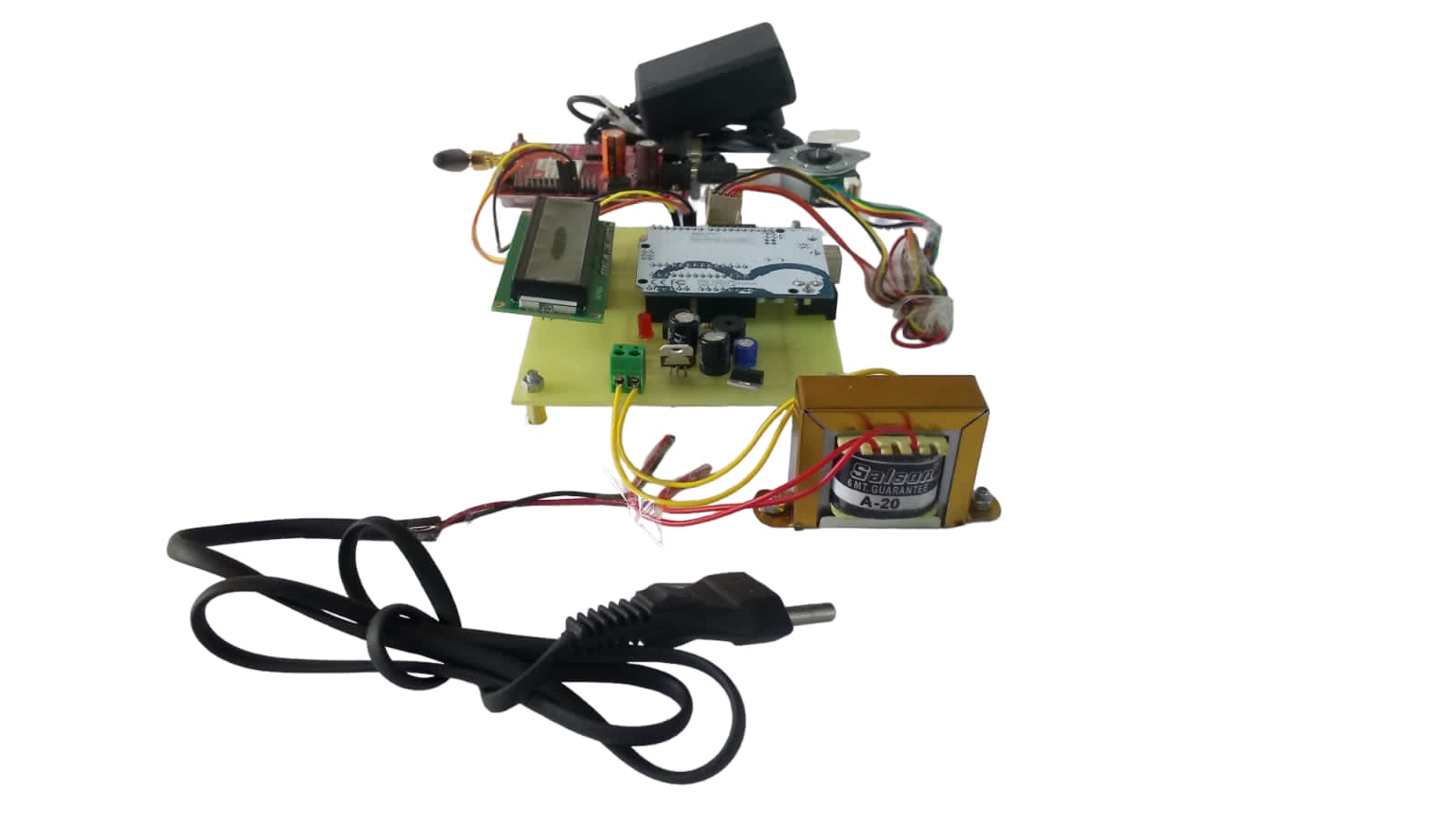

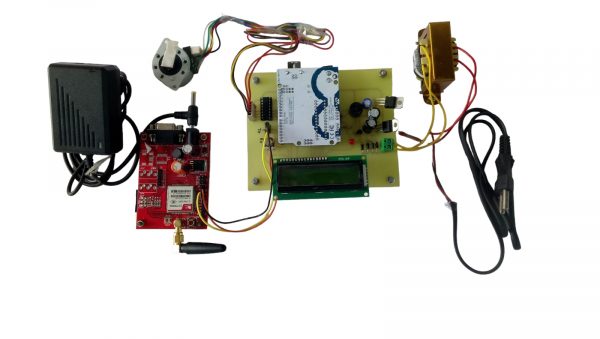

Stepper Motor Speed Control Using GSM & Arduino

Code 394 Stepper Motor Speed Control Using GSM & Arduino

7,600.00 5,600.00

Our proposed project allows user to control the speed and direction of a stepper motor remotely from anywhere. The system works by receiving stepper motor control instructions from user through an SMS message.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

8,200.00 6,200.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

7,600.00 5,600.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

7,000.00 5,000.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

3,000.00 2,000.00
For PCB

PCB
PCB, Circuit Diagram

2,000.00 1,000.00

Description

Our proposed project allows user to control the speed and direction of a stepper motor remotely from anywhere. The system works by receiving stepper motor control instructions from user through an SMS message. Our system consists of a gsm modem along microcontroller and motor driver to control the motor. Once the user sends an SMS message it is received by the gsm modem receiver. The modem not sends this message to the microcontroller. The microcontroller decrypts the message and them checks the command. Based on the command received the microcontroller sends out command signal to the motor driver IC. The motor driver now drives the stepper motor as per the signal received. We here provide the user with commands to operate the motor as needed that to remotely. By integrating GSM technology in it we allow the system to be used over long distances as desired. Our project brings forward an approach to run stepper motors remotely with ease.

HIGHLIGHTS

  • Stepper Motor can be controlled through SMS.
  • Whenever the GSM receives the SMS it controls the stepper Motor.
  • For Example, if we send ###FORWARD it will rotate stepper motor in Forward and Vice Verca.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • LCD
  • GSM Module
  • Stepper Motor
  • Motor Driver IC
  • Buzzer
  • Transformer

SOFTWARE REQUIREMENTS

  • Eagle
  • Arduino
