ALCOHOL DETECTION BASED SPEED CONTROL OF VEHICLE

Code 148 ALCOHOL DETECTION BASED SPEED CONTROL OF VEHICLE

4.00 out of 5
(2 customer reviews)

7,000.00 5,500.00

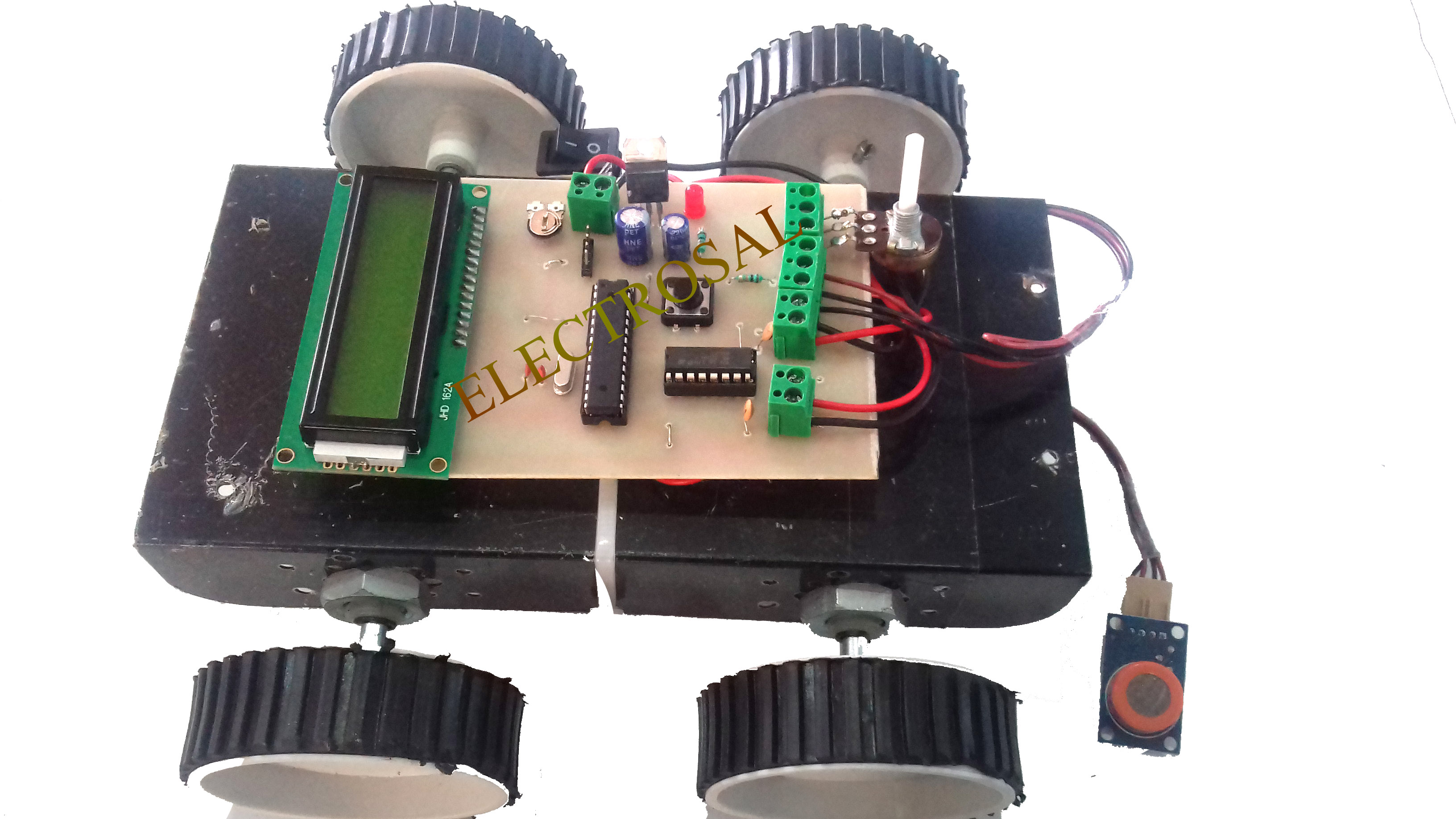

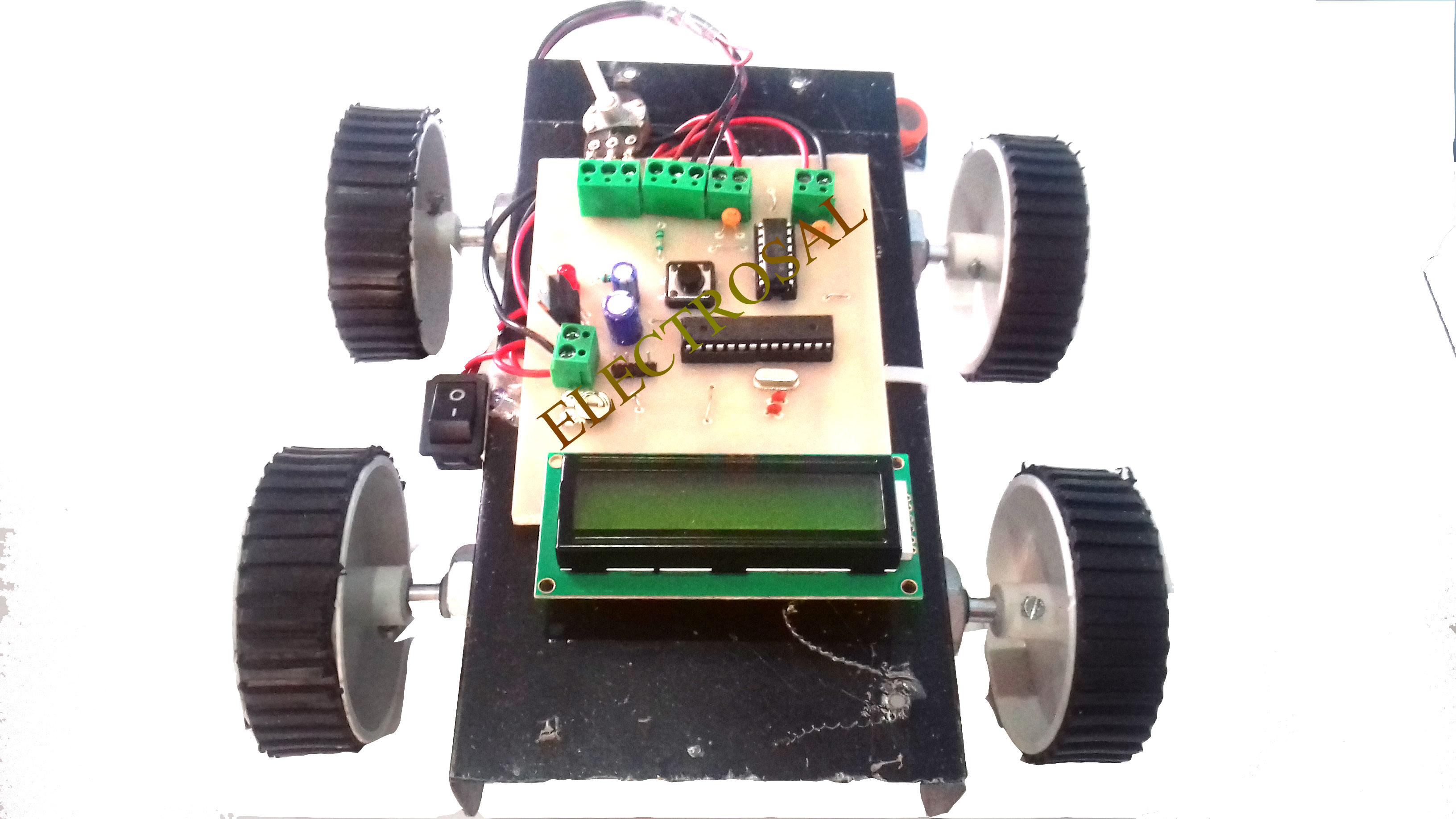

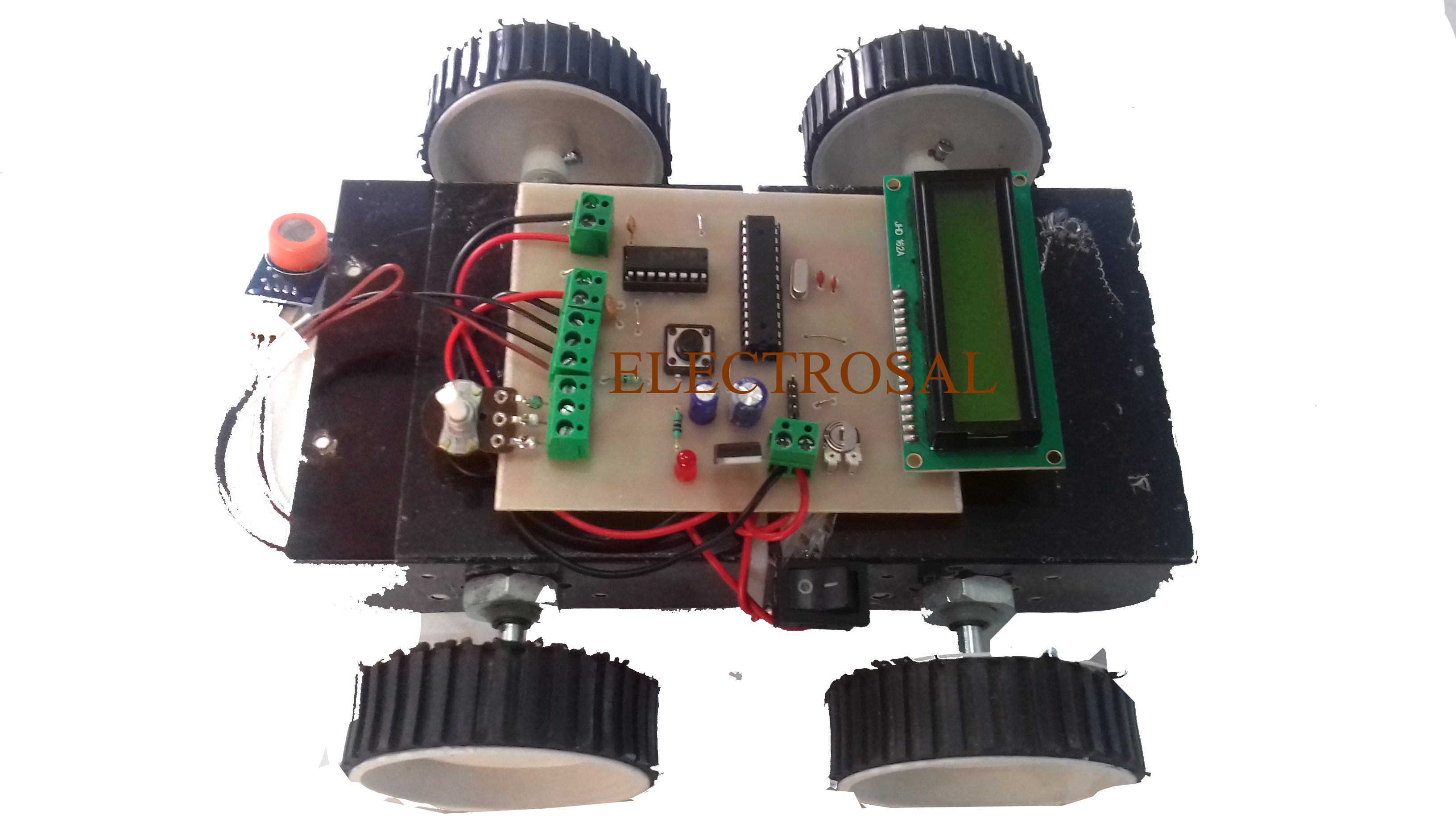

Ready-made Project

If You Are Short On Time
7,000.00 5,500.00
Add to cart - OR - See more options

The main aim of this project is to alcohol detection based speed control of vehicle measure alcohol level without any contact and determine its level using alcohol sensor.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 9,500.00 6,000.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 7,000.00 5,500.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 6,000.00 4,400.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio and video call support. 3,000.00 2,000.00

Description

The main aim of this project is to alcohol detection based speed control of vehicle measure alcohol level without any contact and determine its level using alcohol sensor.

The proposed system uses an alcoholic sensor which is placed ahead of the vehicle, function hall, meetings, and many private sectors. Alcohol sensor to detect the alcoholic level through the atmospheric air. If the alcohol level changes occur, then the sensor measures the level at a fixed point. Whenever the alcohol level increases above the set point then The whole system is controlled by the Arduino controller.

The project uses an Arduino board which is programmed to receive the input signal of varying alcohol conditions of the vehicle driver through a sensing arrangement. Once the controller receives this signal, it generates an output that drives for operating the system which controls the speed of the vehicle.

The concept in the future can be enhanced by integrating IoT technology, such that whenever an alcohol sense system switches on/off, and data will be sent to the website.

HIGHLIGHTS

  • The main aim of this project is to alcohol detection based speed control of vehicle
  • It will measure alcohol level without any contact
  • The whole system is controlled by the Arduino controller

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Alcohol Sensor
  • Arduino ic
  • L293D motor driver
  • LCD Display
  • chassy
  • Battery
  • Motor

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle

RESOURCES
