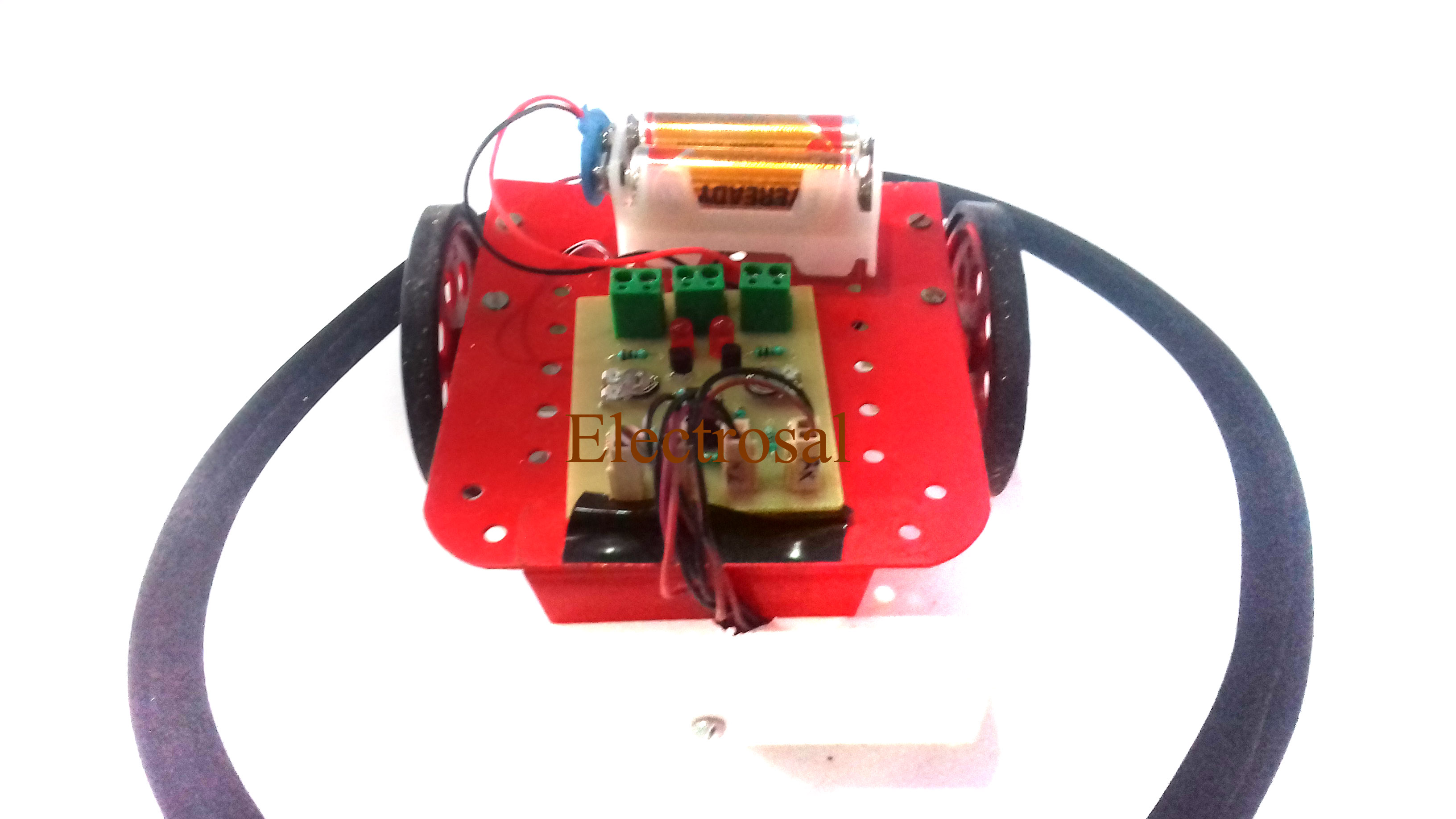

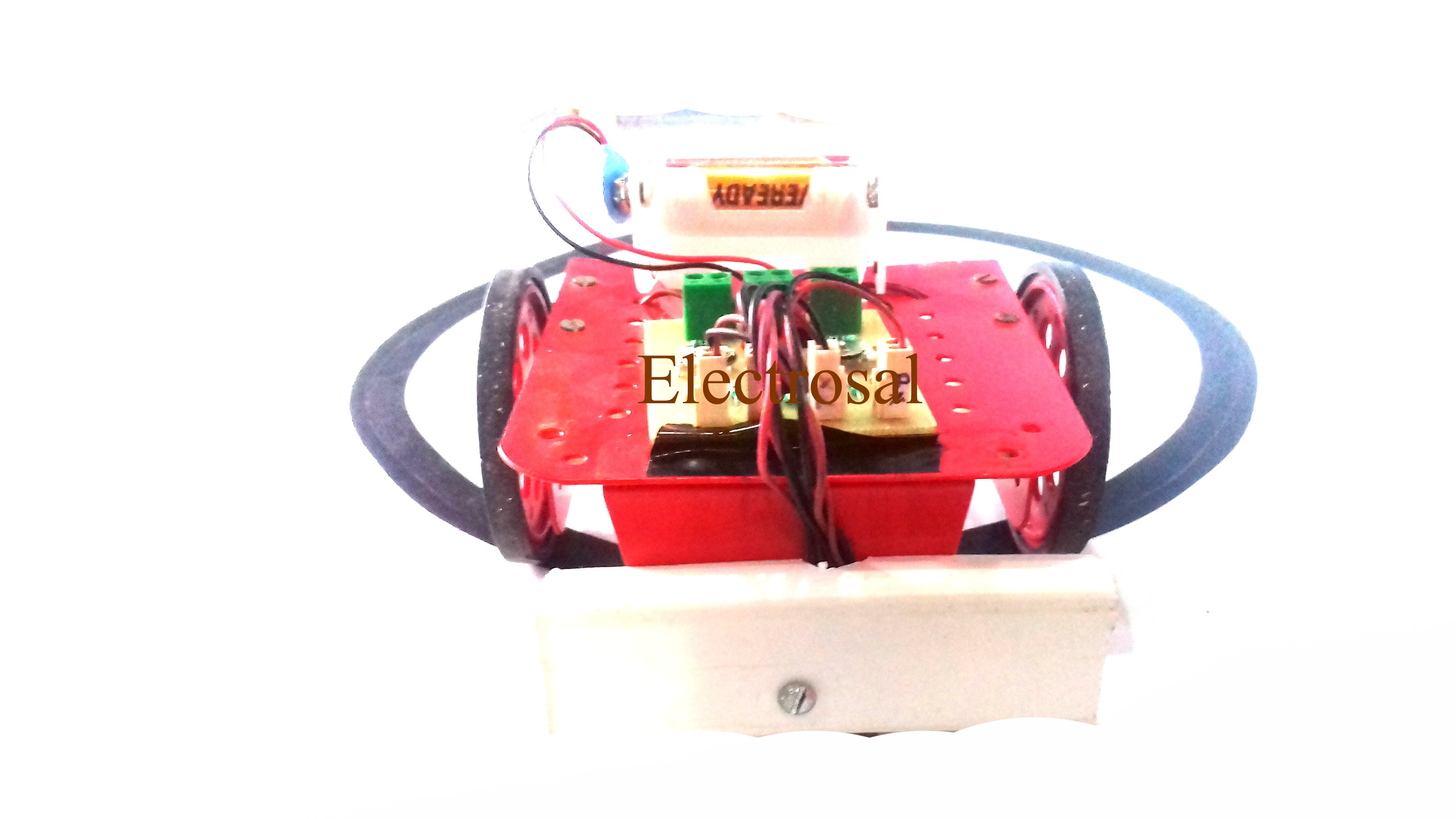

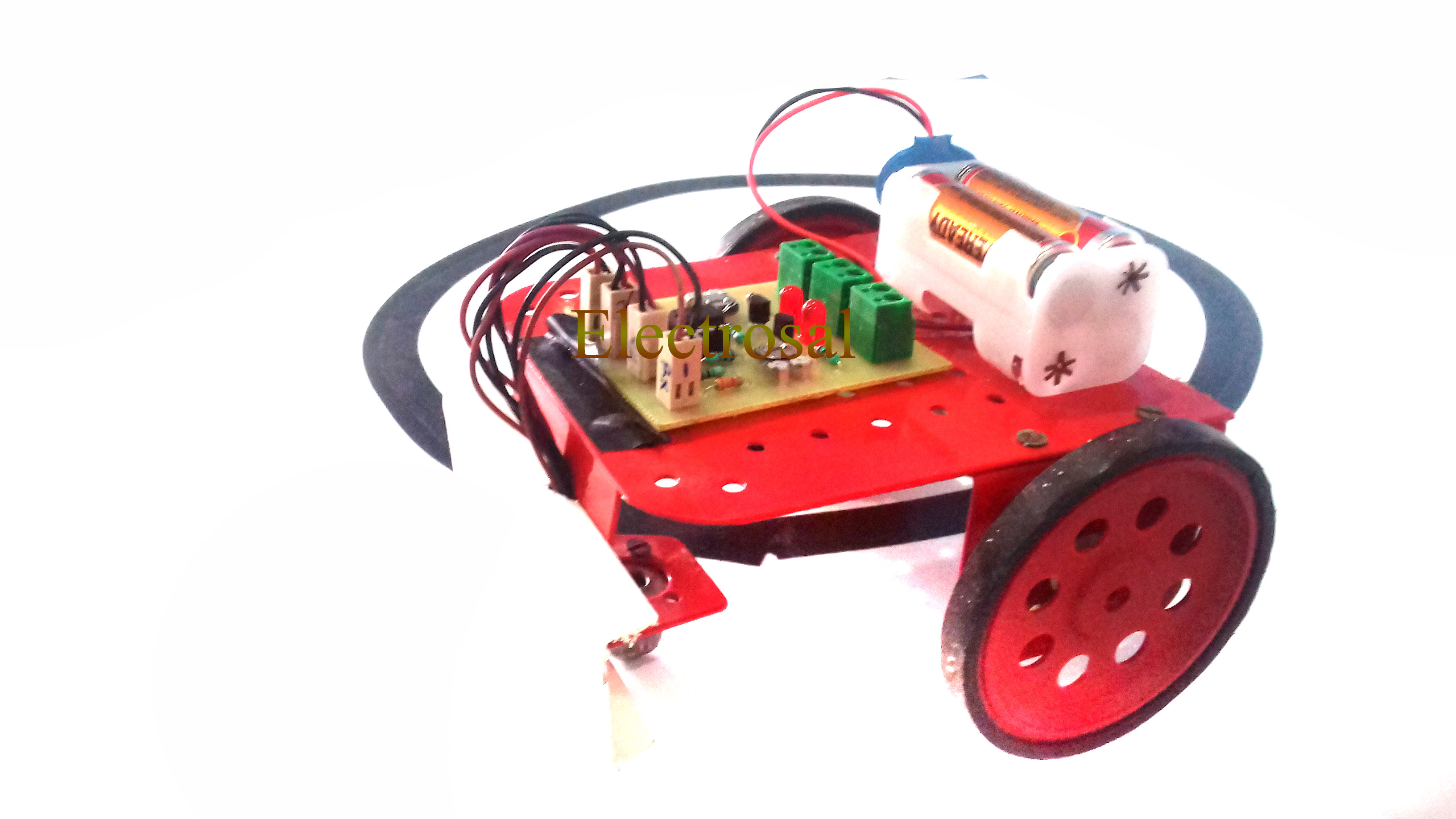

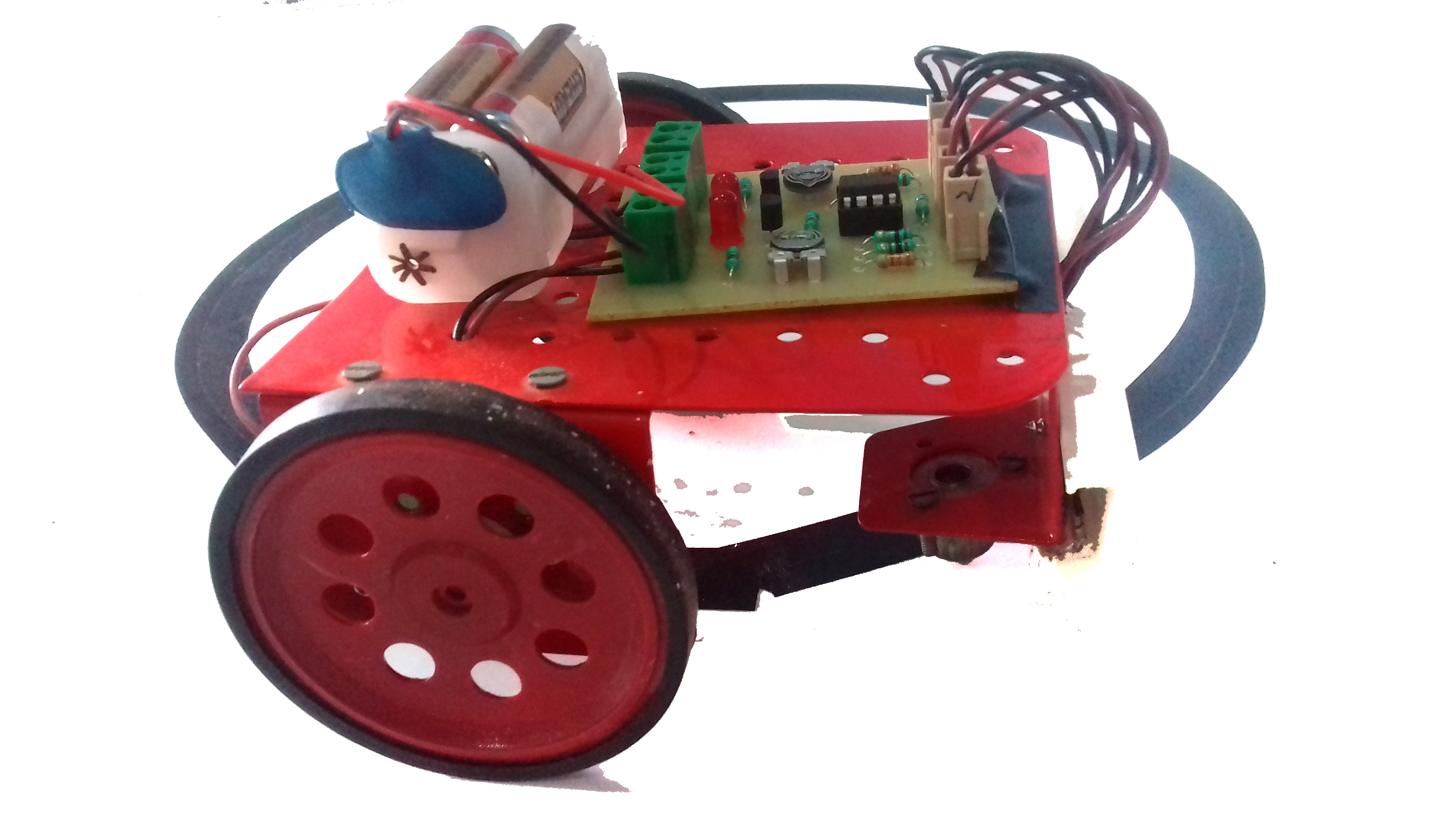

LINE FOLLOWING ROBOTIC VEHICLE

Code 60 LINE FOLLOWING ROBOTIC VEHICLE

5,100.00 3,500.00

The project is designed to develop a robotic vehicle that follows a specific path. This project doesn’t require a microcontroller for its operation. A pair of photo sensors comprising IR transmitter and photo diode is used to detect the specified path for its movement.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

7,200.00 3,800.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

5,100.00 3,500.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

4,400.00 3,400.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

2,200.00 1,200.00
For PCB

PCB
PCB,Circuit Diagram

2,000.00 1,100.00

Description

The project is designed to develop a robotic vehicle that follows a specific path. This project doesn’t require a microcontroller for its operation. A pair of photo sensors comprising IR transmitter and photo diode is used to detect the specified path for its movement.

Line follower robot is a useful robot that is used in ware houses, industries, and stores etc, where it follows a dedicated path. This proposed system of a line following robot fulfils the desired functionality and demonstrates the working of it. It uses a pair of photo sensors, comprising of one IR transmitter and a photo diode in each. It guides the robot to follow a specified path by giving appropriate signal to the switching transistors that drives the motors.

HIGHLIGHTS

  • The project is designed to develop a robotic vehicle that follows a specific path
  • This project uses an arduino board for its operation

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • Motors
  • photo sensors
  • IR transmitter & IR receiver

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle

RESOURCES
