PARKING ALLOTMENT WITH DISPLAY

Code 92 PARKING ALLOTMENT WITH DISPLAY

4.00 out of 5
(1 customer review)

9,800.00 4,500.00

Ready-made Project

If You Are Short On Time
9,800.00 4,500.00
Add to cart - OR - See more options

The project is designed to develop a density- based parking allotment system. This system indicates no entry to a vehicle to park when the parking area is fully occupied. Parking congestion is a severe problem in many major cities across the world and it has become a nightmare for the commuters in these cities.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

9,500.00 8,000.00
Ready-made Project
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

9,800.00 4,500.00
DIY Project Kit
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

8,000.00 6,000.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

1,700.00 1,500.00
For PCB

PCB
PCB,Circuit Diagram

2,200.00 1,200.00

Description

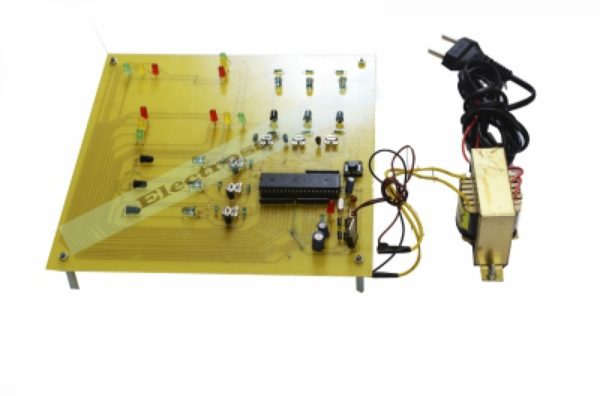

The project is designed to develop a density- based parking allotment system. This system indicates no entry to a vehicle to park when the parking area is fully occupied. Parking congestion is a severe problem in many major cities across the world and it has become a nightmare for the commuters in these cities. The proposed system uses a microcontroller of the 8051 family duly interfaced with sensors to detect the parked vehicle with Red, orange and green LEDs for display purpose. The sensors used in this project are IR and photodiodes pair which are in line of sight position across a parking lot entry point to detect vehicle density at any particular time. The density of the vehicle is measured in three zones based on which vehicles are allotted with indications for parking. The power supply consists of a step-down transformer 230/12V, which steps down the voltage to 12V AC. This is converted to DC using a Bridge rectifier. The ripples are removed using a capacitive filter, and it is then regulated to +5V using a voltage regulator 7805, which is required for the operation of different ICs and components. Furthermore, the project can be enhanced by adding a motor to stop and allow the vehicle as barricade.

HIGHLIGHTS

  • Density base parking allotment system
  • 8051 microcontroller is used to duty interfaced with sensor
  • The density is measured in three zones based on which vehicles are allotted
  • ┬áSensors used in this project are IR and photodiodes pair

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Micro controller
  • IR sensors
  • Led’s
  • Transformer

SOFTWARE REQUIREMENTS

  • Keil
  • Eagle

RESOURCES
