ADVANCE ATM SECURITY SYSTEM

Code 287 ADVANCE ATM SECURITY SYSTEM

9,800.00 8,400.00

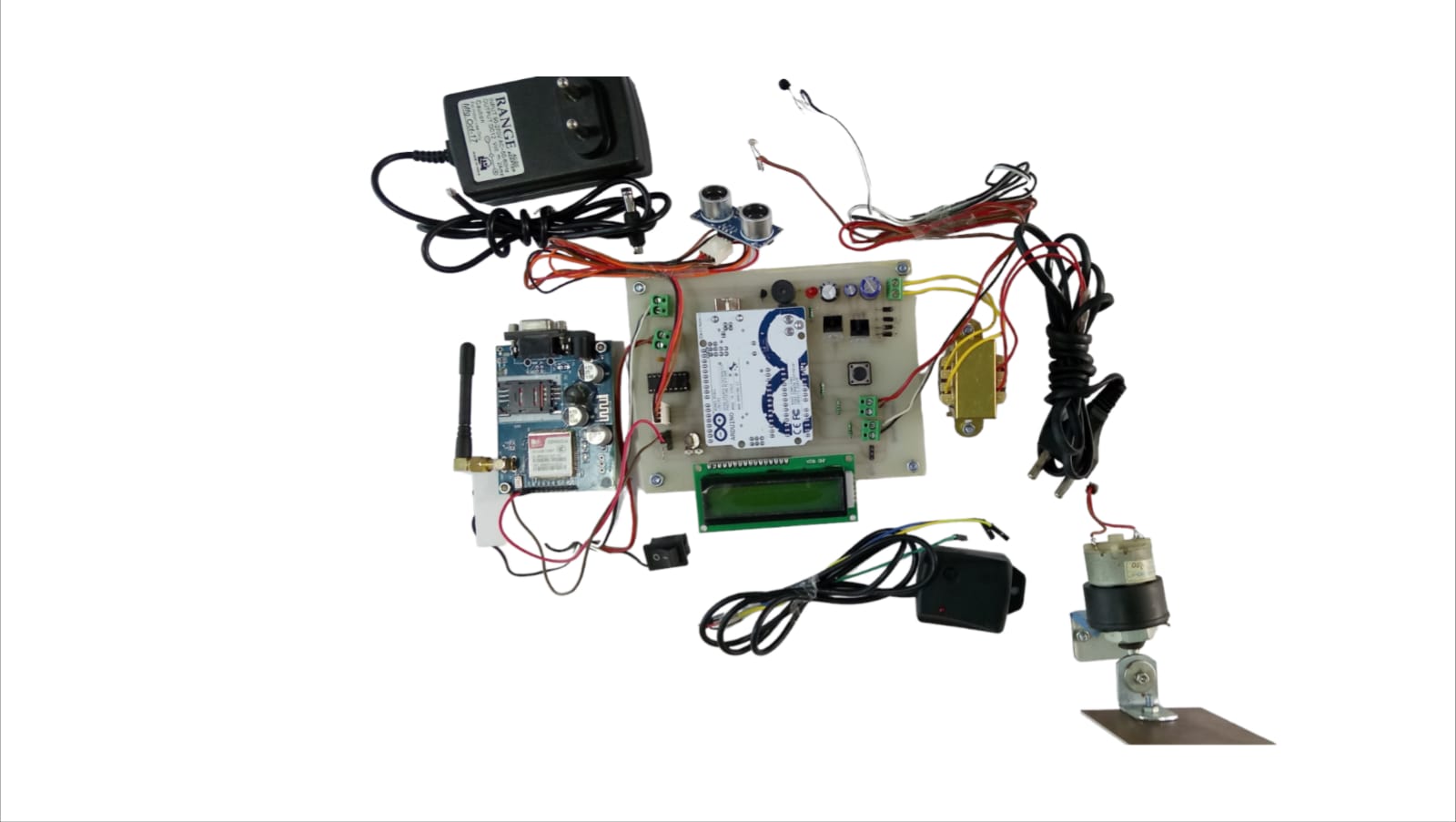

The Idea of Designing and Implementation of Security Based ATM theft project is born with the observation in our real life incidents happening around us. This project deals with prevention of ATM theft from robbery. So overcome the drawback found in existing technology in our society. Vibration sensor is used here which senses vibration produced when ATM machine is hammered. This system uses Arduino based system to process real time data collected using the vibration sensor. Once the vibration is sensed the beep sound will occur from the buzzer. DC Motor is used for closing the door of ATM and send with the message to the nearby police station and corresponding authorized person through the GSM.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

11,200.00 9,500.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

9,800.00 8,400.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

8,400.00 7,700.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

3,500.00 2,000.00
For PCB

PCB
PCB,Circuit Diagram

2,900.00 1,000.00

Description

The Idea of Designing and Implementation of Security Based ATM theft project is born with the observation in our real life incidents happening around us. This project deals with prevention of ATM theft from robbery. So overcome the drawback found in existing technology in our society. Vibration sensor is used here which senses vibration produced when ATM machine is hammered. This system uses Arduino based system to process real time data collected using the vibration sensor. Once the vibration is sensed the beep sound will occur from the buzzer. DC Motor is used for closing the door of ATM and send with the message to the nearby police station and corresponding authorized person through the GSM.

We are placing ultrasonic sensor so it will be continuously measuring the distance of this ATM machine from the place where we are located. So someone tries to dislocate this that time ultrasonic sensor will be sensed & it will send a sms to authorized person. Also we are placed LDR below the ATM module so it will be realising dark. So whenever someone dislocates ATM module light rays are fall on that LDR sensor & it will sense that someone is trying for robbery so the sms will be sent to authorized person. So we have made an arrangement such that once the sensors are sensed the shutter will be closed automatically so that thief cannot escape from the place. When authorized person will reached at the place at that time until the hidden switch is not pressed the door remains locked. When he presses that switch the door gets unlock so we can easily catch the thief. Suppose due to some activity fire is caught in ATM system that will be sensed by fire sensor & we will be receiving sms that it has caught fire. Hear LCD display board using showing the output of the message continuously. This will prevent the robbery and the person involving in robbery can be easily caught.

HIGHLIGHTS

  • The Idea of Designing and Implementation of Security Based ATM theft project is born with the observation in our real life incidents happening around us.
  • This project deals with prevention of ATM theft from robbery.
  • So overcome the drawback found in existing technology in our society.
  • We are placing ultrasonic sensor so it will be continuously measuring the distance of this ATM machine from the place where we are located.
  • This will prevent the robbery and the person involving in robbery can be easily caught.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino UNO3
  • LDR Sensor
  • Thermistor Sensor
  • Vibrator Sensor
  • Ultrasonic Sensor

SOFTWARE REQUIREMENTS

  • Eagle
  • Arduino

RESOURCES
