ADVANCE GREEN HOUSE WITHOUT MICROCONTROLLER

Code 286 ADVANCE GREEN HOUSE WITHOUT MICROCONTROLLER

4.00 out of 5
(2 customer reviews)

9,600.00 8,500.00

Ready-made Project

If You Are Short On Time
9,600.00 8,500.00
Add to cart - OR - See more options

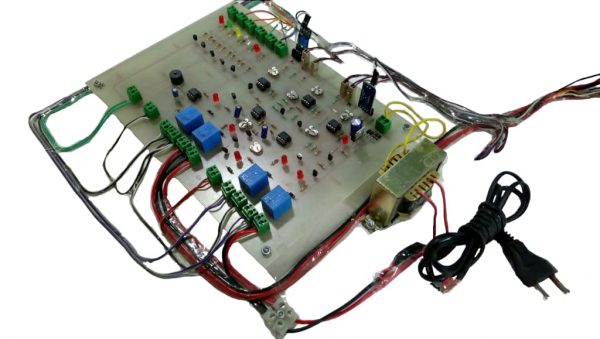

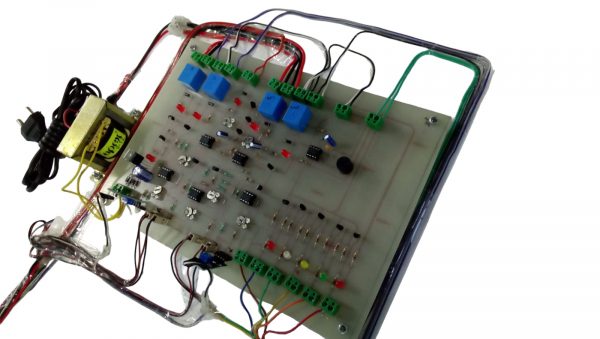

This project is designed to monitor the green house using Comparator IC. Various sensors are used to monitor the system. The sensors used are Rain sensor, Soil moisture sensor, LDR, wired security sensor, water level indicator, IR sensor. When the soil of the green house becomes dry the pump will turn on through which the water is let into the soil and the soil regains its moisture. While supplying the water to the dry soil the water level in tank will be reducing simultaneously which will be indicated by the LED’s.
So when the water level reduces below the threshold level the pump will off automatically to avoid dry run.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 11,500.00 10,000.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 9,600.00 8,500.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 8,500.00 7,500.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio call support. 3,000.00 2,000.00
For Simulation
Proteus Simulation file, Program Coad, Hex File, Explanatory Video, Google Meet Or Zoom Meet Support. 4,000.00 3,000.00

Description

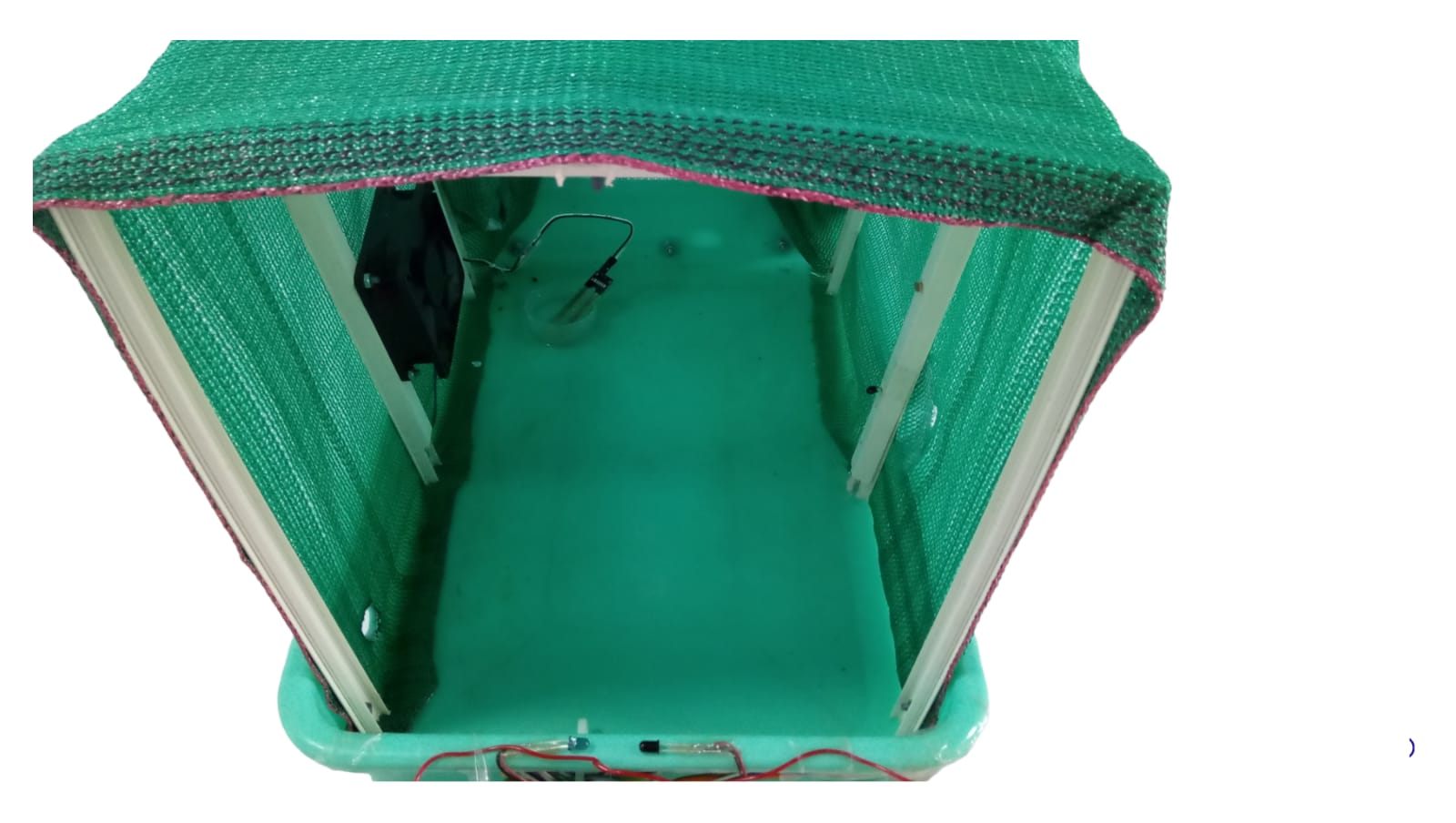

This project is designed to monitor the green house using Comparator IC. Various sensors are used to monitor the system. The sensors used are Rain sensor, Soil moisture sensor, LDR, wired security sensor, water level indicator, IR sensor. When the soil of the green house becomes dry the pump will turn on through which the water is let into the soil and the soil regains its moisture. While supplying the water to the dry soil the water level in tank will be reducing simultaneously which will be indicated by the LED’s.
So when the water level reduces below the threshold level the pump will off automatically to avoid dry run.

During day time when someone tries to enter into system without permission the wire security placed near the gate will be sensed . When the wire is break then the buzzer starts beeping and the pump will turn on and extinguishes the fire. When the temperature of the green house increases the fan turns on and brings down the temperature and to normal condition.
LDR will be continuously sensing the light intensity, during night time the light intensity will fall. So the lamp will turn on during night time when someone tries to enter into the system without permission. The IR sensor placed near the gate will be sensed. Whenever it is raining it is detected by the rain sensor and the buzzer beeps as an alert system.

HIGHLIGHTS

  • This project is designed to monitor the green house using Comparator IC.
  • The sensors used are Rain sensor, Soil moisture sensor, LDR, wired security sensor, water level indicator, IR sensor.
  • So when the water level reduces below the threshold level the pump will off automatically to avoid dry run.
  • During day time when someone tries to enter into system without permission the wire security placed near the gate will be sensed .

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Comparator IC
  • Transformer
  • Temperature Sensor
  • Rain Sensor
  • LDR Light Sensor
  • IR Sensor
  • Soil moisture Sensor
  • AC Water Pump
  • Relay
  • Timer
  • Fan

SOFTWARE REQUIREMENTS

  • Eagle
  • Proteus

RESOURCES
