ADVANCED IOT BASED GREEN HOUSE

Code 181 ADVANCED IOT BASED GREEN HOUSE

8,500.00 7,400.00

This Advance project is designed to monitor the green house using Arduino controller. Various sensors are used to monitor the system. The sensors used are Rain sensor, Soil moisture sensor, DHT 11 sensor, fire detector and LDR. Multiple sensors are used to control various parameters. Continuous monitoring of the green house parameter and their conditions. And further Data will be uploaded over the IOT.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

11,400.00 8,700.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

8,500.00 7,400.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

7,200.00 6,200.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

3,500.00 2,800.00
For PCB

PCB
PCB,Circuit Diagram

1,200.00 1,000.00

Description

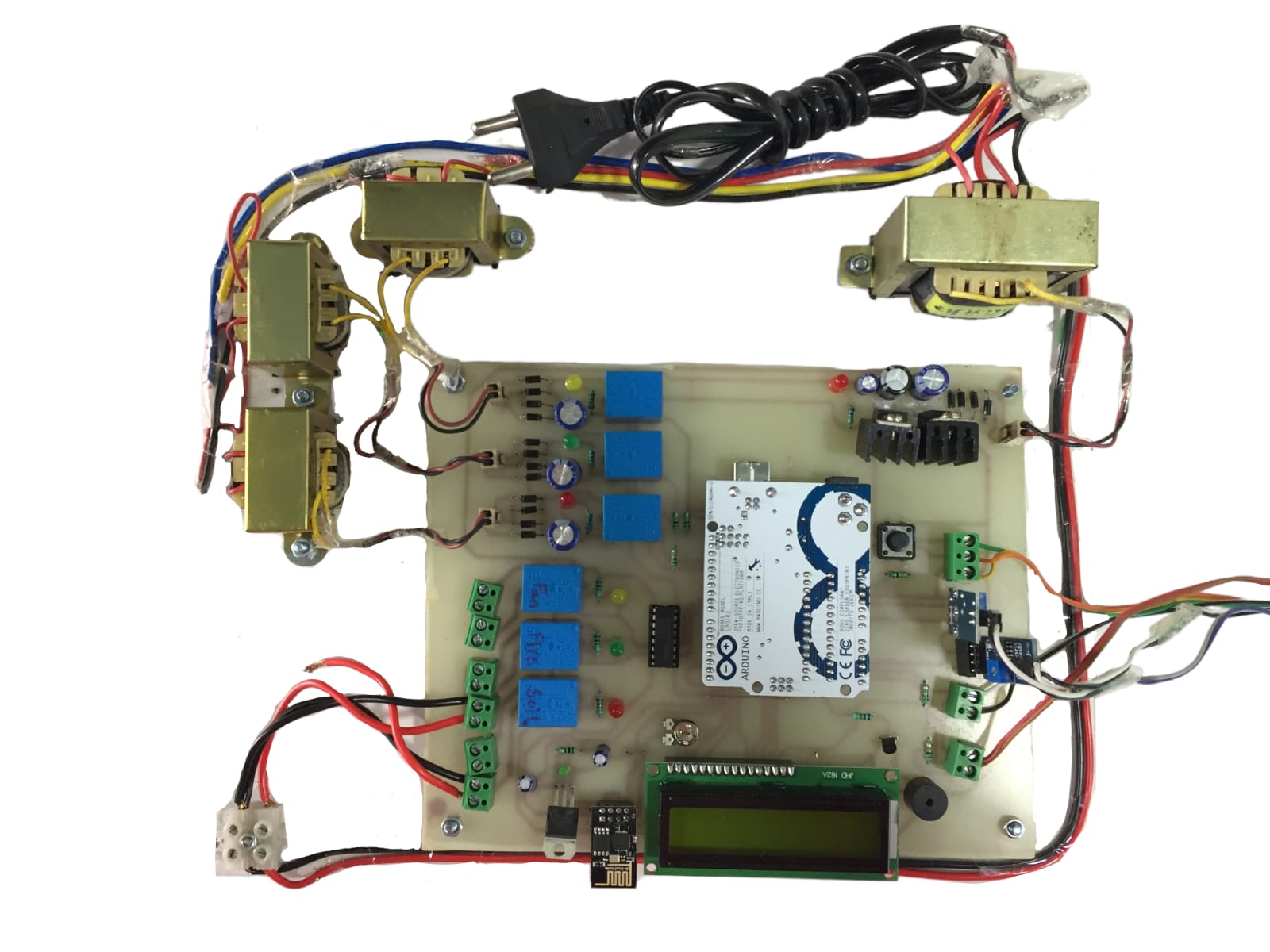

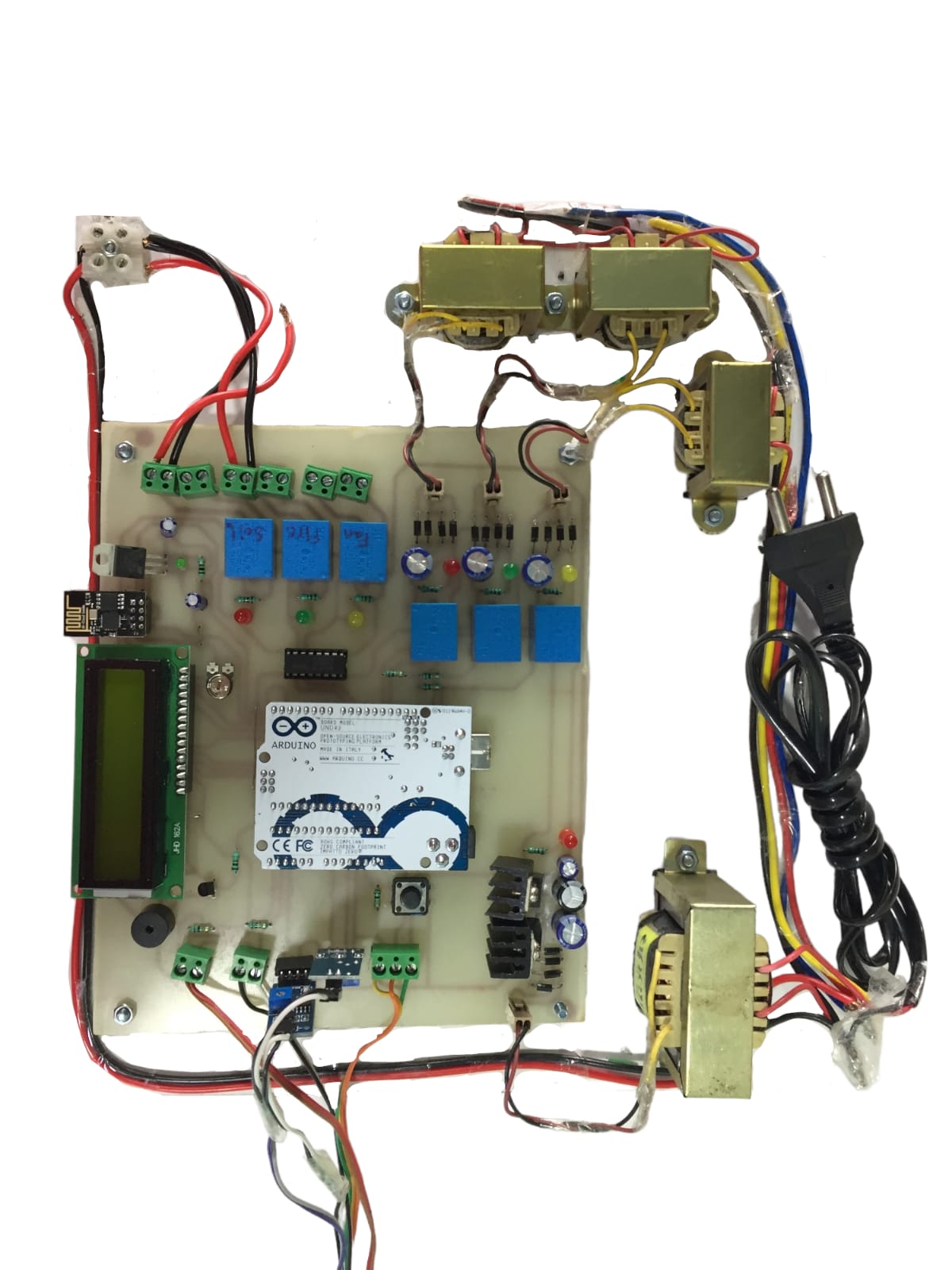

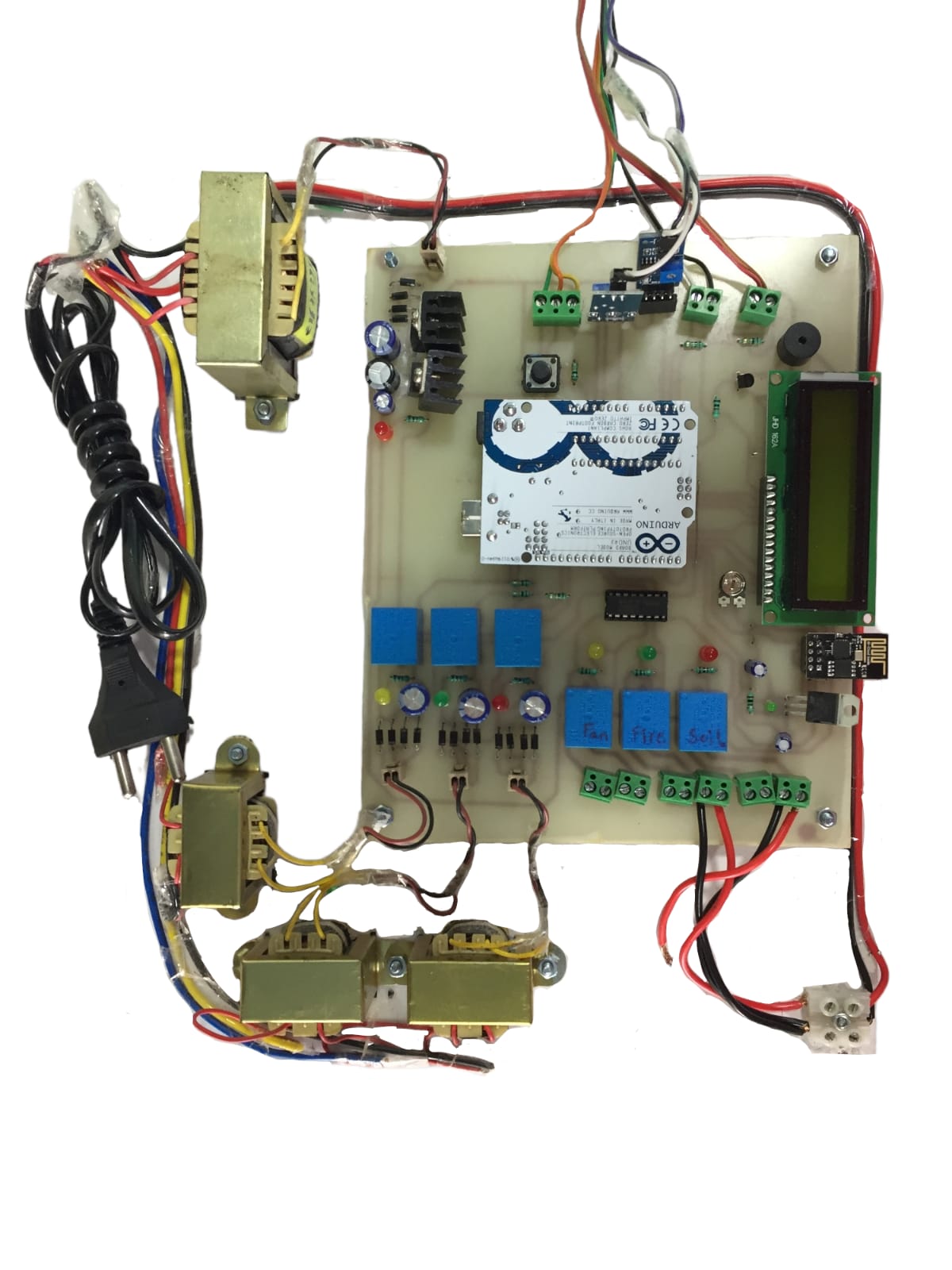

This project is designed to monitor the green house using Arduino controller. Various sensors are used to monitor the system. The sensors used are Rain sensor, Soil moisture sensor, DHT 11 sensor, fire detector and LDR. When the soil of the green house becomes dry the LCD displays the message that the soil is dry and the pump will turn on through which the water is let into the soil and the soil regains its moisture. When the fire is detected the buzzer starts beeping and the pump will turn on and extinguishes the fire. When the temperature and humidity of the green house increases the fan turns on and brings down the temperature and humidity to normal condition.
Availability of the 3 phase (3 phases available or 3 phase not available) is displayed on the LCD. Light intensity of the green house (low, medium, high) is also displayed on the LCD. Whenever it’s raining it is detected by the rain sensor and the buzzer beeps as an alert system. The readings of the DHT sensor, rain sensor, soil moisture sensor, fire sensor and the condition of the pumps whether “ON” or “OFF” will be uploaded over the IOT page. The collection of data at any instant of time will be available on the page after some time.

(NOTE: Pumps and fan are turned on through their respective relays)

HIGHLIGHTS

• Advance Project to control and monitor the Green House.
• Reduce the Direct human intervention into green house.
• Multiple sensors are used to control various parameter.
• Continuous monitoring of the green house parameter and their conditions.
• Data will be uploaded over the IOT.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

• Arduino board.
• LCD display.
• Relays.
• Switches.
• Transformers.
• Wires.

SOFTWARE REQUIREMENTS

• Eagle
• Arduino

RESOURCES
