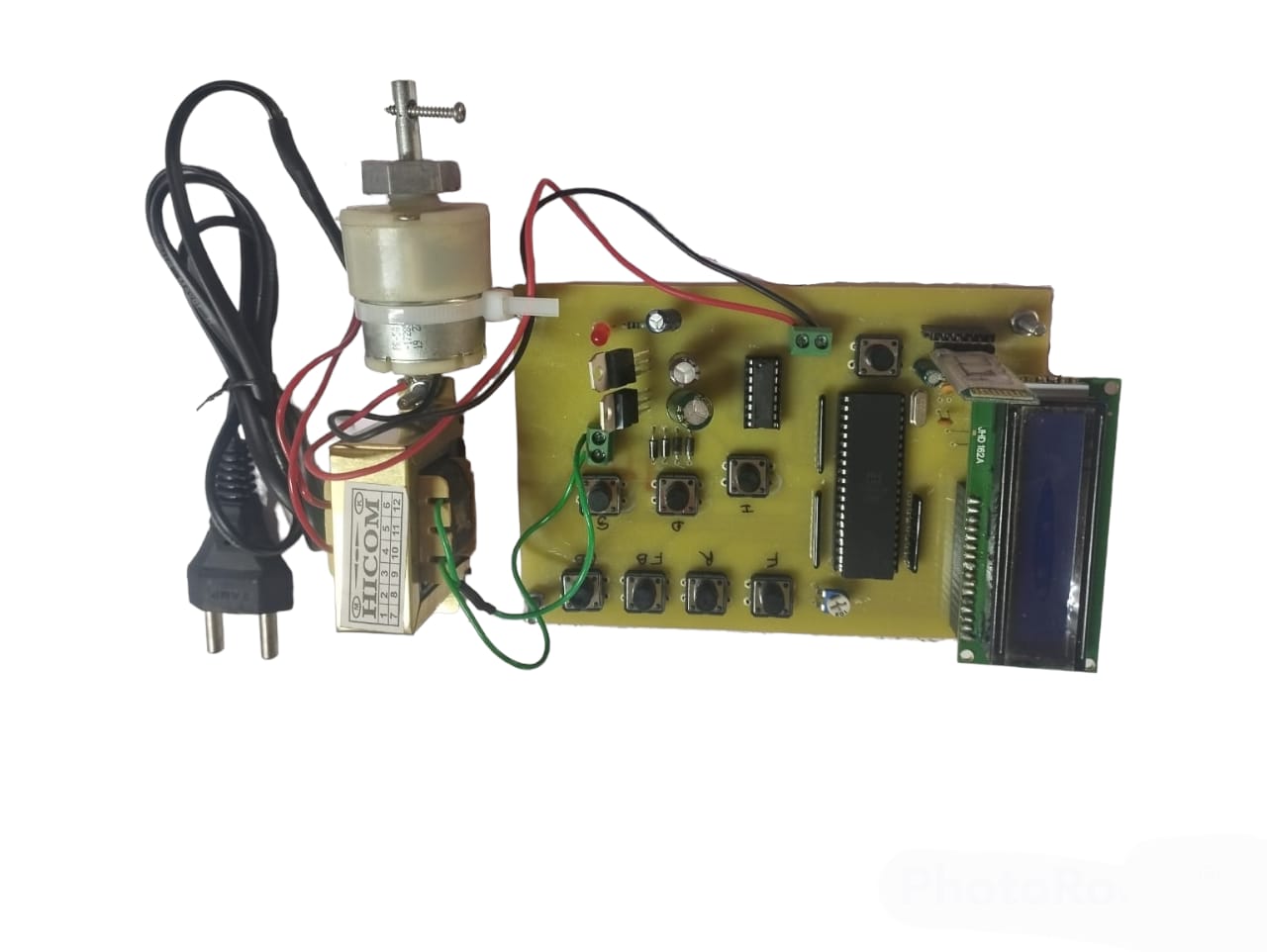

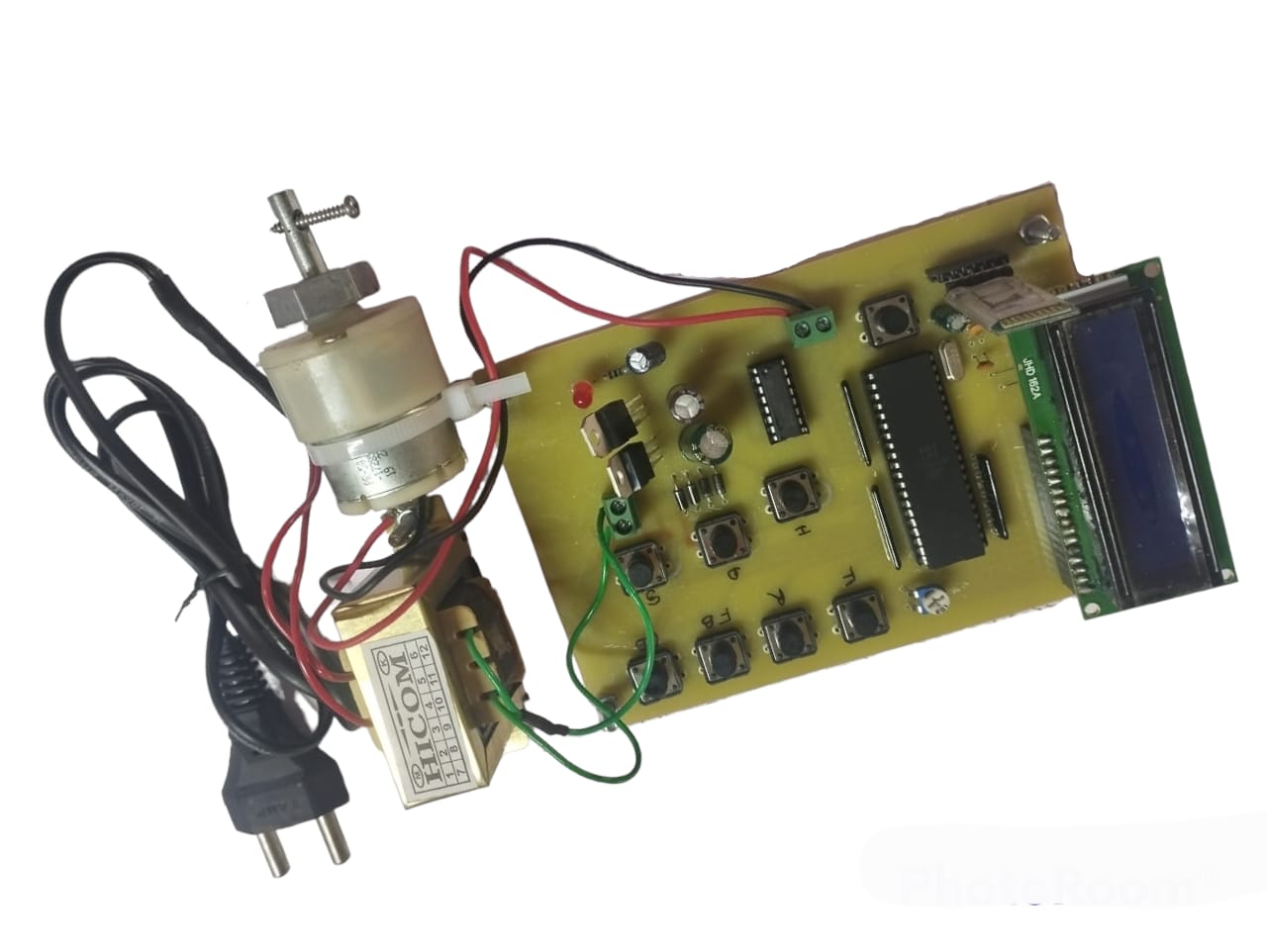

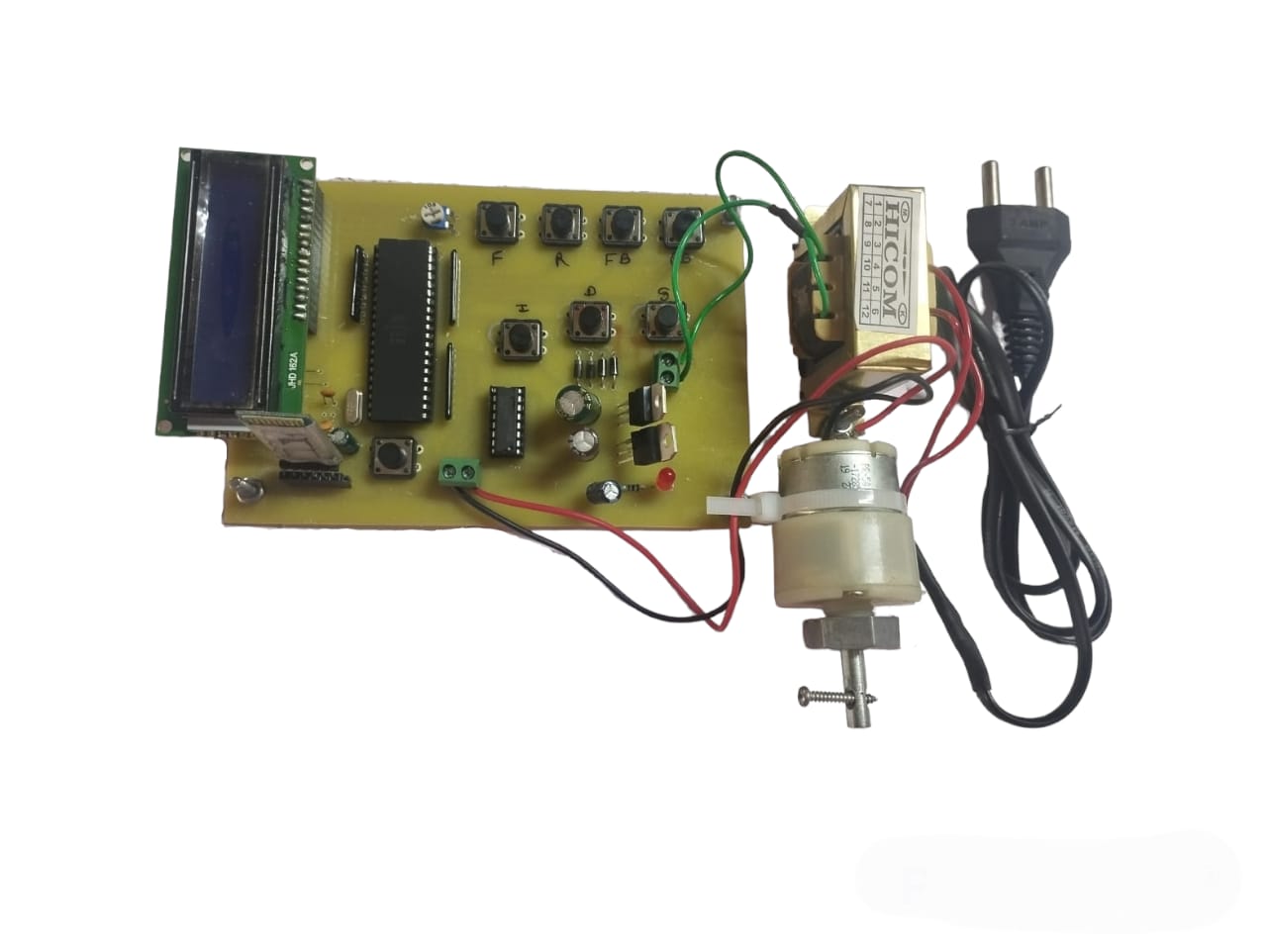

Code 518 Four Quadrant Operation Or Speed Control Of DC Motor IN Both Direction Using Microcontroller And Android

ABSTRACT

The project is designed to develop four-quadrant-speed-control system for a DC motor with PWM. The motor is operated in four quadrants ie, clockwise; counter clock-wise, forward brake and reverse brake. Four-quadrant operation of a DC motor is best suited for industries wherein motors are used as per the requirement. They can rotate in clockwise, counter-clockwise directions. Also one can apply brakes for instantaneous stop in both the directions. In case of specific operation in industrial environment, a motor needs to be stopped immediately. In such a scenario, this proposed system is very useful as forward brake and reverse brake are its integral features. The instantaneous brake in both the directions is possible due to the application of reverse voltage to the running DC motor for a brief period. The speed control of the motor is also be achieved with the PWM pulses generated by the microcontroller. The microcontroller used in this project is from the 8051 family. Few push buttons and Bluetooth interfaced to the microcontroller are provided for the operation of the motor and for the input signal to the motor and in turn control the speed of the motor through the motor driver IC. The speed control feature by the push button and Bluetooth operation is also available in this project. This project can be enhanced by using high power electronic devices to operate high capacity DC motors. Regenerative braking for optimizing power consumption can also be incorporated.

Note

Four quadrant operation or speed control of dc motor in both direction using microcontroller and android phoneis the project of a good Price for the electronics engineering project. Core Electronics engineering project it is a very comparative engineering project. It is a very good BE final year and diploma project.it is project for microcontroller based project idea for the electrical projects it is a project for the android based and embedded based projects.

The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electronics students ‘and core electronics student’s electrical final year for the golden opportunity.

Four quadrant operation or speed control of dc motor in both direction using microcontroller and android phoneis an easy project and idea for the electronics, electrical core electronics degree and diploma base students & 100% output is done.
