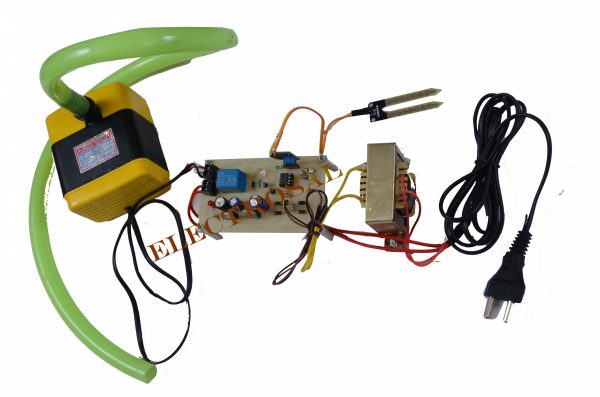

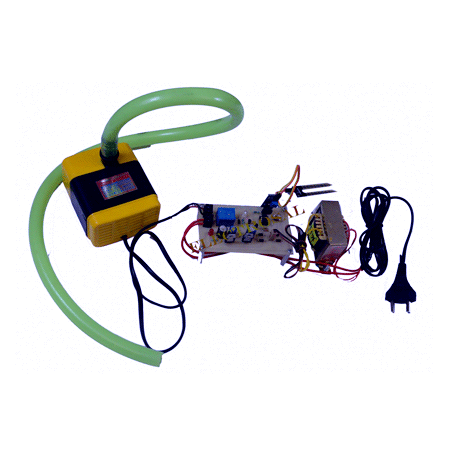

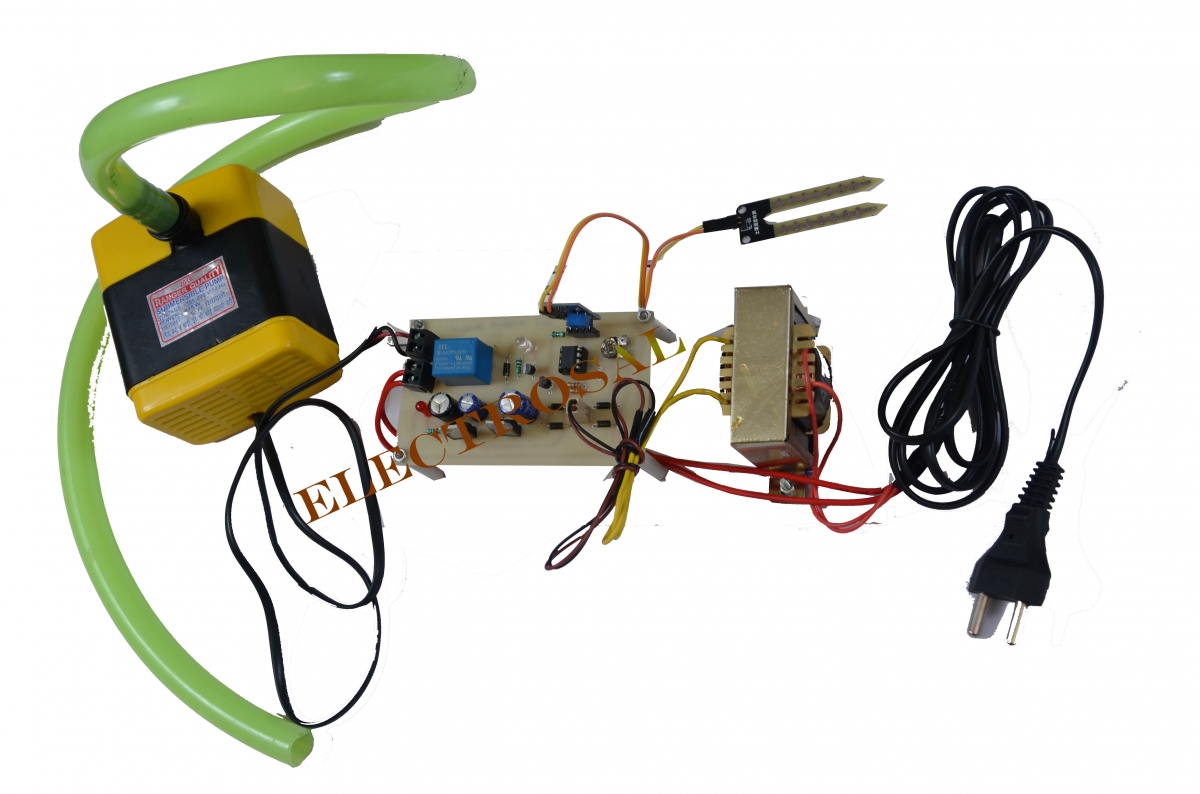

AUTOMATIC IRRIGATION SYSTEM ON SENSING SOIL MOISTURE CONTENT

Code 87 AUTOMATIC IRRIGATION SYSTEM ON SENSING SOIL MOISTURE CONTENT

4.80 out of 5
(5 customer reviews)

5,200.00 3,400.00

The project is designed to develop an automatic irrigation system that switches a pump motor on or off upon sensing the moisture content of the soil. In the field of agriculture, use of proper method of irrigation is important. The advantage of using this method is to reduce human intervention and still ensure proper irrigation.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

5,400.00 3,600.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

5,200.00 3,400.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

4,800.00 3,300.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

1,100.00 500.00
For PCB

PCB
PCB, Circuit Diagram

1,500.00 800.00

Description

The project is designed to develop an automatic irrigation system that switches a pump motor on or off upon sensing the moisture content of the soil. In the field of agriculture, use of proper method of irrigation is important. The advantage of using this method is to reduce human intervention and still ensure proper irrigation. The project uses an voltage comparison board which is designed to receive the input signal of varying moisture condition of the soil through a sensing arrangement. This is achieved by using an op-amp as comparator which acts as interface between the sensing arrangement and the relay switch. Once the comparator receives this signal, it generates an output that drives a relay for operating the water pump. The sensing arrangement is made by using two stiff metallic rods or a 2 tracked PCB inserted into the field. The connections from them are interfaced to the comparison unit. The concept in future can be enhanced by integrating GSM technology and controller, such that whenever the water pump switches on/off, an SMS is delivered to the concerned person regarding the status of the pump. We can also control the pump through SMS

HIGHLIGHTS

  • Pump is ON and OFF depends sensing the moisture content of the soil
  • Proper method is used in irregation
  • Op-amp comparator is interfaced between sensing arrangement and relay

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Comparator
  • water pump
  • Soil moisture sensor
  • transformer
  • relay

SOFTWARE REQUIREMENTS

RESOURCES
