HEALTH MONITORING OF PATIENT OVER IOT

Code 298 HEALTH MONITORING OF PATIENT OVER IOT

18,700.00 14,000.00

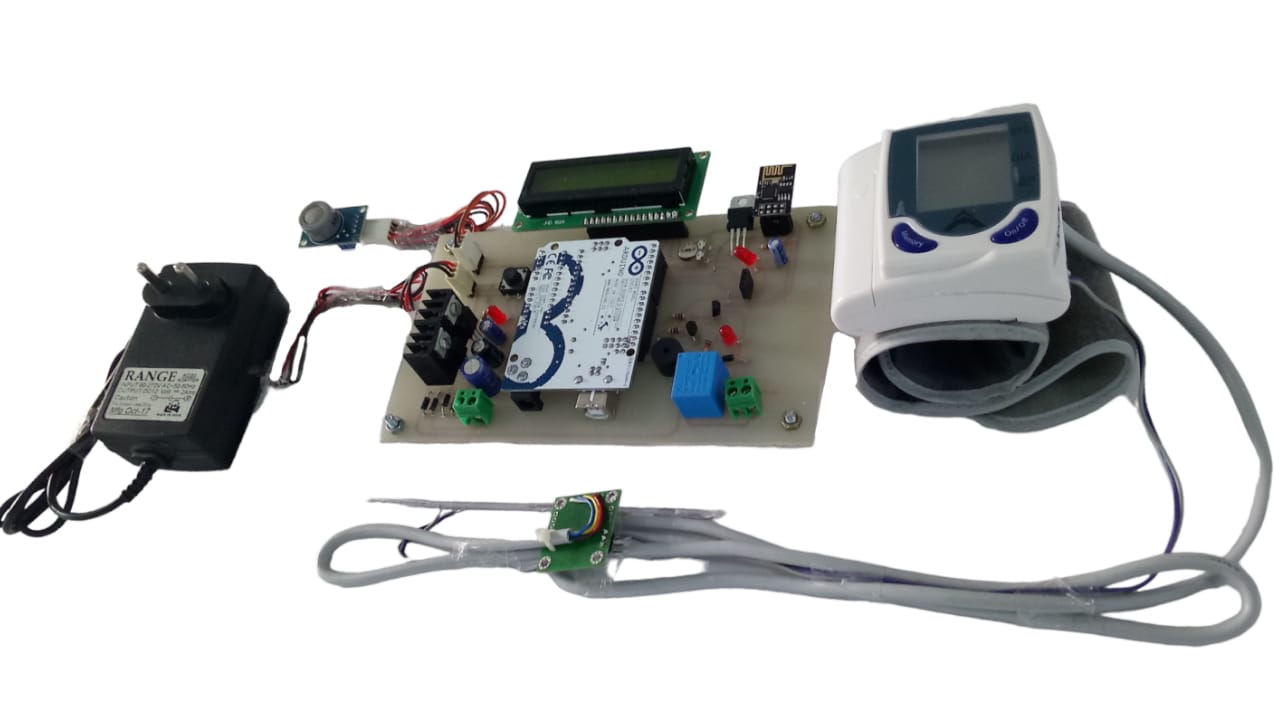

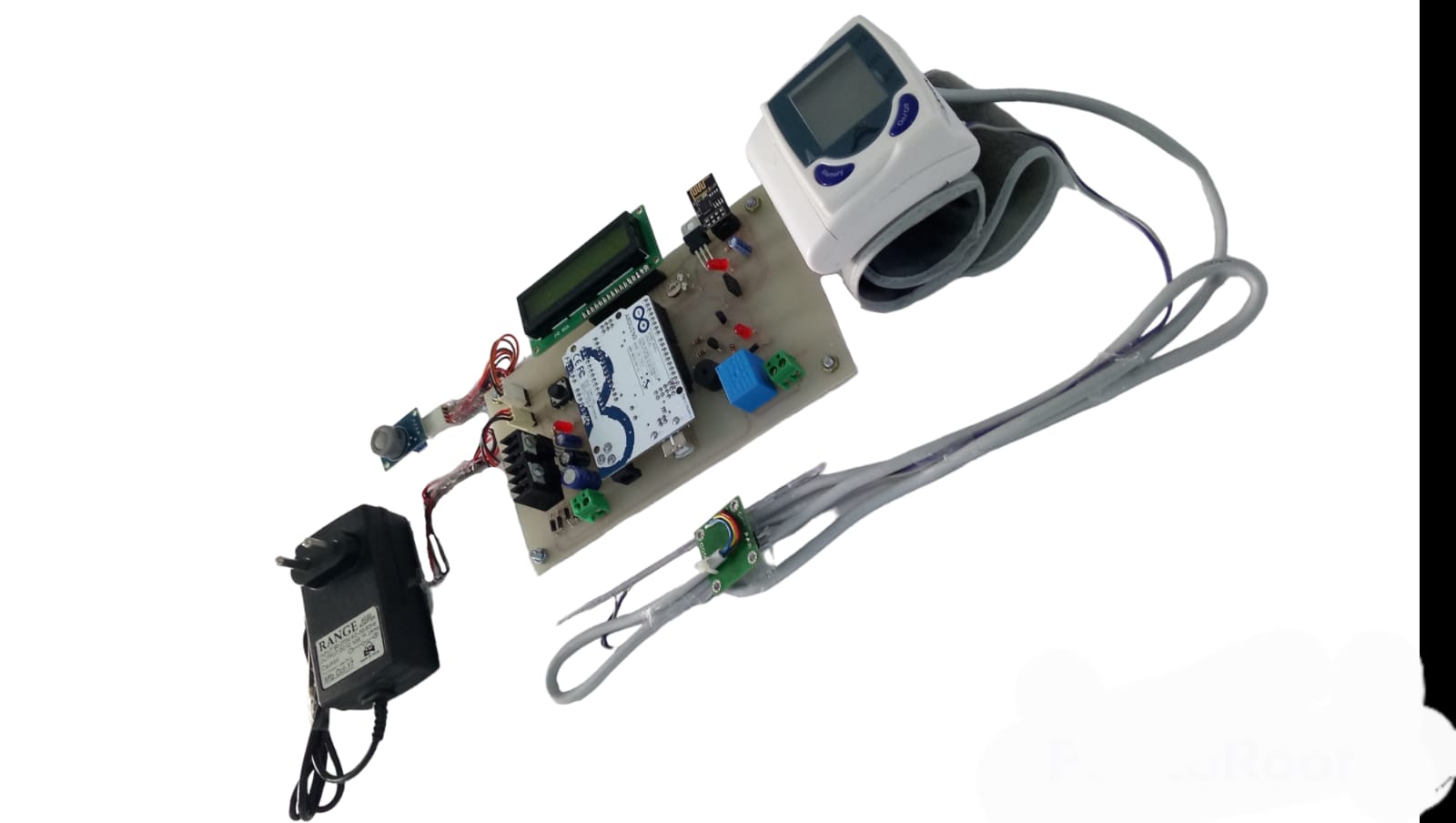

In this proposed system, we are monitoring the patient’s health by using arduino board & sensors. Here we are using adapter for power supply even you can use 2 amp transformer. Blood pressure & heartbeat sensor, MQ-7 sensor, temperature sensor, Wi-Fi module, buzzer and LCD display these are also the hardware parts of this projects. By using temperature sensor we can monitor the patient’s temperature. For monitoring the air quality of the room we are using MQ-7 sensor. With the help of heartbeat & blood pressure sensor we can read the heartbeat & B.P respectively.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

19,500.00 16,000.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

18,700.00 14,000.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

16,400.00 12,000.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

5,800.00 3,500.00
For PCB

PCB
PCB,Circuit Diagram

2,900.00 1,000.00

Description

In this proposed system, we are monitoring the patient’s health by using arduino board & sensors. Here we are using adapter for power supply even you can use 2amp transformer. Blood pressure & heartbeat sensor, MQ-7 sensor, temperature sensor, Wi-Fi module, buzzer and LCD display these are also the hardware parts of this projects. By using temperature sensor we can monitor the patient’s temperature. For monitoring the air quality of the room we are using MQ-7 sensor. With the help of heartbeat & blood pressure sensor we can read the heartbeat & B.P respectively.



Once we “ON” the heartbeat & B.P sensor it will wait for a response, then whatever heartbeat & B.P may read by sensor that will be displayed on LCD. As we can’t read this continuously because the sensor may pressurized the hand of the patient so we are given the delay of 30sec.for demonstration purpose. In reality, depending upon the patient’s health you can increase the delay for 30min. / 1hr.  Even the temperature & air quality of the room will be displayed on LCD. This entire data can be uploaded over IOT through Wi-Fi module.  Depending on the delay the above cycle is repeated.

HIGHLIGHTS

  • In this proposed system, we are monitoring the patient’s health by using arduino board & sensors.
  • By using temperature sensor we can monitor the patient’s temperature.
  • For monitoring the air quality of the room we are using MQ-7 sensor.
  • Once we “ON” the heartbeat & B.P sensor it will wait for a response, then whatever heartbeat & B.P may read by sensor that will be displayed on LCD.
  • As we can’t read this continuously because the sensor may pressurized the hand of the patient so we are given the delay.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino UNO
  • Heartbeat & blood pressure sensor
  • Temperature sensor
  • MQ-7 sensor
  • Wi-Fi module

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle

RESOURCES
