The Humidity and Temperature Measurement System using Arduino

Code 188 The Humidity and Temperature Measurement System using Arduino

4,900.00 3,800.00

The project is designed to develop an automatic humidity and temperature measurement system that displays temperature . In enrolment, use of proper method of measurement is important. The advantage of using this method is to reduce human intervention.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

6,400.00 4,200.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

4,900.00 3,800.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

3,700.00 3,600.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

1,800.00 1,100.00
For PCB

PCB
PCB,Circuit Diagram

1,900.00 1,000.00

Description

The project is designed to develop an automatic humidity and temperature measurement system that displays temperature . In enrolment, use of proper method of measurement is important. The advantage of using this method is to reduce human intervention.

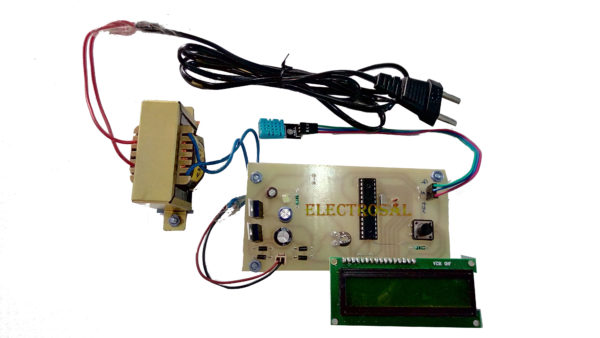

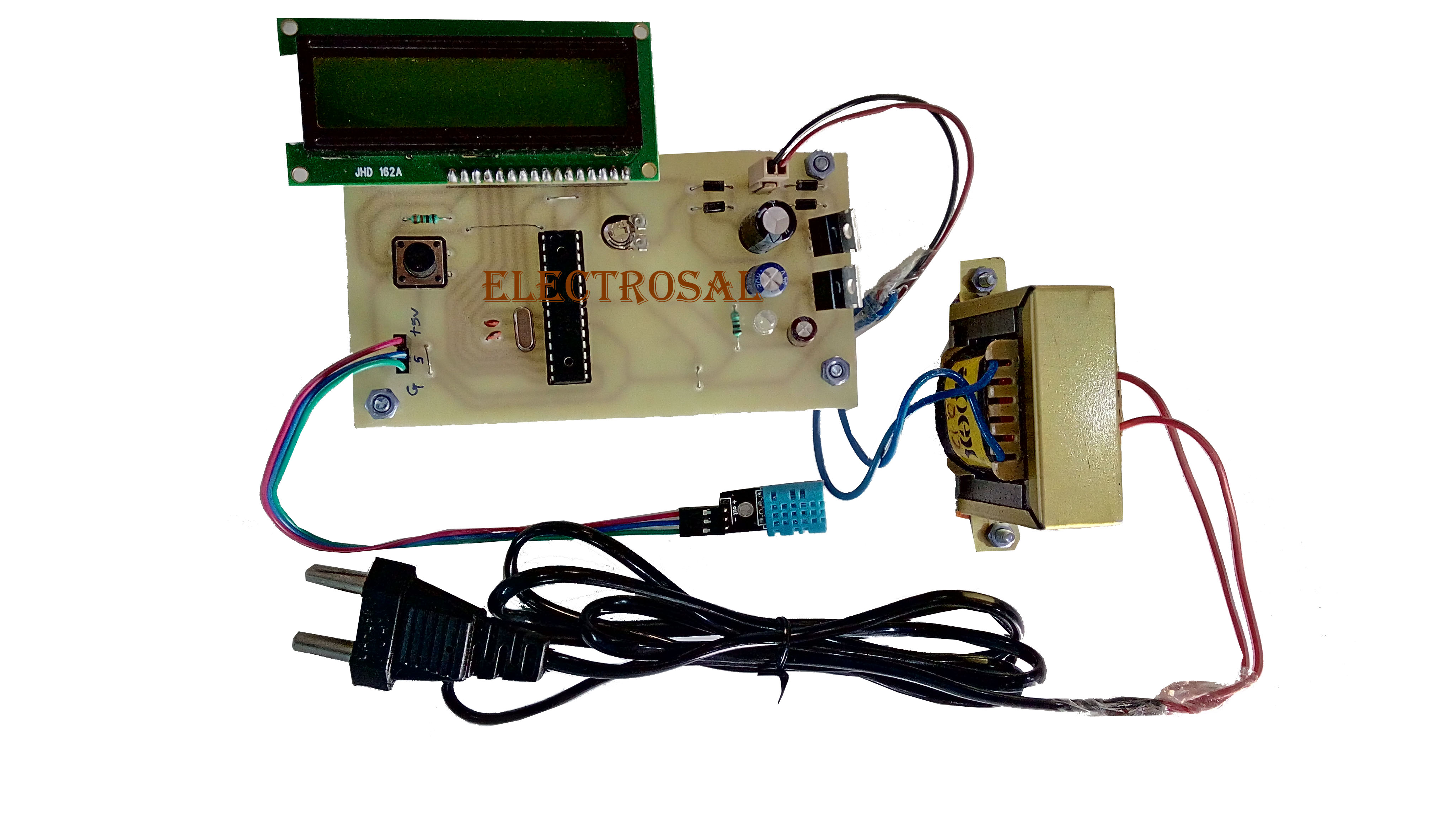

The project uses an Arduino board which is programmed to receive the input signal of varying moisture condition of the environment through a DHT11 sensor arrangement. This is achieved by interface between the sensing arrangement and the Arduino. Once the controller receives this signal, it generates an output that drives LCD display is also interfaced to the Arduino controller to display the status of the Humidity and temperature.

The concept in future can be enhanced by integrating GSM technology, such that whenever the Environment temperature. SMS is delivered to the concerned person regarding the status of the humidity and temperature measurement.

HIGHLIGHTS

  • Automatic humidity and temperature measurement
  • The project used Arduino
  • DHT11 sensor for humidity
  • continousaly display

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • LCD Display
  • DHT 11 sensor
  • Transformer

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle

RESOURCES
