INVISIBLE INFRARED SECURITY SYSTEM

Code 108 INVISIBLE INFRARED SECURITY SYSTEM

1,050.00 970.00

Generally, in security systems, PIR sensor is used, but these methods are costly. This project explains about IR transmitter and receiver based security system instead of PIR.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

1,220.00 1,120.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

1,050.00 970.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

900.00 750.00

Description

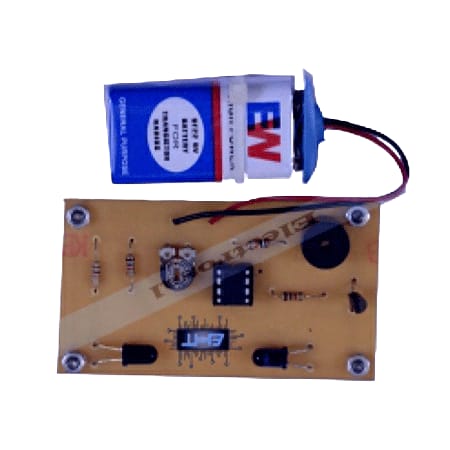

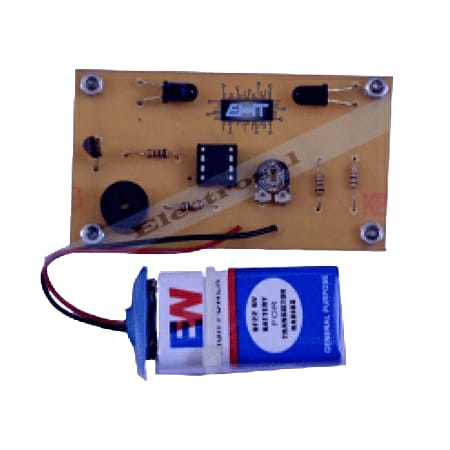

Generally, in security systems, PIR sensor is used, but these methods are costly. This project explains about IR transmitter and receiver based security system instead of PIR. The main principle of this project is to provide security. This saves the power and is low cost. This project consists the IR transmitter, receiver, transistor and buzzer. At transmitter section transmitter transmits the infrared rays and at the receiver section receiver receives these rays, when any human body comes in between these rays receiver detects and sends the signal to the transistor which makes the buzzer to alarm.

HIGHLIGHTS

  • The main principle of this project is to provide security
  • This project explains about IR transmitter and Receiver
  • After detecting the object buzzer will on

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Comparator
  • IR Sensor
  • Buzzer
  • 9V Battery
