ANDROID CONTROLLED HOME APPLIANCES

Code 4 ANDROID CONTROLLED HOME APPLIANCES

5.00 out of 5
(4 customer reviews)

6,900.00 5,100.00

The main objective of this project is to develop a home automation system with Android application controlled remote.The microcontroller used here is of 8051 family. The loads are interfaced to the microcontroller using Opto-isolators and TRIAC’s.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project, PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

7,800.00 5,400.00
If You Are Short On Time

Ready-made Kit
Ready-made Project, Circuit Diagram, Program, Report, Explanatory Video

6,900.00 5,100.00
For Institutions

Project Kit
PCB, Components, Circuit Diagram, Program, Report, Explanatory Video

5,500.00 4,800.00
For Documentation

Documentation
Circuit Diagram, Program, Report, Explanatory Video

1,900.00 1,100.00
For PCB

PCB
PCB, Circuit Diagram

2,100.00 1,200.00

Description

The main objective of this project is to develop a home automation system with Android application controlled remote. As technology is advancing so houses are also getting smarter. Modern houses are gradually shifting from conventional switches to centralized control system, involving wireless controlled switches. Presently, conventional wall switches located in different parts of the house makes it difficult for the user to go near them to operate. Even more it becomes more difficult for the elderly or physically handicapped people to do so. Remote controlled home automation system provides a simpler solution with Android application technology. Remote operation is achieved by any smart-phone/Tablet etc., with Android OS, upon a GUI (Graphical User Interface) based touch screen operation. In order to achieve this, Android application act as transmitter, which sends ON/OFF commands to the receiver where loads are connected. By operating the specified remote switch on the transmitter, the loads can be turned ON/OFF remotely through wireless technology. The microcontroller used here is of 8051 family. The loads are interfaced to the microcontroller using Opto-isolators and TRIAC’s.

HIGHLIGHTS

  • Android controller
  • Wireless controlled switches
  • Microcontroller is interfaced ULN2003

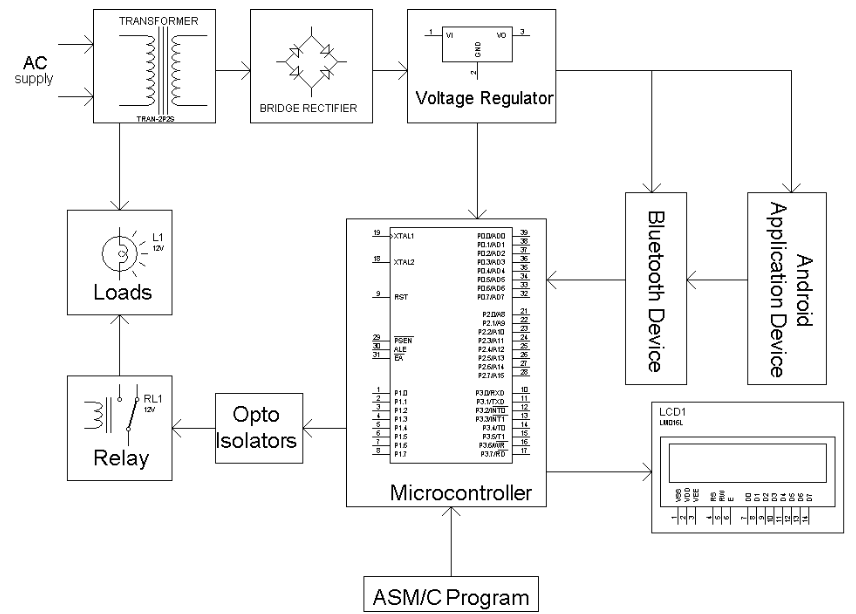

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Microcontroller
  • bluetooth
  • LCD Display
  • Relay
  • ULN2003
  • Transformer
  • Load

SOFTWARE REQUIREMENTS

  • keil
  • Eagle

RESOURCES
