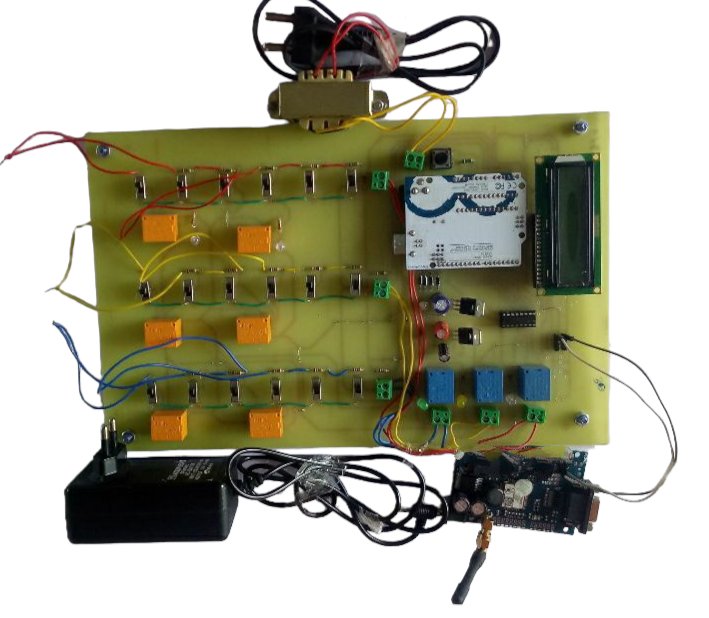

The objective of this project is to determine the distance of the underground cable fault from the base station in kilometers using an Arduino board. The underground cable system is a common practice followed in many urban areas. While a fault occurs for some reason, at that time the repairing process related to that particular cable is difficult due to not knowing the exact location of the cable fault. The proposed system is to find the exact location of the fault. And Open Cable Fault Detection Also.

The project uses the standard concept of Ohms law i.e., when a low DC voltage is applied at the feeder end through a series resistor (Cable lines), then-current would vary depending upon the location of the fault in the cable. In case there is a short circuit (Line to Ground), the voltage across series resistors changes accordingly, which is then fed to the inbuilt ADC of the Arduino board to develop precise digital data for display in kilometers.

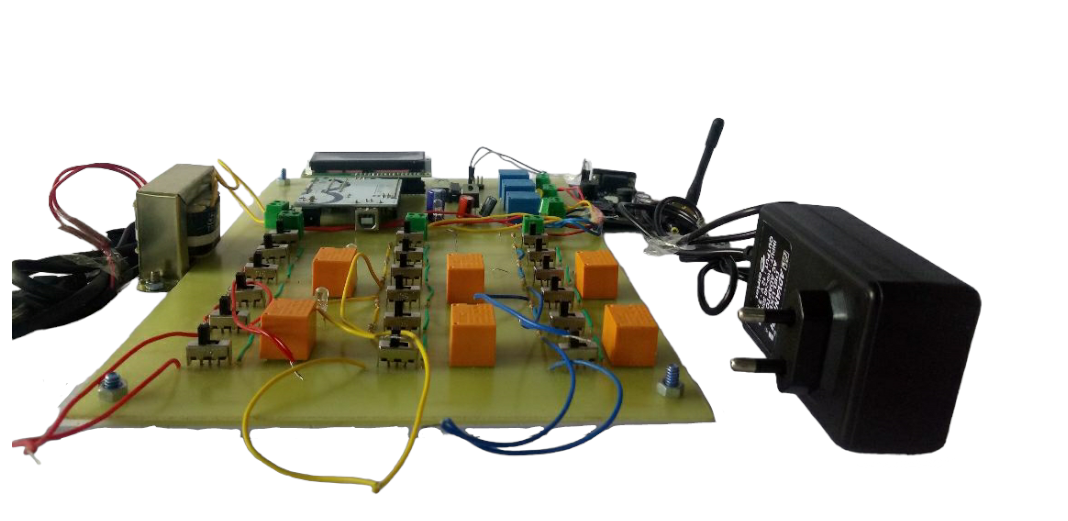

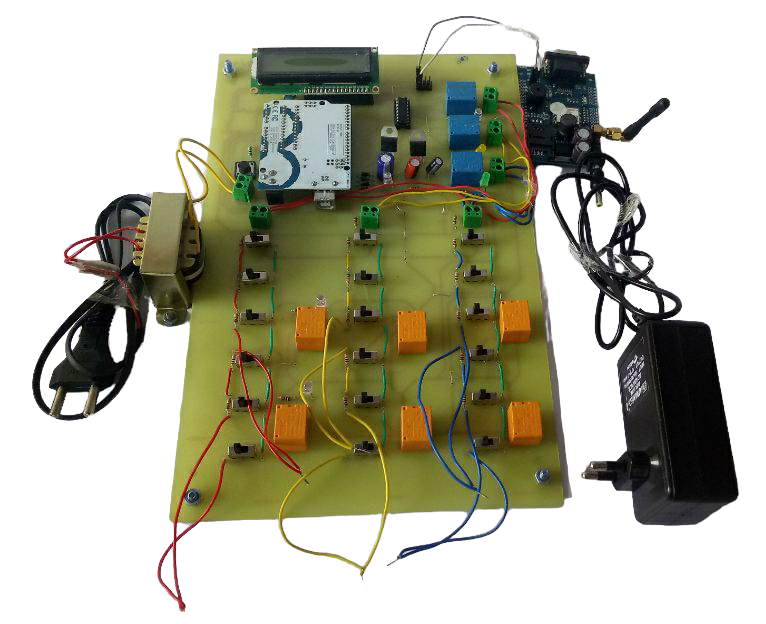

The project is assembled with a set of resistors representing cable length in KM’s and fault creation is made by a set of switches at every known KM to cross-check the accuracy of the same. The fault occurring at a particular distance and the respective phase is displayed on an LCD interfaced to the Arduino board.

Further this project can be enhanced by using a capacitor in an ac circuit to measure the impedance which can even locate the open-circuited cable, unlike the short-circuited fault only using resistors in DC circuit as followed in the above-proposed project.



Note

Underground line to ground and open cable fault detector over gsm Is the project of last year’s engineering project, BE final year engineering project. This project is used for BE last year electrical electronics department students. This project is GSM based projects

Underground line to ground and open cable fault detector over gsm is the project of a good Price for the electrical engineering project. Electronics engineering project it is a very comparative engineering project. It is a very good BE final year and diploma project.it is project for arduino based project idea for the electrical projects is a core electrical project.

The engineering projects give in the ELECTROSAL HI- TECH PVT.LTD. The best place for the degree and diploma final year engineering projects as well as for electrical students ‘and core electrical students and electronics  final year for the golden opportunity.

Underground line to ground and open cable fault detector over gsm is an easy project and  idea for the electrical core electrical electronics degree and diploma base students & 100% output is done.



HIGHLIGHTS

  • In this project, an Arduino is used  to detect Underground fault  from the base station
  • Exact fault location of the cable
  • The used standard concept of Ohms law

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino UNO
  • LCD
  • Relay
  • Relay driver
  • GSM
  • Switch
  • Transformer
  • Bridge rectifier
  • Regulator
  • Resistor is used as instead of cable

SOFTWARE REQUIREMENTS

  • Arduino IDE
  • Eagle
  • Proteus
