Water Level Controller using 8051 Microcontroller project will help in automatically controlling the water motor by sensing the water level in a tank. This project explains you how to detect and control the water level in an overhead tank or any other container. This system monitors the water level of the tank and automatically switches ON the motor whenever tank is empty. The motor is switched OFF when the overhead tank or container is FULL. Here, the water level of the tank is indicated on LCD (Liquid crystal Display). Using this system, we can avoid the overflow of the water

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

5,300.00 3,900.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

4,500.00 3,600.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

3,500.00 3,400.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

2,200.00 1,200.00
For PCB

PCB
PCB,Circuit Diagram

2,000.00 900.00

Description

Water Level Controller using 8051 Microcontroller project will help in automatically controlling the water motor by sensing the water level in a tank. This project explains you how to detect and control the water level in an overhead tank or any other container. This system monitors the water level of the tank and automatically switches ON the motor whenever tank is empty. The motor is switched OFF when the overhead tank or container is FULL. Here, the water level of the tank is indicated on LCD (Liquid crystal Display). Using this system, we can avoid the overflow of the water

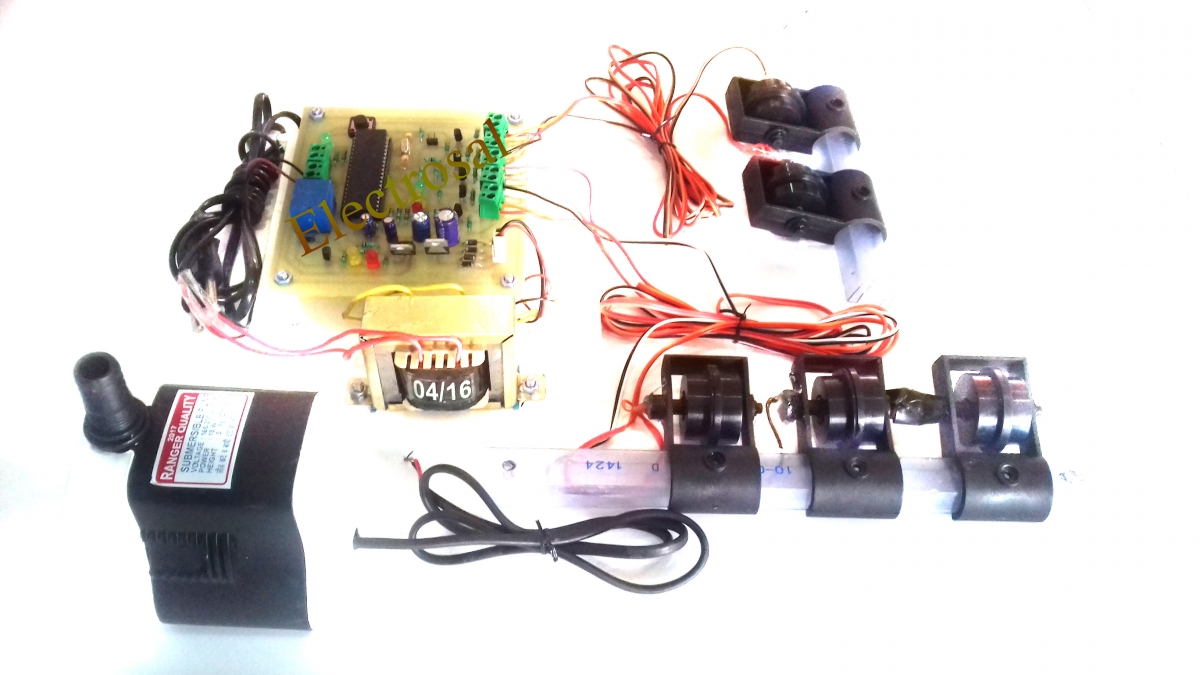

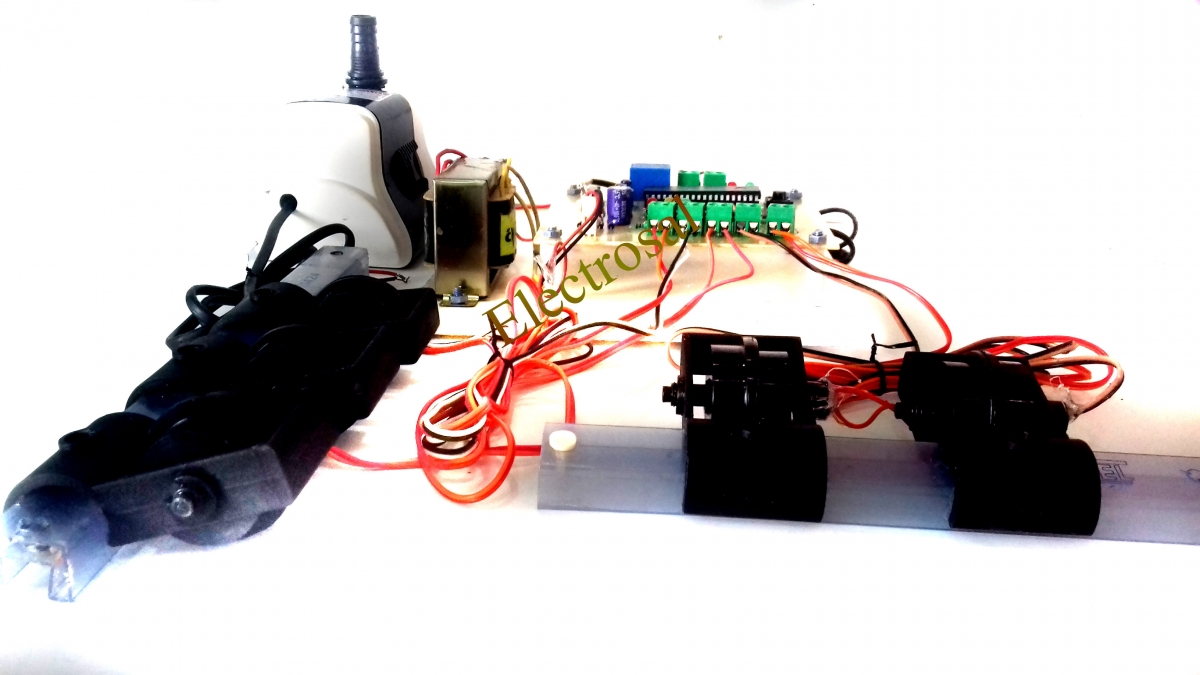

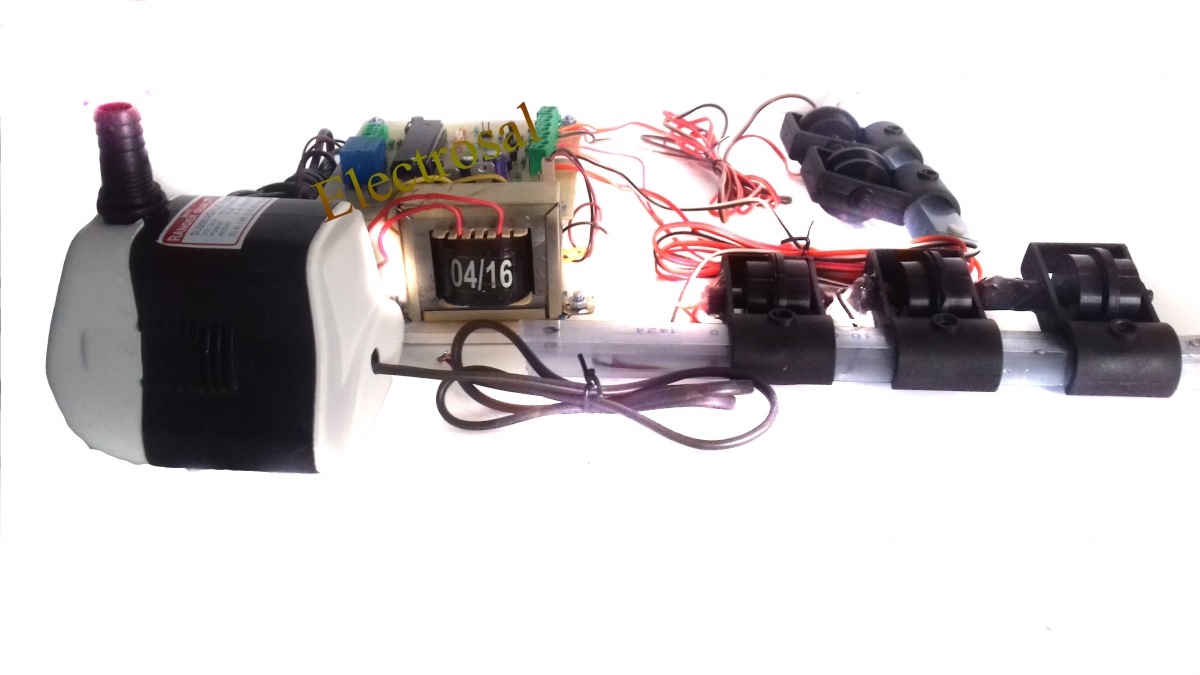

Here we are designing the circuit which is used to detect and control the water level automatically in overhead tank using 8051 microcontroller. In this system, water sensing can be done by using a set of five float sensor , which are placed at different levels in upper tank and lower tank. DC supply probe is placed at the base of the tank

This system mainly works on a principle that “water conducts electricity”. Five float sensor which are dipped into the tank will indicate the different water levels. Based on the outputs of these wires, microcontroller displays water level on LCD as well as controls the motor. Initially when the tank is empty, LCD will display the message LOW and motor runs automatically. When water level reaches to half level, now LCD displays HALF and still motor runs.

When the tank is full, LCD displays FULL and motor automatically stops. Again, the motor runs when water level in the tank becomes LOW.

HIGHLIGHTS

• The microcontroller of 8051 family is used.
• Float sensors are used to detects the water levels.
• Automatically controlling the water motor by sensing the water level in a tank
• Using this we can avoid the overflow of the water.
• LCD is to show the water levels of tanks.

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

• Microcontroller
• Water Pump
• Float sensors
• Water tanks
• Transformer
• LCD display

SOFTWARE REQUIREMENTS

• Keil
• Eagle
