COIN BASE WATER FILLING

Code 15 COIN BASE WATER FILLING

6,200.00 5,000.00

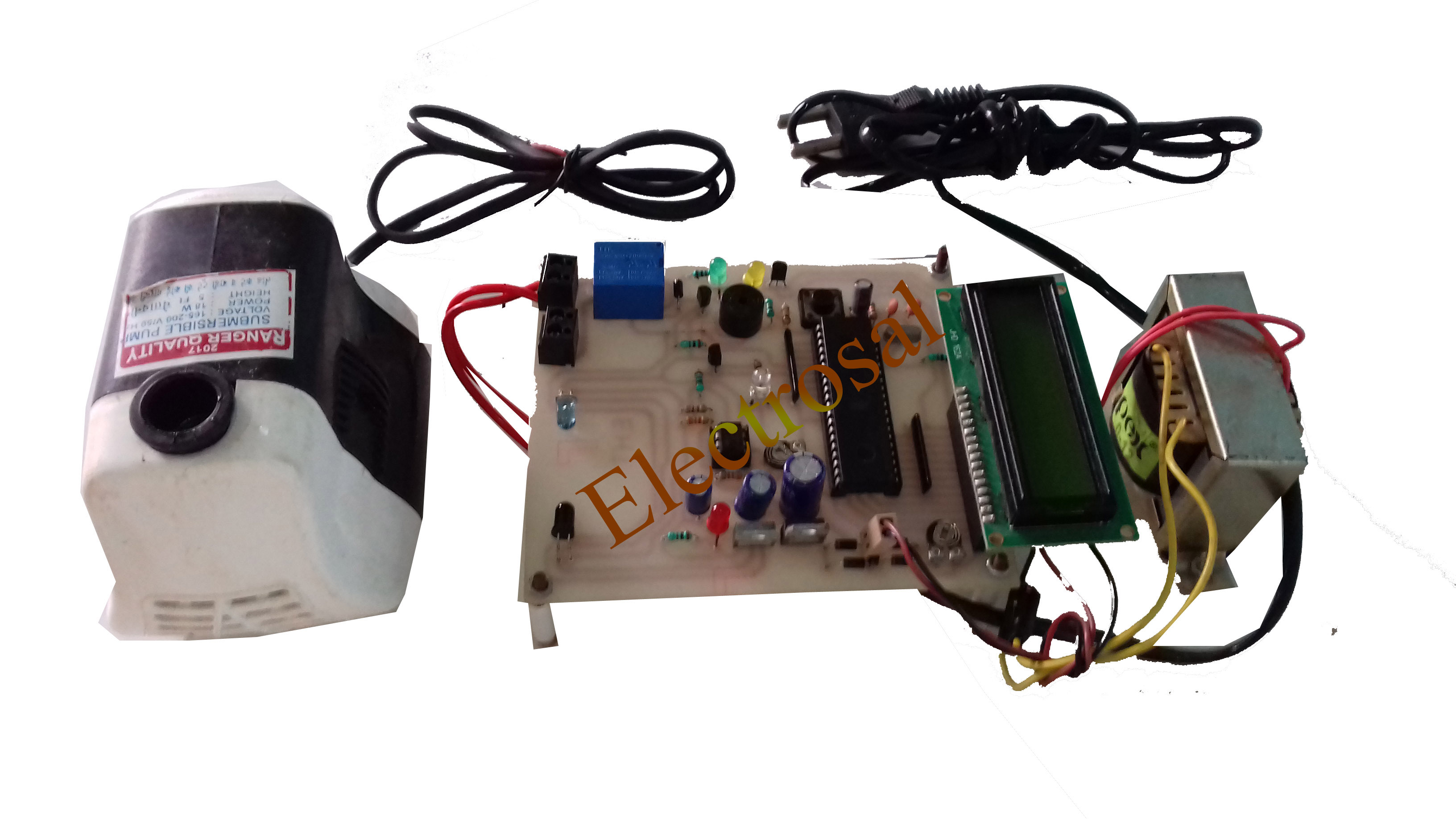

The main objective of this project is to develop Coin based water filling by using a microcontroller along with circuits of IR sensor which we putting the coin inside it and relay of the motor is automatically ON for particular time.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

7,900.00 5,400.00
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

6,200.00 5,000.00
For Institutions

Project Kit
PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

4,900.00 4,700.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

2,100.00 1,100.00
For PCB

PCB
PCB,Circuit Diagram

1,900.00 1,000.00

Description

The main objective of this project is to develop Coin based water filling by using a microcontroller along with circuits of IR sensor which we putting the coin inside it and relay of the motor is automatically ON for particular time.

An arrangement operates user putting their coin inside IR sensor which are placed opposite to each other Rx and Tx. while coin is putted in it the ray will break and comparator signal gives to microcontroller which interfaced to taking as input. As soon as coin inserted the relay will ON like this programmed by controller and at same time LCD display the time period of how much time relay will ON. This project is more helps for the passengers to develop and placed in bus stand, railway station etc. A standard power supply is used. A LCD displays the status.

HIGHLIGHTS

  • The main objective of this project is to develop Coin based water filling by using a microcontroller along with circuits of IR sensor
  • This project is more helps for the passengers to develop and placed in bus stand, railway station etc
  • A standard power supply is used
  • A LCD displays the status

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Microcontroller
  • IR sensor
  • LCD display
  • Comparator
  • Relay

SOFTWARE REQUIREMENTS

  • Eagle
  • Keil uVision4

RESOURCES
