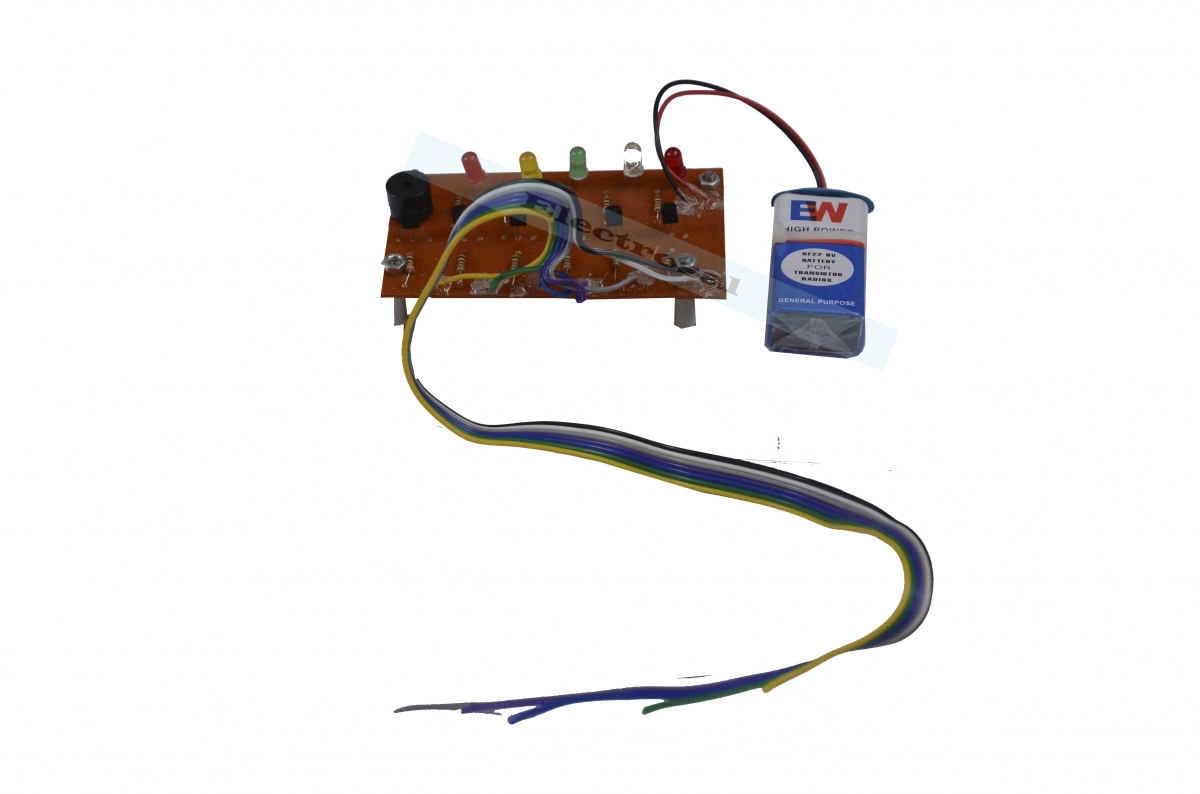

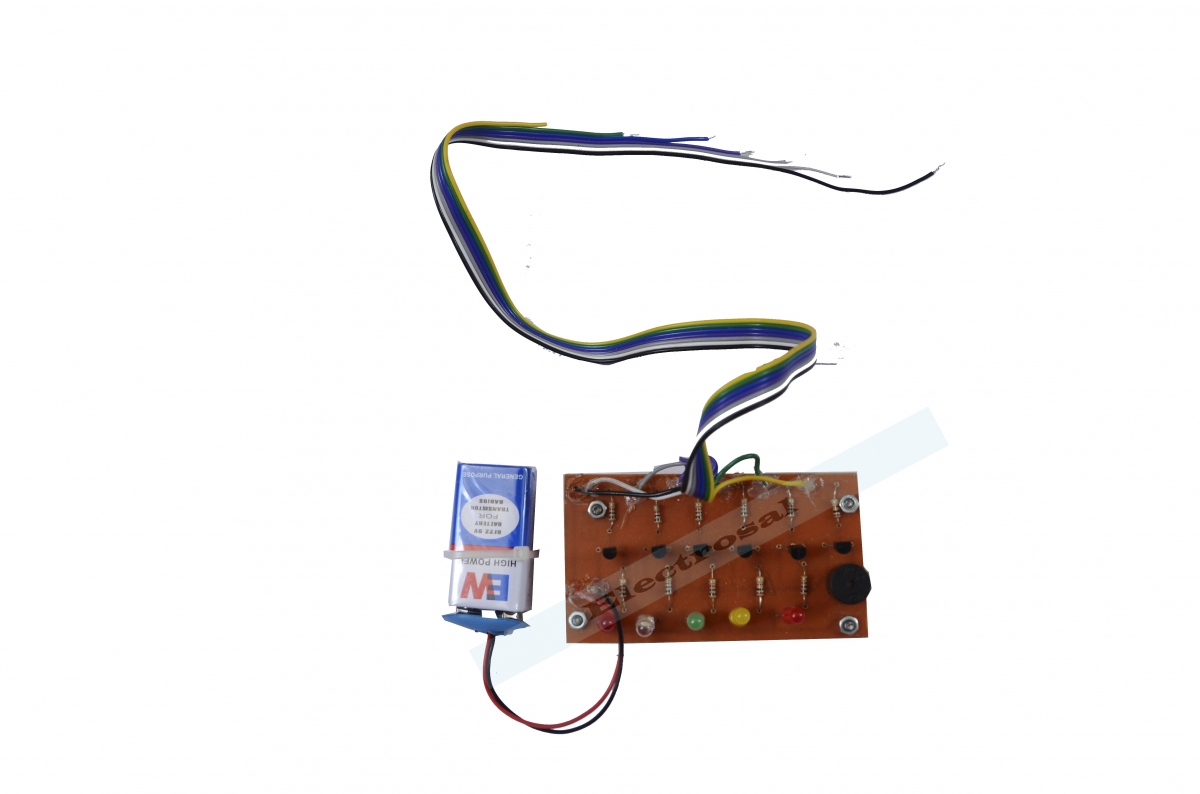

WATER LEVEL INDICATOR

Code 114 WATER LEVEL INDICATOR

625.00 450.00

indication of water level with the help of LED and trigger the BUZZER when tank is overflow.

Kits DescriptionPrice
If You Are An Enthusiast

Do It Yourself Kit
Ready-made Project,PCB,Components,Circuit Diagram,Program,Report,Explanatory Video

625.00 450.00

Description

Water tank overflow liquid level sensor alarm circuit is a simple electronics project for school students. It produces a beep sound when the water tank is completely filled by water. The advantage of this project circuit is that it saves water from accidental over flow. So this circuit always prevents the wastage of water when you forget to switch OFF the motor pump set after switch ON.

HIGHLIGHTS

  • This is miniproject for schools
  • Liquid level sensor
  • When tank is full buzzer will ON

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Transistor
  • LEDs
  • Wire as sensor
  • Buzzer
  • 9v Battery

SOFTWARE REQUIREMENTS

  • Eagle

RESOURCES
