The project is designed to develop a dish positioning system which can be operated by using a conventional android phone. The main application of using a dish is to receive signal from satellites and other broadcasting sources. In order to position the dish to the exact angle to receive the maximum signal of a particular frequency, it needs to be adjusted manually

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty 9,000.00 6,500.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 8,000.00 5,200.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 7,000.00 4,100.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio and video call support. 3,000.00 2,000.00

Description

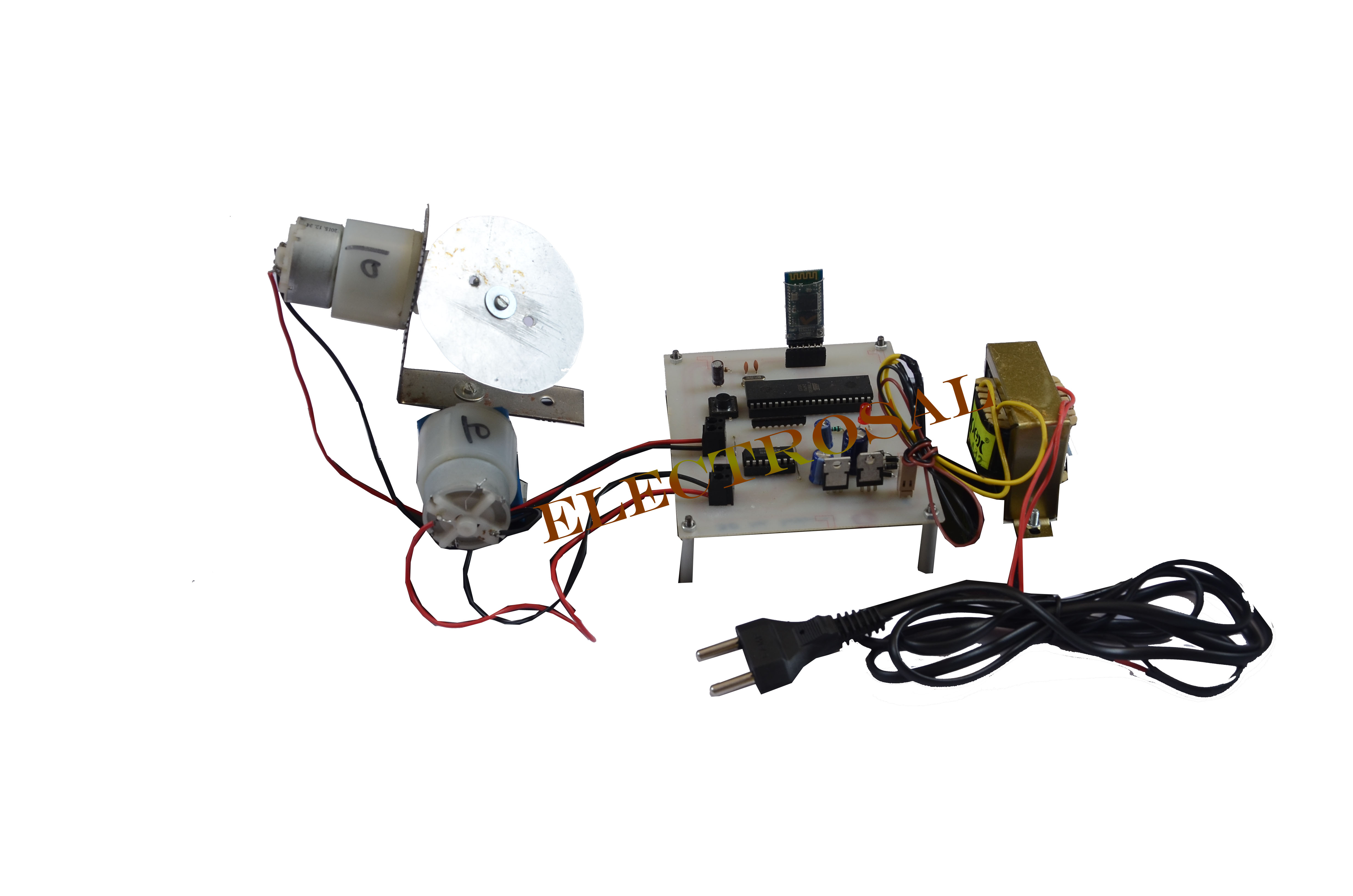

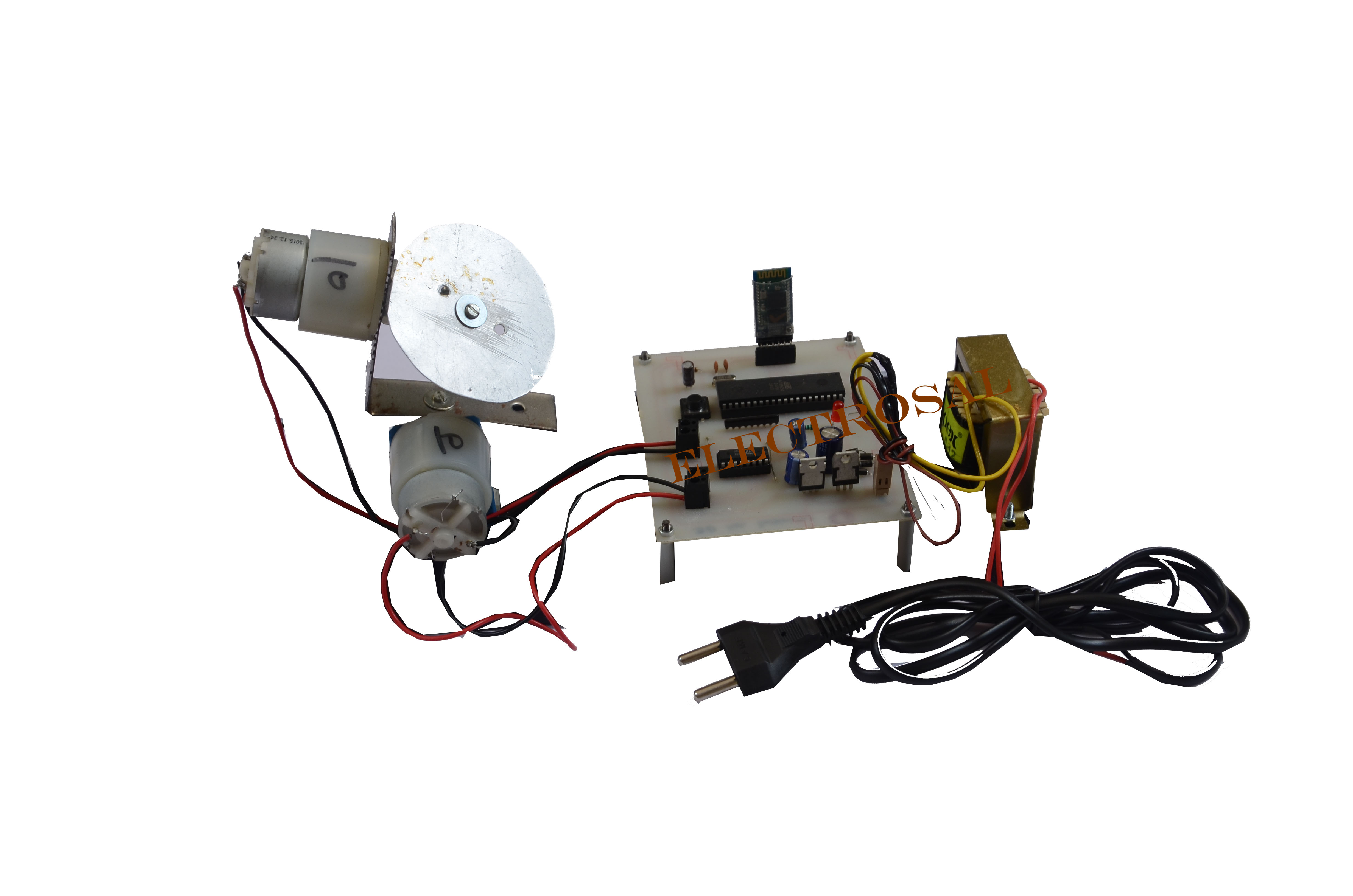

The project is designed to develop a dish positioning system which can be operated by using a conventional android phone. The main application of using a dish is to receive signal from satellites and other broadcasting sources. In order to position the dish to the exact angle to receive the maximum signal of a particular frequency, it needs to be adjusted manually.

In order to overcome the difficulty of adjusting manually, this proposed system helps in adjusting the position of the dish through a android app. This system consists of two motors that enable the dish to move both in horizontal and vertical direction. The Android phone acts as a transmitter whose data is received by an bluetooth which is interfaced to a microcontroller of 8051 family. The phone sends coded data to the receiver whose output is then sent to the microcontroller. The microcontroller sends control signals to the motors through an interface IC also known as motor driver IC. The code followed by the android phone is a standard code. This code is used in the program to recognize the input code from the android app for the controller to develop appropriate output signal for the motor driver IC.

HIGHLIGHTS

  • Dish position is operated by Android phone
  • 8051 microcontroller is used to control the dish
  • Bluetooth device is used to receive the data
  • Motors are controlled through L293D ic

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • 8051 microcontroller
  • L293D Motor driver IC
  • DC Motor
  • Bluetooth Device
  • Dish

SOFTWARE REQUIREMENTS

  • keil
  • Eagle
