LINE FOLLOWING ROBOT USING ARDUINO

Code 204 LINE FOLLOWING ROBOT USING ARDUINO

4.45 out of 5
(11 customer reviews)

6,200.00 4,800.00

Ready-made Project

If You Are Short On Time
6,200.00 4,800.00
Add to cart - OR - See more options

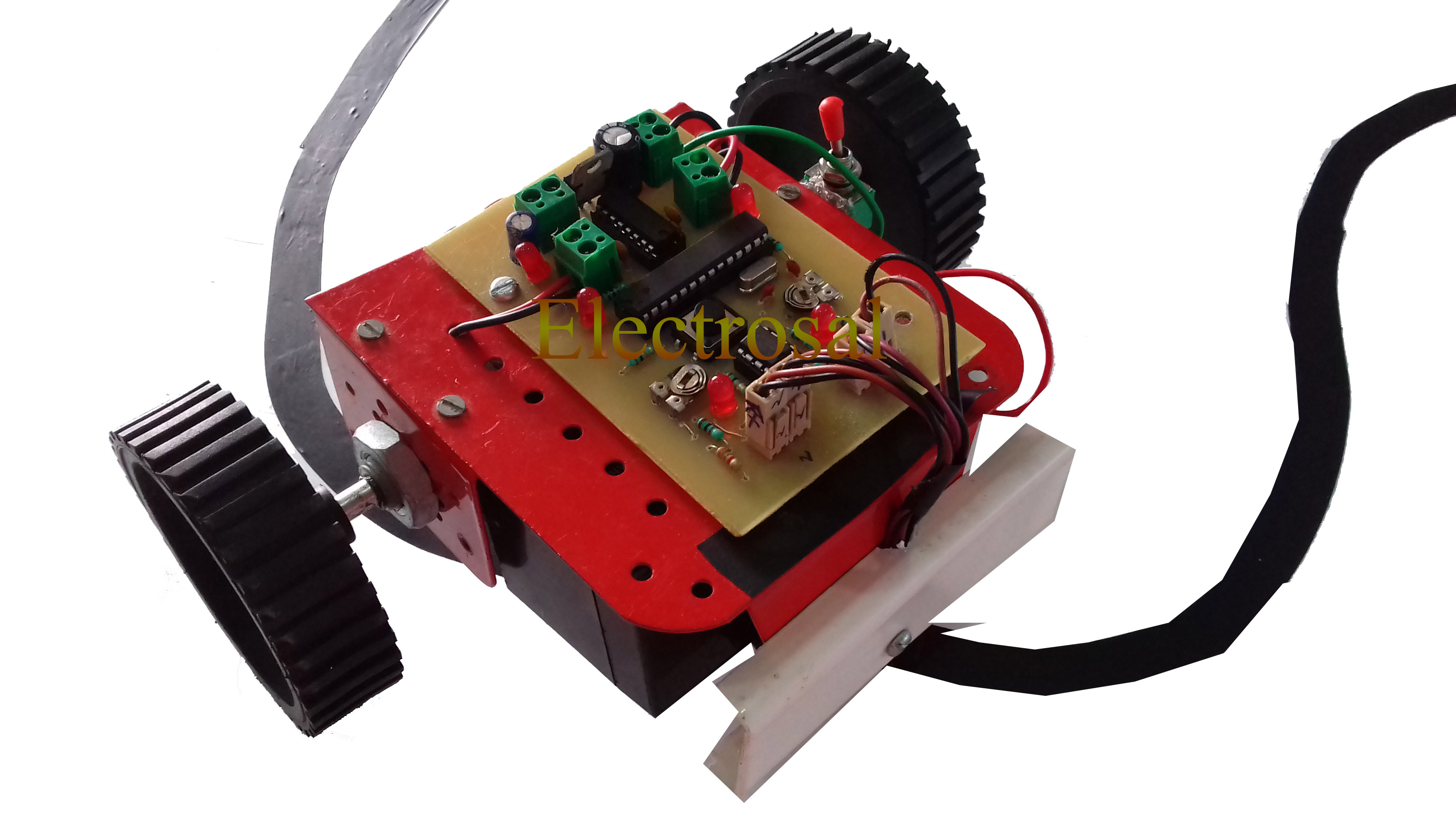

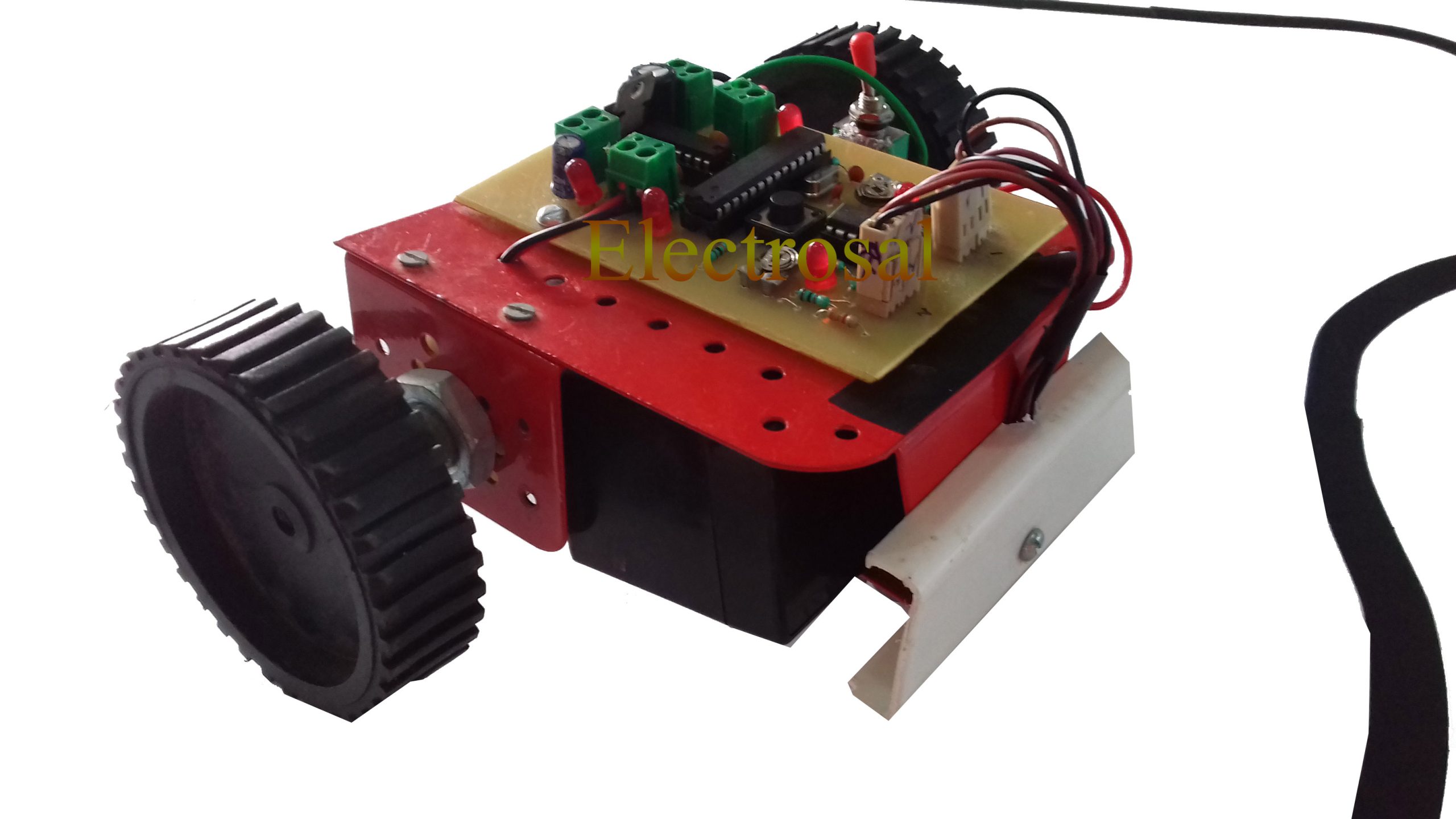

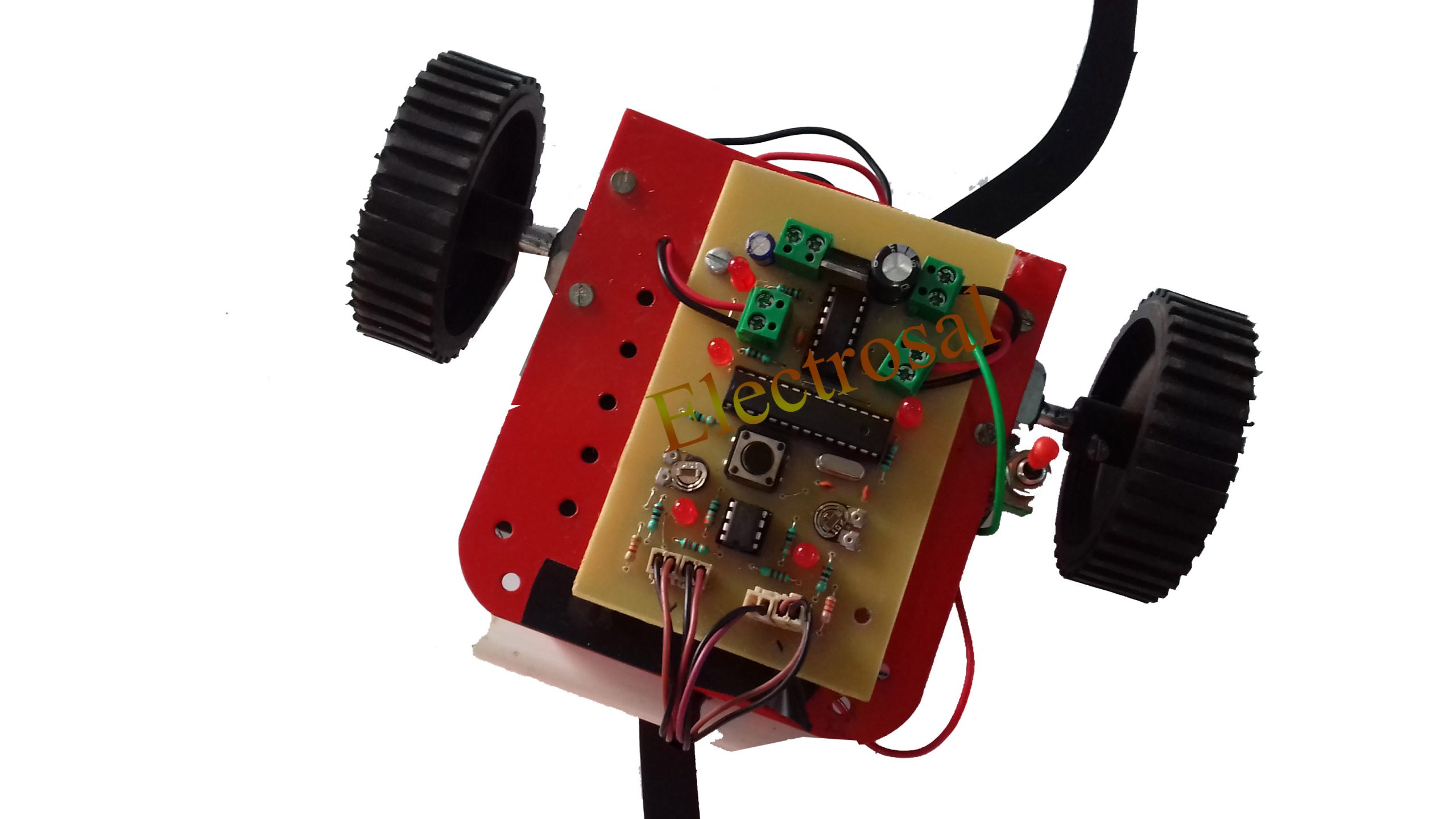

The project is designed to develop a robotic vehicle that follows a specific path. This project uses an Arduino development Board. A pair of photo sensors comprising IR transmitter and photo diode is interfaced to the Arduino to detect a specified path for its movement.

Kits DescriptionPrice
Ready-made Project + DIY Project Kit
If You Are An Enthusiast
Ready-made project kit, One more extra bare PCB solderable components for extra PCB, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, and One year warranty. 7,800.00 6,000.00
Ready-made Project
If You Are Short On Time
Ready-made project kit - All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, One year warranty. 6,200.00 4,800.00
DIY Project Kit
For Institutions
DIY KIT - Bare PCB, solderable components, external all components, All documentation (Report, PPT, Circuit diagram, Program code, explanatory video ), Audio and video call support, 5,100.00 3,800.00
For Documentation
(Report, PPT, Circuit diagram, Program code, Explanatory Video). Audio and video call support. 3,000.00 2,000.00

Description

The project is designed to develop a robotic vehicle that follows a specific path. This project uses an Arduino development Board. A pair of photo sensors comprising IR transmitter and photo diode is interfaced to the Arduino to detect a specified path for its movement.

Line follower robot is a useful robot that is meant for use in ware houses, industries, and stores etc, wherein it follows a dedicated path. This proposed system of a line following robot fulfils the desired functionality and demonstrates the working of it. It uses a pair of photo sensors, comprising of one IR transmitter and a photo diode in each side. It guides the robot to follow a specified path by giving appropriate signal to the Arduino Board. Two DC motors are interfaced to the Arduino board through a motor-driver IC. Input signals are given to the arduino from the sensors, and then the controller takes the appropriate action according to the program written in it and drives motors as desired.

Furthermore, the project can be enhanced by adding more advanced sensors to it. This will add more features to the existing project. For example, we can use ultrasonic sensors for detecting any obstacles in front of the robot and to take appropriate action.

HIGHLIGHTS

  • This project uses an Arduino development Board
  • A pair of photo sensors comprising IR transmitter and photo diode is interfaced to the Arduino
  • Comparator is used for signal
  • Input signals are given to the arduino from the sensors

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Arduino
  • Motor Driver
  • DC motor
  • Battery
  • comparator
  • IR Sensor
  • chassy
  • Wheel

SOFTWARE REQUIREMENTS

  • Arduino
  • Eagle

RESOURCES
