SOIL MOISTURE BASED AUTO IRRIGATION WITH MANUAL CONTROL BY GSM

Code 85 SOIL MOISTURE BASED AUTO IRRIGATION WITH MANUAL CONTROL BY GSM

5,900.00 4,900.00

Kits DescriptionPrice
Do It Yourself Kit
If You Are An Enthusiast

Ready-made project, One more PCB, Solderable components, Circuit Diagram, PPT, Program, Report, Explanatory Video, voice and video call support, One year warranty

6,900.00 5,400.00
Ready-made Kit
If You Are Short On Time

Ready-made Project, Circuit Diagram, Program, PPT, Report, Explanatory Video, voice and video call support, One year warranty

5,900.00 4,900.00
Project Kit
For Institutions
PCB, Components, Circuit Diagram, PPT, Program, Report, Explanatory Video 5,400.00 4,400.00
For Documentation
Circuit Diagram, Program, Report, Powerpoint presentation, Explanatory Video 1,500.00 1,000.00
For PCB
PCB, Circuit Diagram 1,500.00 1,000.00

Description

The main objective of this project is to sense the moisture condition of soil through a sensing arrangement to switch a motor pump automatically off when the soil is in wet condition. Avoiding human intervention is the biggest advantage of this project and we want to know the condition of the motor make a call to the saved numbers, gsm module replay SMS through the status of the motor.

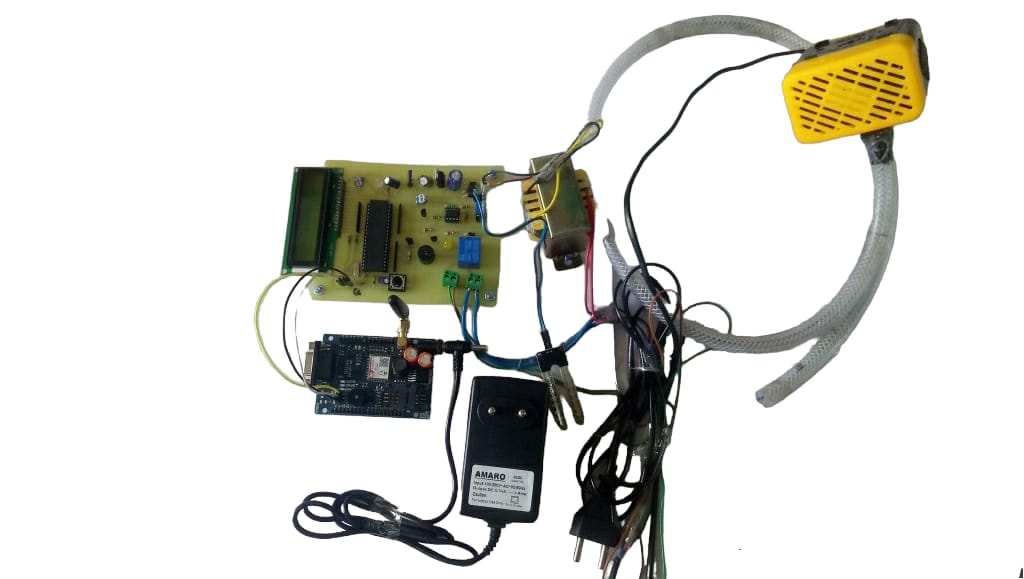

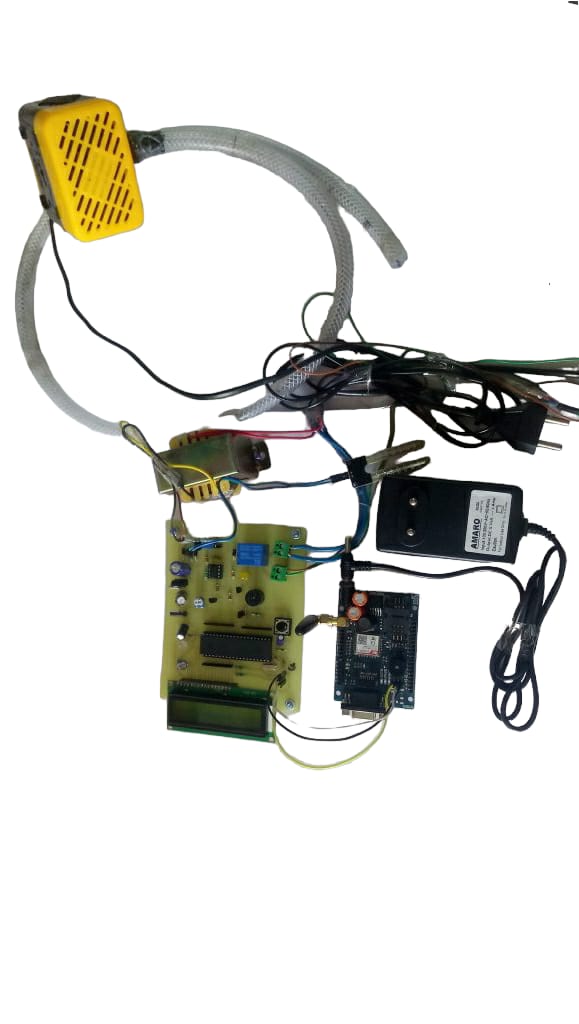

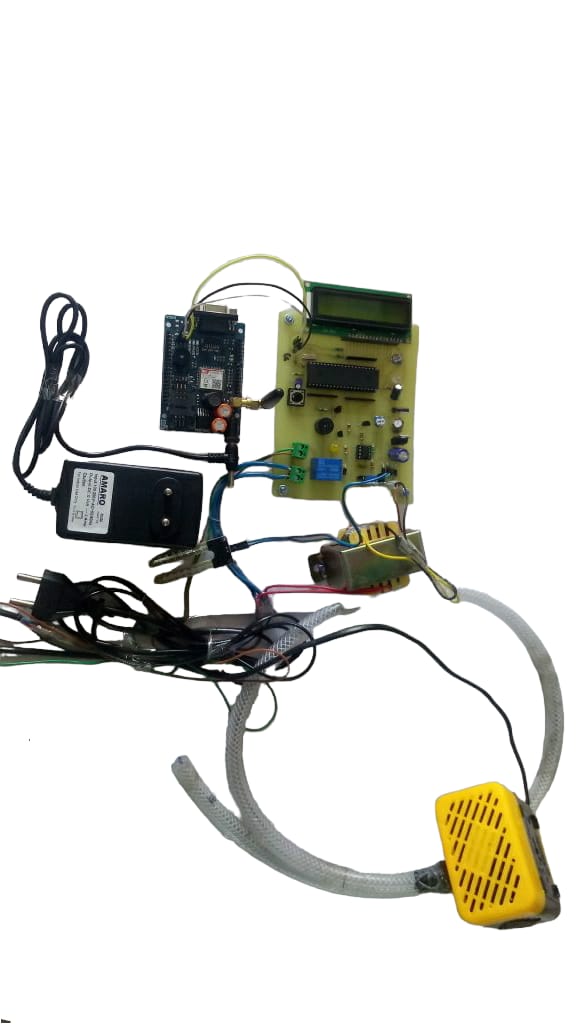

The proposed system uses an 8051 microcontroller which is programmed to receive an input signal from the soil by the soil moisture sensor. This is prepared by using two stiff metallic rods or a special PCB with 2 separate tracks inserted into the field. The connections from that are interfaced to the control unit. The proposed system uses an op-amp as a comparator which is interfaced between the sensing arrangement and microcontroller. If the microcontroller receives any signal from the moisture sensor, then it produces an output to drive a relay for operating the water pump. An LCD is also interfaced to the microcontroller to display the status of the soil and water pump.

We can be enhanced by integrating GSM technology and controller, such that whenever the water pump switches on/off, an SMS is delivered to the concerned person regarding the status of the pump. And the projects work in two modes. Auto mode and Manual mode. In manual mode person can send the SMS to GSM to turn on or turn off the pump without checking the moisture of the soil.

HIGHLIGHTS

  • Advanced project
  • SMS alert
  • Useful to farmers
  • Controlling of the pump through sms

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Microcontroller
  • Soilmoisture sensor
  • LCD
  • GSM
  • Water pump

SOFTWARE REQUIREMENTS

  • Keil
  • EAGLE

RESOURCES
