SCROLLING LED DISPLAY OR NOTICE BOARD USING ANDROID PHONE

Code 257 SCROLLING LED DISPLAY OR NOTICE BOARD USING ANDROID PHONE

2.00 out of 5
(1 customer review)

22,000.00 16,000.00

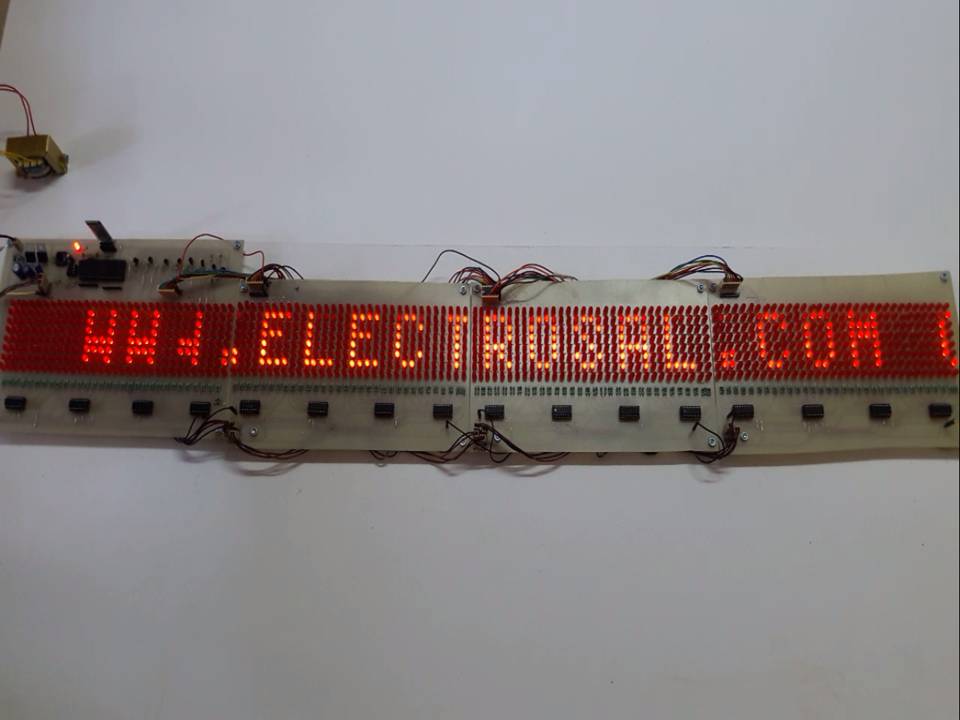

This project is designed to develop a micro-controlled based scrolling message led matrix display for notice board. It can also be used to display latest information anywhere such as colleges, shops, railway stations and other places. The information is transmitted using an android phone.

Kits DescriptionPrice
If You Are Short On Time

Ready-made Kit
Ready-made Project,Circuit Diagram,Program,Report,Explanatory Video

22,000.00 16,000.00
For Documentation

Documentation
Circuit diagram,Program,Report,Explanatory Video

2,500.00 2,000.00

Description

This project is designed to develop a micro-controlled based scrolling message led matrix display for notice board. It can also be used to display latest information anywhere such as colleges, shops, railway stations and other places. The information is transmitted using an android phone.

Traditionally notice board is all about sticking information, but sticking various notices day-to-day is a difficult process. A person is required separately to take care of this notice board. This system displays notices through an android phone on notice boards.

This system can be implemented in many important places where latest information can be displayed. For example if implemented in colleges all information for students can be displayed. It is very convenient for students and college management to display any information. This system can also be implemented in railway stations and airports to display information regarding the train and flight timings. This system reduces the wastage of papers. The information is received by Bluetooth, which is interfaced to 8051 family microcontroller wirelessly connected to android phone. An external memory connected to the microcontroller stores the information. LED matrix is connected to the microcontroller to display the message in a continuous scrolling manner.

HIGHLIGHTS

  • This project is designed to develop a micro-controlled based scrolling message led matrix display for notice board
  • It can also be used to display latest information anywhere such as colleges, shops, railway stations and other places
  • This system displays notices through an android phone on notice boards
  • This system reduces the wastage of papers

BLOCK DIAGRAM

HARDWARE REQUIREMENTS

  • Micro-controller
  • Led matrix display
  • Transformer
  • Voltage regulator circuit
  • Youtube device

SOFTWARE REQUIREMENTS

  • Eagle
  • Keil uVision4

RESOURCES
